Chapter 2 Inspection Programming
2-196
⑧ Extension range setting tool : Specify an extension range of the pixel selected by the
pen or eraser tool using the slide bar.
The extension range can be specified in a range of 0-20.
⑨ Clear button : Deletes all color settings from the color table.
⑩ Undo button : Cancels the edited data of the color table.
⑪ Unlock button : Unlocks and returns the settings of reference level model to the
initial condition.
⑫ Base plane displaying combo box : Displays added base planes. BasePlane 0 is
the original base plane, and the others are the added base planes.
⑬ Base plane adding button : Use this button when selecting an area or a
component on the base plane partitioned to add base planes.
⑭ Base plane deleting button : Deletes the selected base plane.
⑮ Base plane per-block partitioning setup button : When component block unit is
already set up by the inspection program, if this button is clicked,
the base plane is partitioned on a component block unit basis in the
overall FOV.
⑯ Base plane per-component partitioning setup button : Partitions the base plane
on a component basis in the overall FOV.

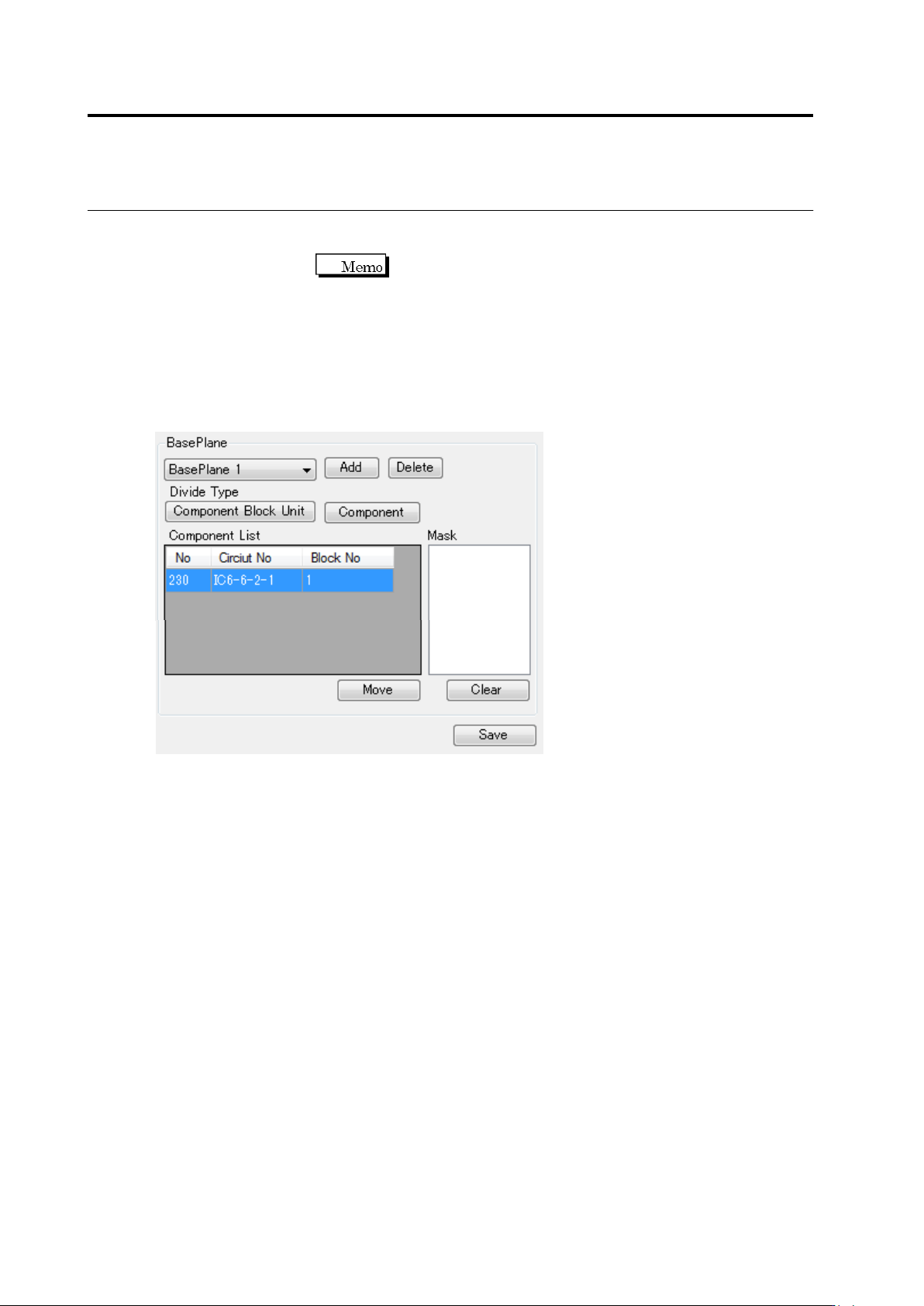

⑰ Component list : Displays the components belonging to the base plane selected by
[BasePlane] in the selected inspection FOV.
⑱ Mask list : Displays the masks of the base plane selected by [BasePlane] in
the selected inspection FOV.
⑫
⑬
⑭
⑮
⑯
⑰
⑱
⑲
⑳
㉑
2.16 Managing PCB Images
2-197
⑲ Component transfer button : Moves the components registered in base plane A to
base plane B.
⑳ Delete all masks button : Deletes all masks.
To delete a mask, select the mask on the Mask list, and
click the [Delete] button.
㉑ Save button : Saves the reference level model which has been edited
completely.

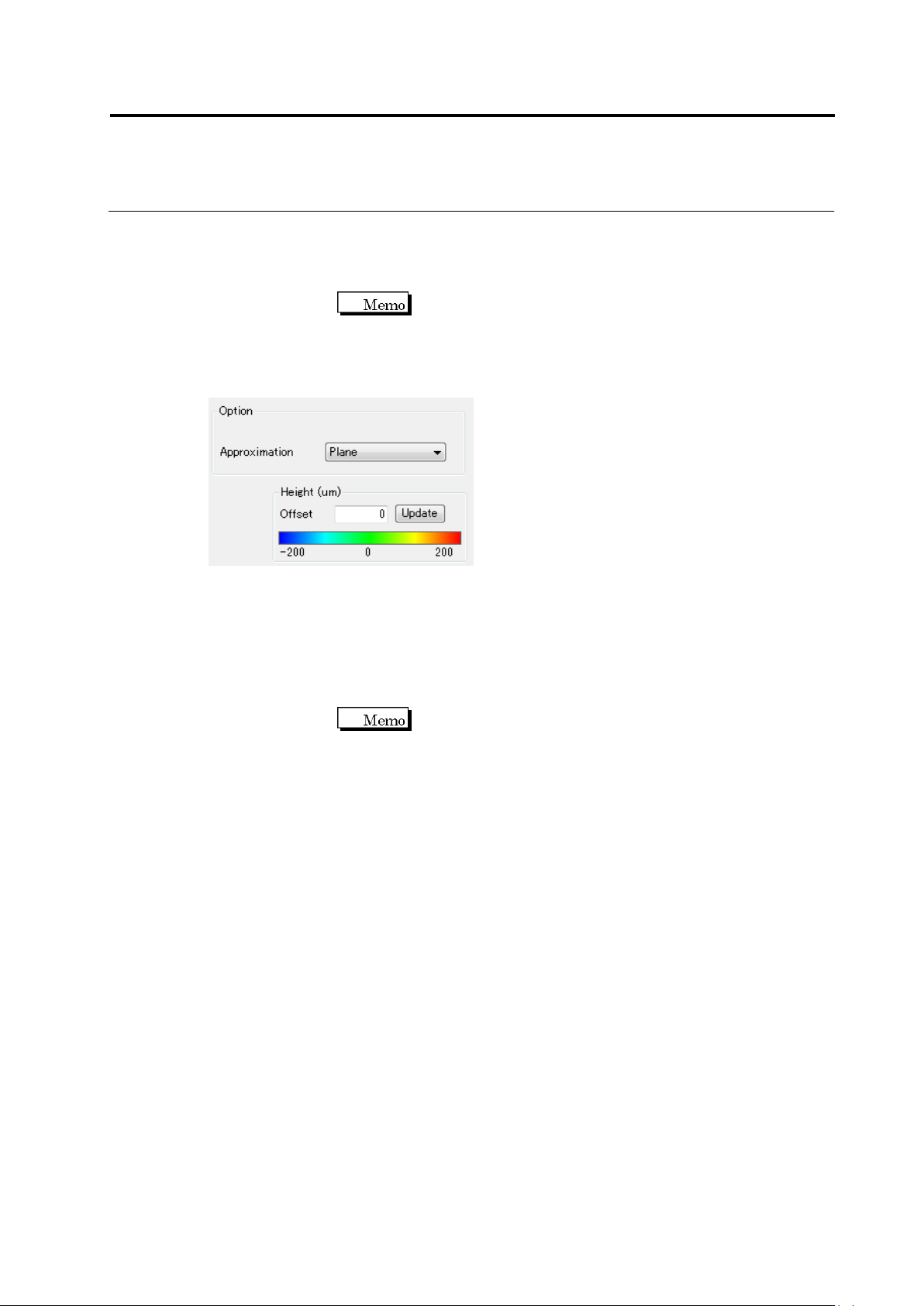

㉒ Base plane approximation method selecting combo box : Specify a method to
approximate the base plane as plane approximation (Plane) or
curved face approximation (Curve2).
㉓ Change offset button : By entering a numerical number and clicking the [Update] button,
the offset value can be changed.
The offset value is zero by default.
㉒
㉓
Chapter 2 Inspection Programming
2-198

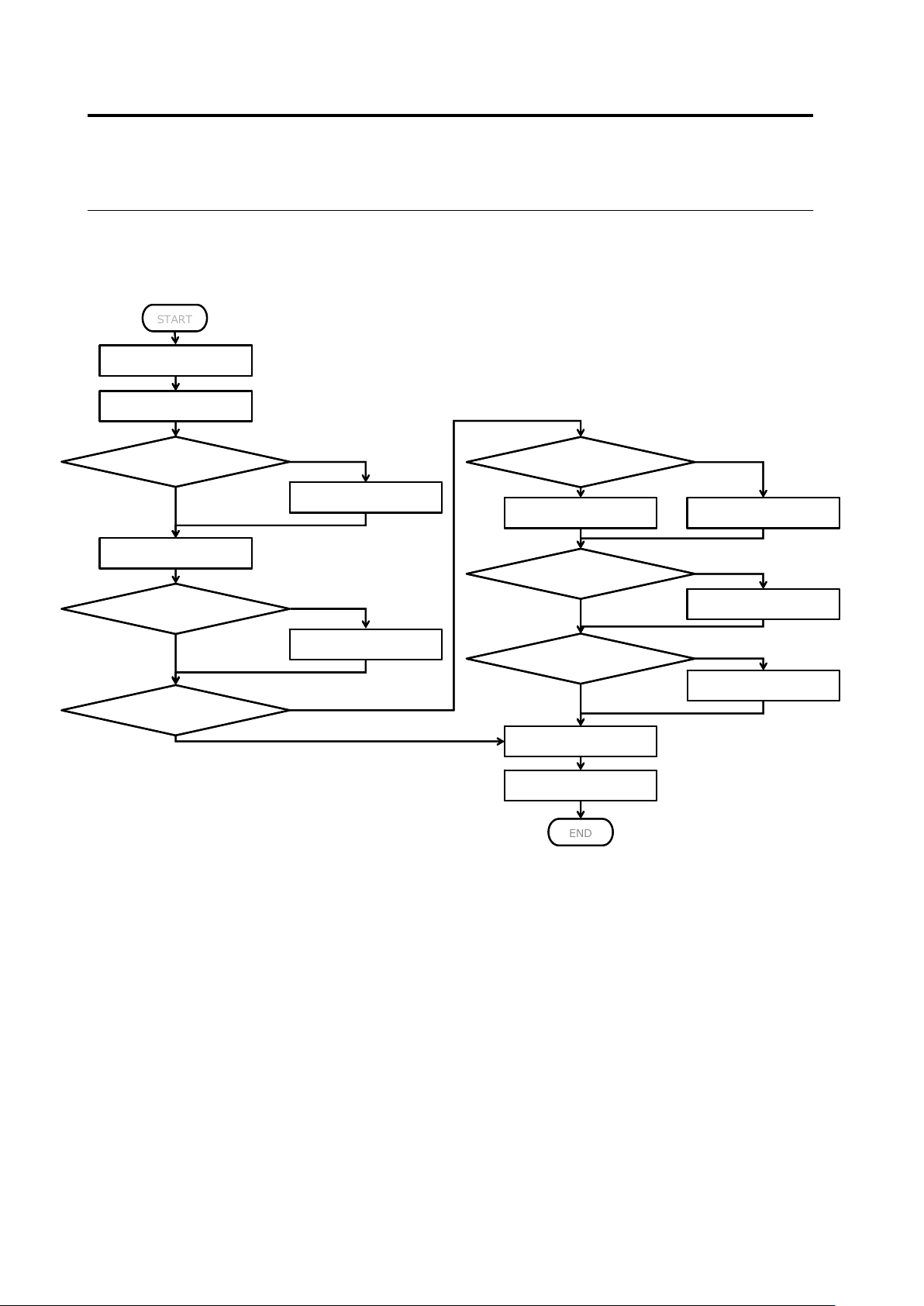

■ Description on reference level model editing flowchart
The flowchart of editing of a reference level model is as follows:
■ Various detailed editing methods of reference level models
This section explains various detailed editing methods of reference level models based on the
above flowchart.
<Confirmation of base plane binarization and color table editing function>
If the base plane has not been binarized, use the ⑪ Unlock button to unlock the plane, and
use the ⑥-⑩ tools to edit the color table of the base plane.
START
Start ref. level editing tool
Select “Binarized” from [View]
pulldown or press keyboard F2
button
Has base plane been
binarized?
(displayed in cyan blue)
Edit color table of PCB
Select “Height” from [View]
pulldown or press keyboard F3
button
Is base plane displayed
in green?
Yes
No
Set masking of base plane
Is PCB face of overall
FOV displayed in green?
Yes
No
Yes
No
Click [Component Block Unit] to
partition base plane automatically
Has component block
unit of insp. program
been set?
Partition base plane manually
Flexible PCB?
(PCB face is bent)
Set curbed face approximation
Click [Component] to partition
base plane for each component
Is CPB face of overll
FOV displayed in green?
END
To save edited data, click
[Save]
Exit base plane editing tool
No
Yes
No
Yes
Yes
No
START
Start ref. level editing tool
Select “Binarized” from [View]
pulldown or press keyboard F2
button
Has base plane been
binarized?
(displayed in cyan blue)
Edit color table of PCB
Select “Height” from [View]
pulldown or press keyboard F3
button
Is base plane displayed
in green?
Yes
No
Set masking of base plane
Is PCB face of overall
FOV displayed in green?
Yes
No
Yes
No
Click [Component Block Unit] to
partition base plane automatically
Has component block
unit of insp. program
been set?
Partition base plane manually
Flexible PCB?
(PCB face is bent)
Set curved face approximation
Click [Component] to partition
base plane for each component
Is CPB face of overll
FOV displayed in green?
END
To save edited data, click
[Save]
Exit base plane editing tool
No
Yes
No
Yes
Yes
No
