Chapter 2 Inspection Programming
2-218

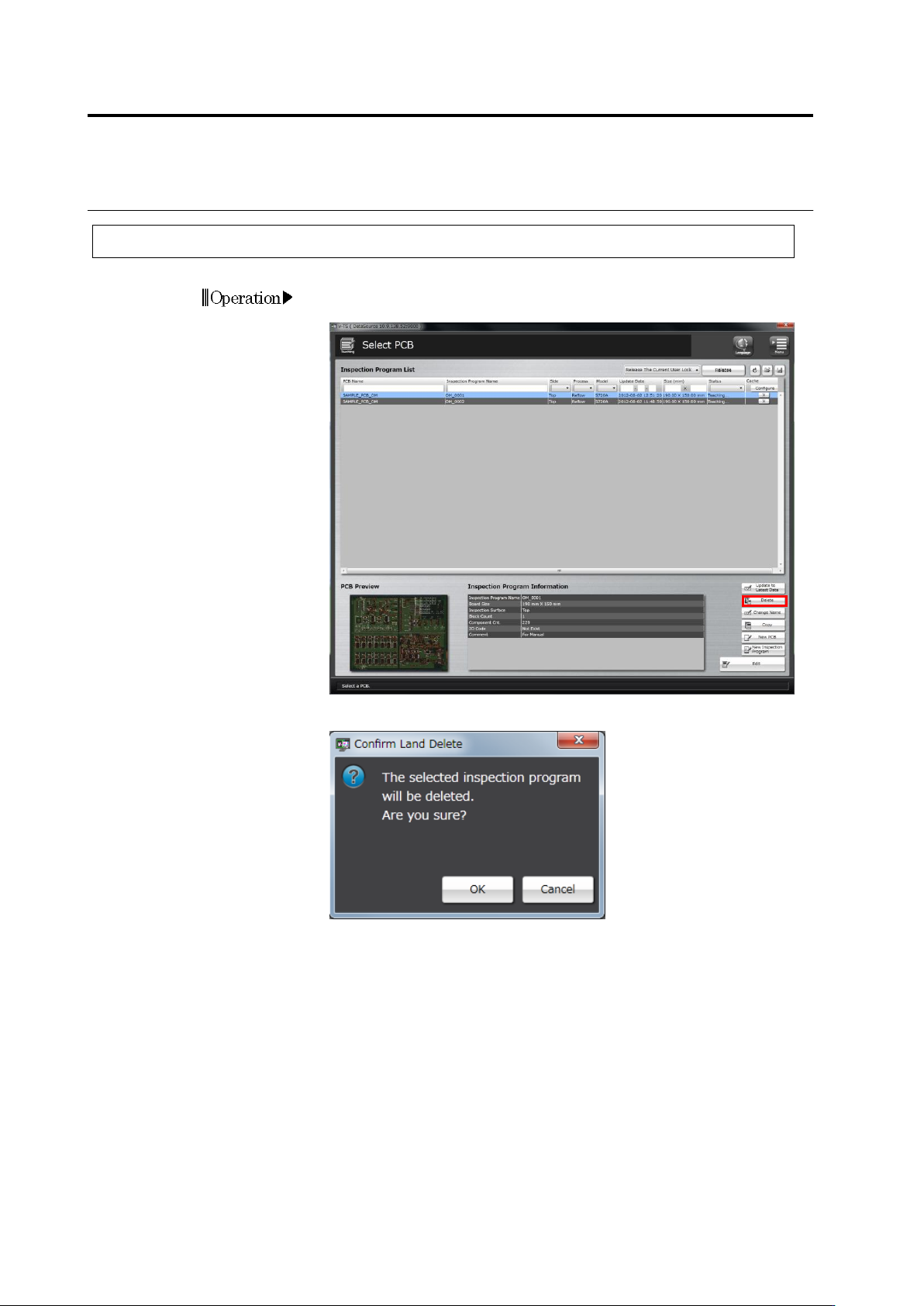

2.18.4 Deleting an Inspection Program
1.
Select the inspection program to delete in the Select PCB screen
and click [Delete].
2.
The following confirmation dialog appears. Click [OK].
・Click [Cancel] to abort the deletion and close the dialog.
Operation
2.17 Mass-Produced PCB Image
2-219
2.18.5 Renaming an Inspection Program
1.
Select the inspection program to rename in the Select PCB screen
and click [Change Name].
2.
The Inspection PCB Information Setting screen is displayed.
Change the name of the program and click [OK].
Only the PCB name, presence of bare board, adjust block position
individually, inspection program name, inspection surface, auto size
adjustment for each land and comment can be edited.
Refer to "2.2 Creating a New Inspection Program" for the details on
individual input items.
Operation
書式変更: フォント : 9 pt
削除
: Creating a New Inspection Program
Chapter 2 Inspection Programming
2-220
2.18.6 Copying an Inspection Program
1.
Select the inspection program to copy in the Select PCB screen
and click [Copy].
The inspection program is copied and copied program is displayed
in the Inspection Program List.
Copying an inspection program requires a certain amount of time.
The copied program is named with the default name "The name of
the original inspection program_COPY".
To rename the program name, refer to "2.18.5 Renaming an
Inspection Program".
If an inspection program with oblique images is copied, oblique
images are deleted. The program can be used as an inspection PCB
only including direct view images.
Since oblique images cannot be diverted depending on the
component location, they are deleted when an inspection program is
copied.
Operation
