Chapter 2 Inspecti on Programm ing 2- 90 W hen the circuit of the mass production image (not registered) o n t he m ass production image registration scree n, an icon for indi vidual setting is displ ayed on the list. Fo…
2.6 Specifying Inspection Criteria
2-89
3.
Click the checkbox for the window for individual setting.
is displayed in the box and the window is locked.
The editing of the inspection criteria for the locked window is
enabled. At the same time, the editing of the same window is
disabled on the Component Number Criteria Setting screen.
is also displayed for the locked window in the Inspection
Component List.
To unlock the window, click in the Window Composition list.
The lock release confirmation dialog appears. Click [OK] to cancel
the individual setting and unlock the window. The global criteria for
the component number is applied for the unlocked window.
4.
Specify inspection criteria for the window.
Refer to Step 4 of "2.6.1 Criteria Setting (Product No.)" for the
setting procedure.
Chapter 2 Inspection Programming
2-90
When the circuit of the mass production image (not registered) on the mass production
image registration screen, an icon for individual setting is displayed on the list.
For this, mass production images (not registered) in which individual setting is applied
can be judged with the simulation for mass production images. The circuit in which
individual inspection criteria are configured as shown below is displayed as individual
icons on the inspection component list and thumbnail screen.

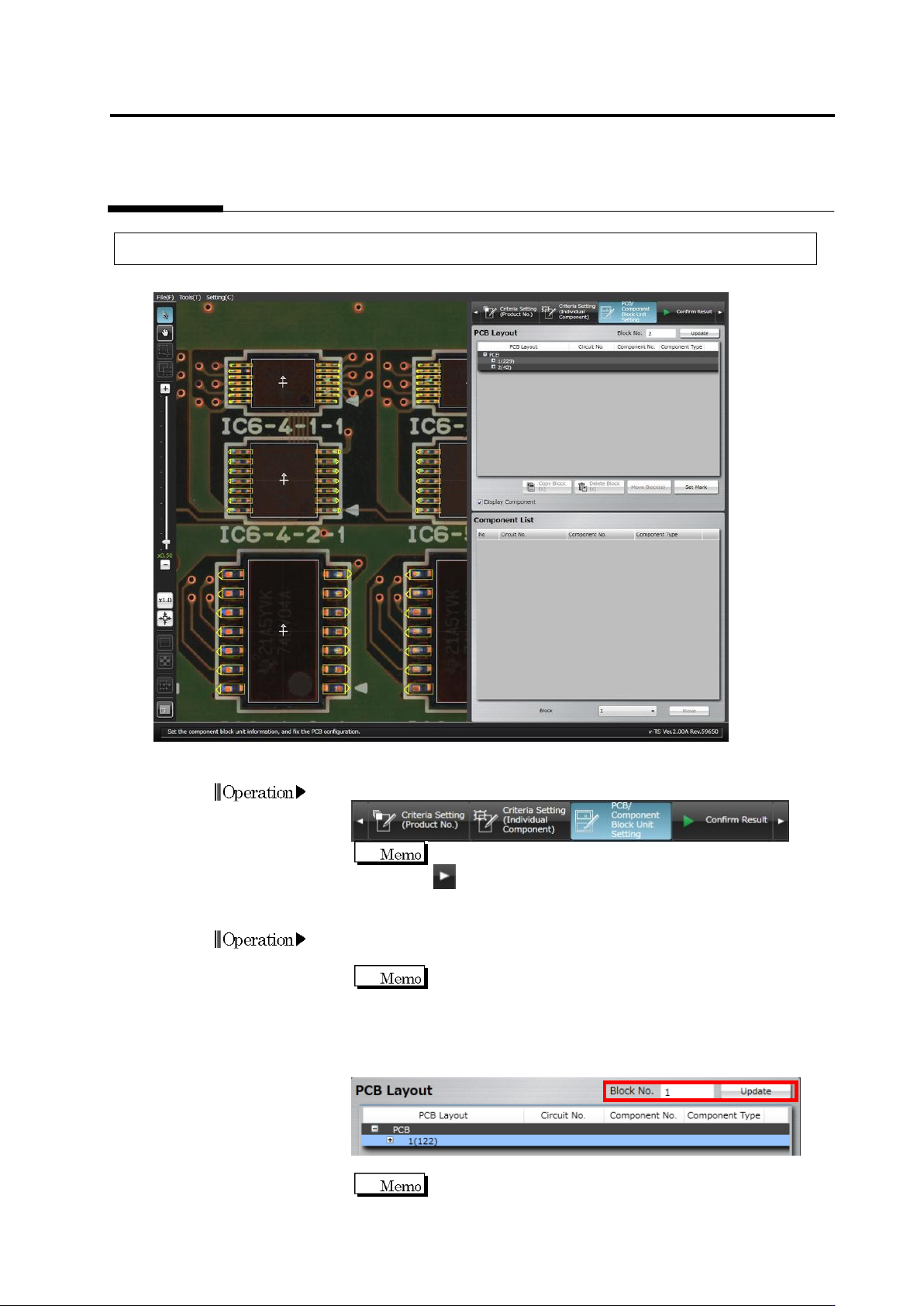

2.7 PCB/Component Block Unit Setting
2-91
2.7 PCB/Component Block Unit Setting
2.7.1 Component Block Unit Setting
This section describes the copying, deleting, moving and dividing of a Component Block Unit.
Open the Component Block Unit Setting Screen
1.
Click to select the [PCB/Component Block Unit Setting] tab.
If the [PCB/Component Block Unit Setting] tab is hidden, click
at the right to display it.
Edit a Component Block Unit Number
1.
Click to select the target Component Block Unit in the PCB Layout
list.
Find the corresponding "Component Block Unit No. (The
number of components)" in the PCB Layout column.
2.
Enter a new Component Block Unit number and click [Update].
The Component Block Unit number is changed and the PCB Layout
display is updated.
A Component Block Unit number can be entered within 16
alphanumeric characters (Symbols cannot be used).
