2.3 Opening an Inspection Program
2-33
2.3 Opening an Inspection Program
This section explains the procedure to open an inspection program.
1.
Select a desired inspection program in the Inspection Program List
in the Select PCB screen.
When an inspection program is selected, information on the
inspection program is displayed.
The content of the inspection program is as follows:
■ Information on the PCB and inspection program is displayed.
Inspection program name, PCB size, inspection side, and
comment
■ Details of the inspection program is displayed.
Number of component block units, number of components,
presence/absence of 2D code, types and numbers of captured
images, number of inspection fields of view including direct view
and oblique view
Number of projections from projectors and estimated inspection
time (sec.)
2.
Click [Edit] to open the program.
The following message appears if the PCB image is not captured yet.
Capture the bare and inspection PCB images with the PCB
inspection system and click [Edit] again.
Operation
Chapter 2 Inspection Programming
2-34
The inspection programs of the same PCB as the inspection program
that other user is editing are all locked and displayed in khaki. You cannot
edit, delete, change name or copy on the locked inspection programs and
you cannot create a new inspection program.
When you select a locked inspection program, only the [New
PCB] button is enabled.
If you cannot release the lock even though the inspection program is
not opened by any user, select a release method from the list box at
the upper right, and then click [Release].
When selecting [Utility Screen] - [Component No. Library
Management] - [Import], lock might not be released although
the inspection program is not being opened by any users.
・ Release The Current User Lock
Releases the program locked by the user currently in operation.
・ Release All Locks
Releases the lock of all locked programs.

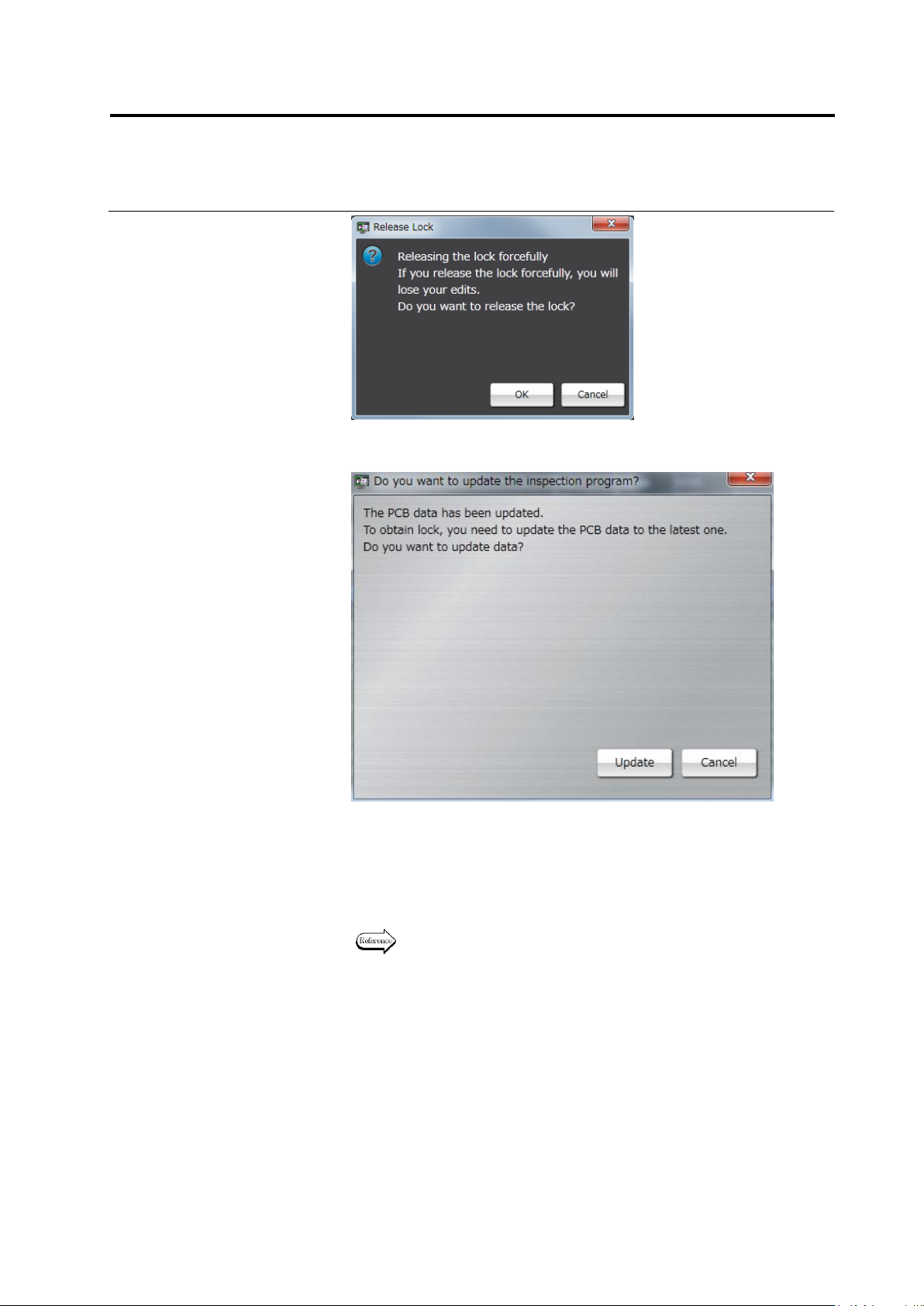

The lock release confirmation dialog appears. Make sure that no
user is in the process of editing the inspection program and click
[OK].
2.3 Opening an Inspection Program
2-35
The update confirmation dialog appears if the inspection program is
updated by other user or captured PCB image is added.
When you click [Update], the PCB data will be automatically updated
and you can lock the inspection program and edit the content.
If you want to retain the backup of the inspection program before
update, click [Cancel] to close the dialog and save the inspection
program.
By clicking [Cancel], the screen moves to the page which was
opened just before that.
Refer to 2.18.1 Saving an Inspection Program” for the procedure to
save the inspection program..
If the component number data has been updated at the time of
editing other inspection program, the component number update
confirmation dialog will appear before you click [Edit] to open an
inspection program.
