2.1 Basics of Teaching
2-13
<Name>
Name
Description
Component Number
Group
A group of component numbers. In a component number group,
windows, inspection criteria, and characteristic parameters are shared.
Component No.
Refer to 2.1.1 “Basic Knowledge of Teaching.”
Component Type
Refer to 2.1.1 “Basic Knowledge of Teaching.”
Component Size
Size of the component body window
Judgment
Judgment result when the PCB test is performed
No. of components
No. of components on the PCB
No. of electrodes
No. of electrodes of the component
Description
Text to explain the characteristics of the component number is kept.

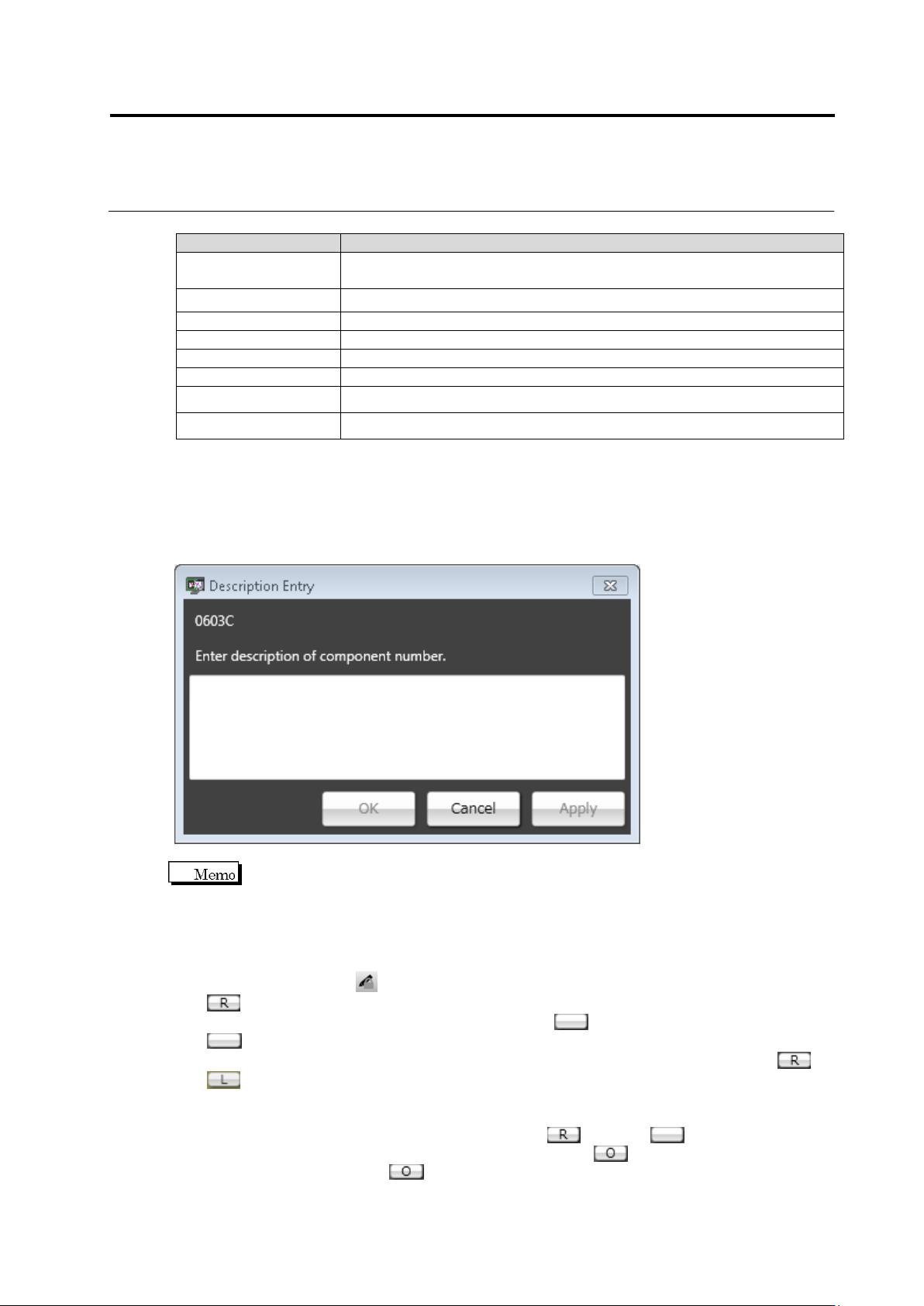

Double click the exlanation of component number. The [Explanation Entry] dialog box is
displayed.
Text can be entered by clicking the text box.
[OK]: When clicked, the edited content is applied and the dialog box is closed.
[Cancel]: When clicked, the edited content is dicarded and the dialog box is closed.
[Apply]: When clicked, the edited content is applied and the dialog box is kept open.
With the [Description Entry] dialog box open, the selected component number can be
switched on the component number list.
<Component Number Lock>
To avoid data loss due to simultaneous update of component numbers, the software performs
exclusive control using the component number lock function.
The buttons shown in the row represent the lock status of individual component numbers.
・ … Not locked. Read only. Editing is disabled.
When you click the button, it changes to and editing is enabled.
・ … Locked. Editing is enabled but other users cannot edit.
When you click the button, the lock will be released and the button changes to .
・ … Locked by other user (Locked).
Editing is disabled until another user releases the lock.
When you click [Lock All], the component numbers of become at once.

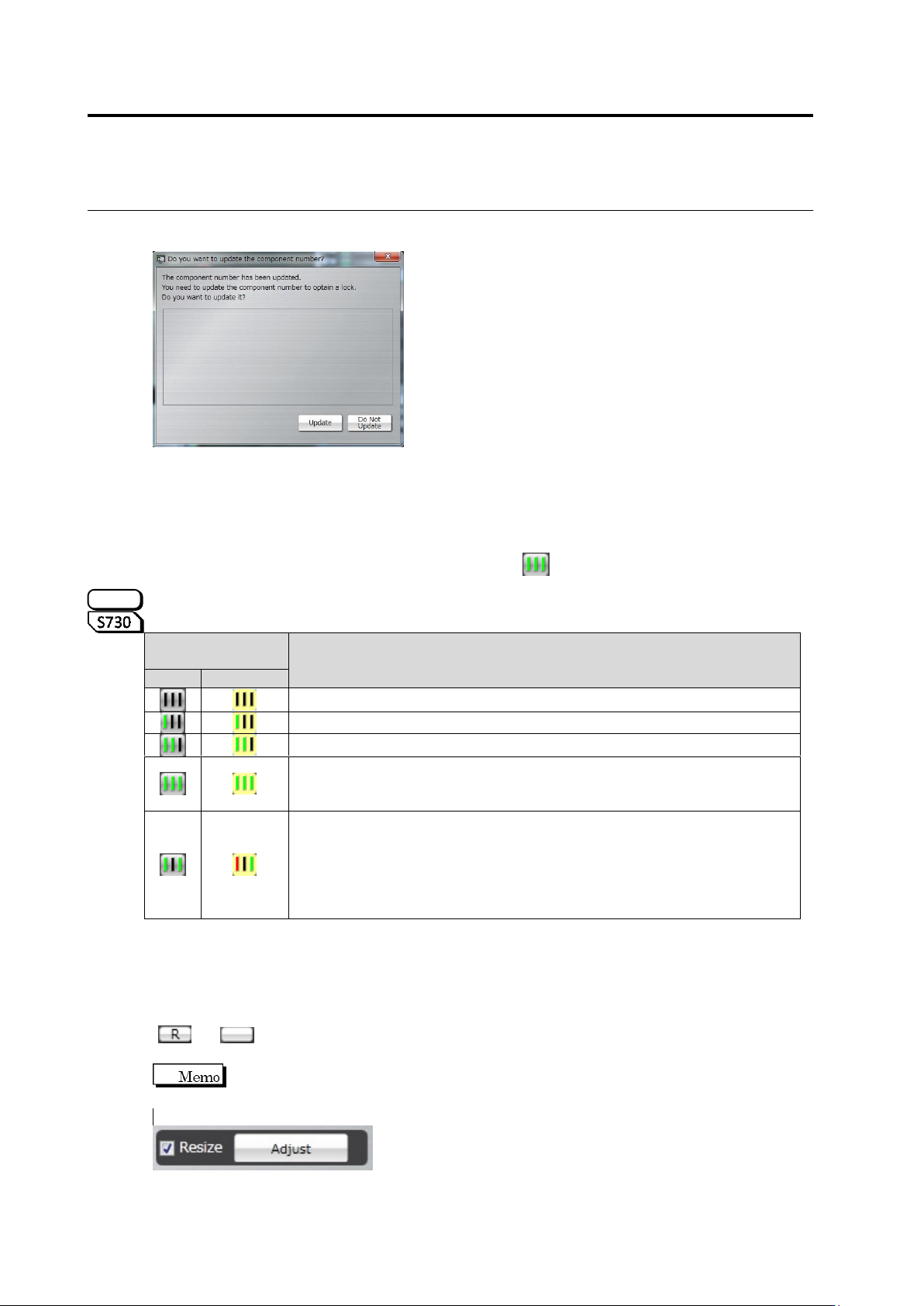

When the component number information is not up to date, is displaied and the update
check is performed by clicking .
To update the component number to the latest one, click [Update].
Chapter 2 Inspection Programming
2-14
When you select [Do Not Update], the corresponding component number cannot be edited.
If an application program is shut down forcibly, it might occur that the lock state is not released
correctly and component numbers cannot be edited. In this case, select [Tool] – [Forced Lock
Release] on the menu bar, and select a lock release target to release the lock.
<Progress Signal>
The lighting status of the three signal bars shown in row in the Component Number List
represents the teaching status of individual product numbers.
The component numbers for oblique inspection are displayed in a different background color.
The left signal bar lights up in red if the oblique image is not captured yet.
Oblique
Inspection
Product Number Teaching Progress
No
Yes
The component number information is not specified yet
A sample component for the component number has been registered
All component windows have been automatically adjusted
All component windows have been automatically adjusted, the model
has been registered, and component and electrode heights have been
configured
The model has been registered, but the windows are not automatically
adjusted yet
(The number of electrodes of the component number has changed, or
the number of electrodes of the component number does not match the
number of lands because the process to add or delete a land is on the
way.
<Auto Adjustment>
Use the [Adjust] button at the bottom of the Component Number List to automatically adjust
the windows.
The [Automatic Adjustment] button is enabled only when the component number lock is locked
( -> ).
The [Adjust] button is available on the Component Registration screen and Criteria
Setting (Product No.) screen.
S720A
2.1 Basics of Teaching
2-15
Specify Yes or No for individual adjustment, and click [Adjust].
- Individual Adjustment . . . Specify if you want to adjust Land Window individually or not.
- ON Land Window is adjusted individually based on the bare board image.
- OFF Deployment is done for Land Window with the same size and relative
position as the representative component.

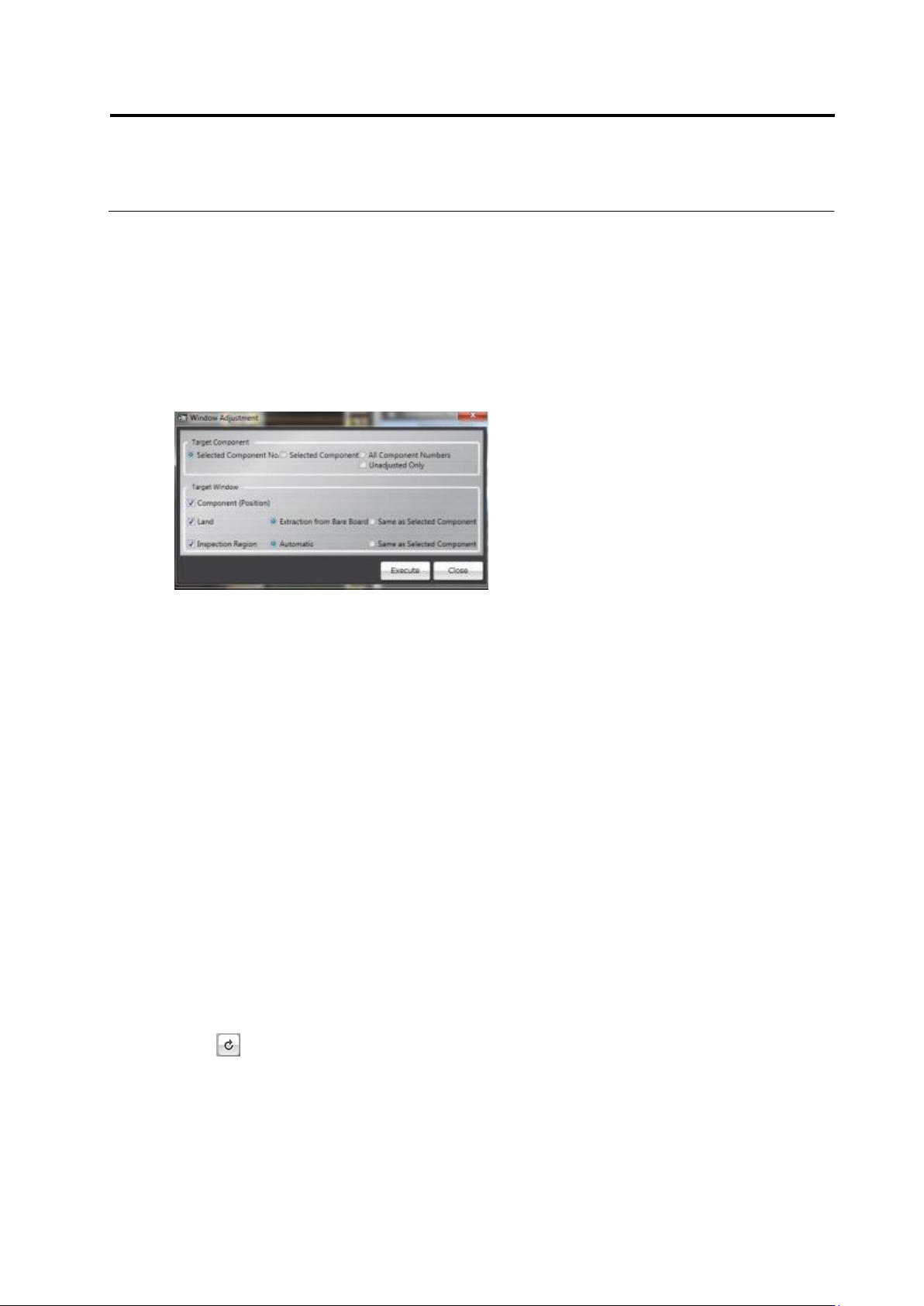

Clicking [Adjust] displays the window adjustment dialog box.
Specify a target component and window, and click [Execute].
- Target Component . . . Selects a target component.
- Selected Component No. Selected component number is set as a target.
- Selected Component Selected component is set as a target.
- All Component Number All component numbers are set as target.
- Unadjusted Only . . . Unadjusted component numbers or components are set as target out of
the component numbers or components selected in the Target
Component area.
- Target Window . . . Selects a target window.
- Component (Position) Moves the component window to the inspection criteria position.
- Land Adjusts the Land Window.
- Extract from Bare Board Extracts a land from the bare board image and adjusts
the Land Window.
- Same as Selected Component Sets the Land Window of the target component same as
that of the selected component.
- Inspection Region Adjusts the inspection range window.
- Automatic Adjusts the inspection range window automatically.
- Same as Selected Component Sets the inspection range window of the target
component same as that of the selected
component.
< Update >
Click on top-right component number list to update the list.
