2.12 Reloading an Inspection Program
2-121
2.12 Reloading an Inspection Program
2.12.1 Reloading an Inspection Program Recently Used
This section describes how to reload an inspection program recently used.

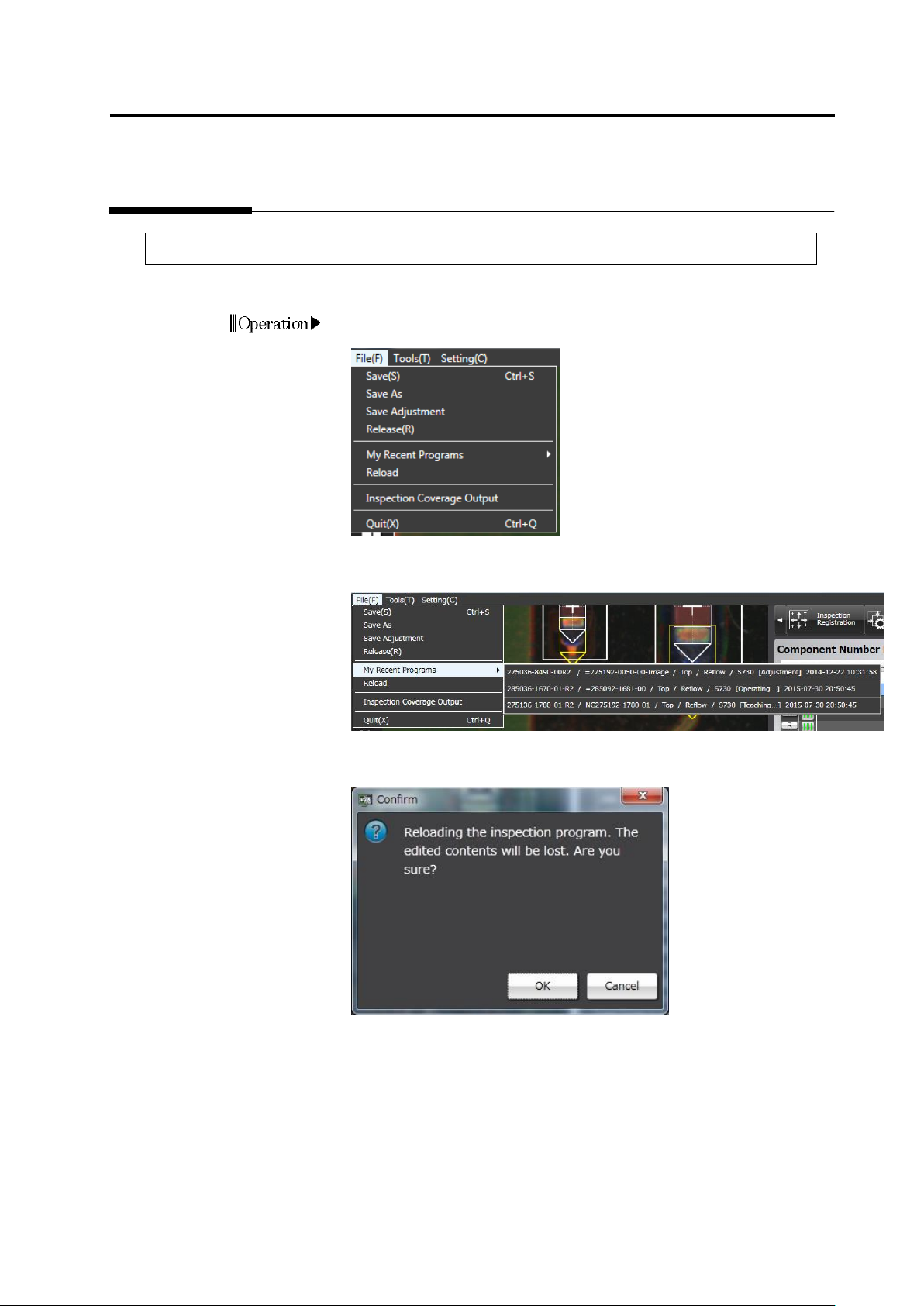

1. On the menu bar, select [File] - [Inspection Program Recently
Used].
2. A list of recently-used inspection programs appears.
Select an inspection program to edit.
3. The Confirmation message appears.
Check the message and click [OK].
Chapter 2 Inspection Programming
2-122
2.12.2 Reloading Inspection Program Being Edited
This section describes how to reload the inspection program being edited.

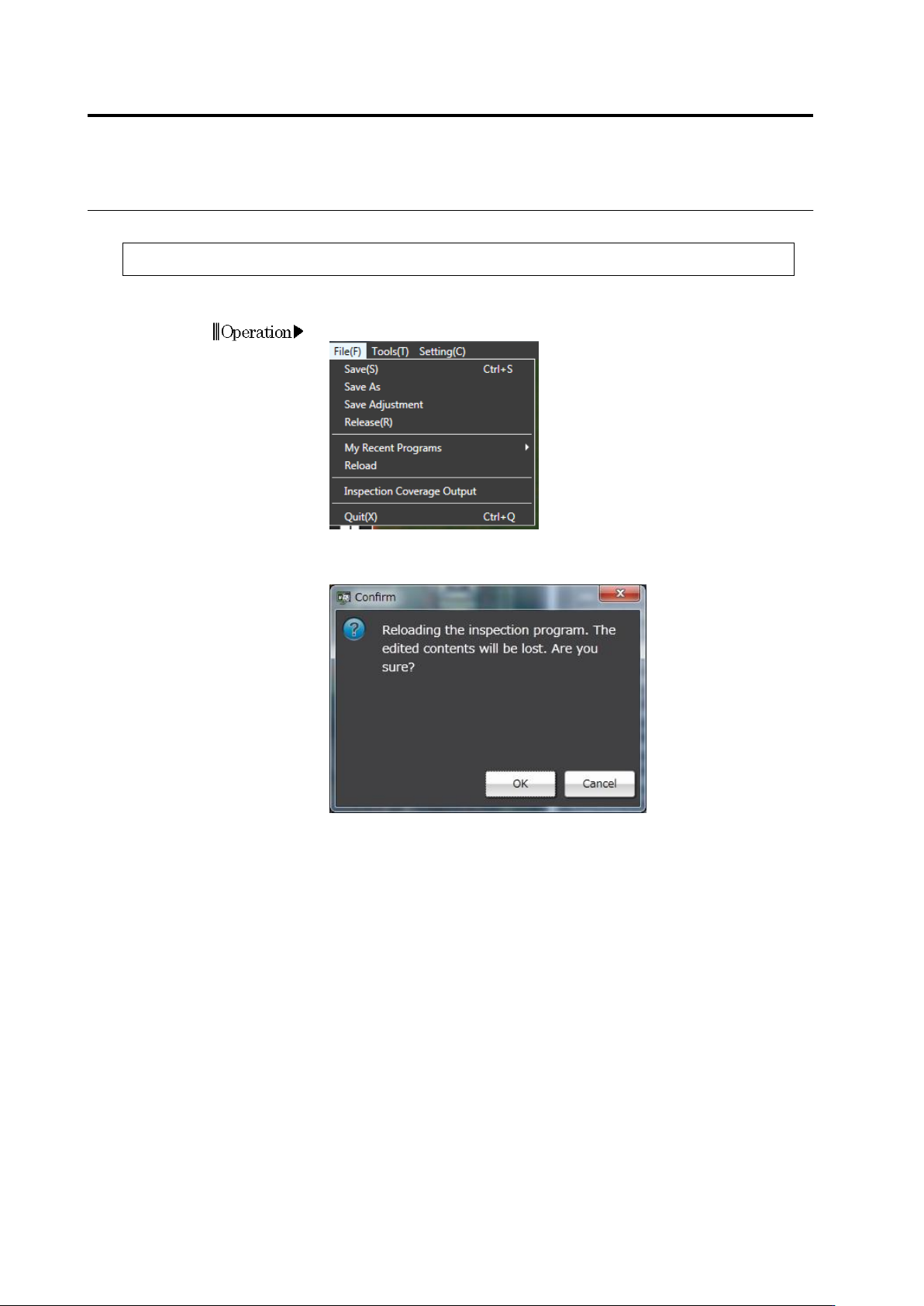

1. On the menu bar, select [File] - [Reload].
2. The Confirmation message appears.
Check the message and click [OK].
2.13 Outputting Inspection Coverage
2-123
2.13 Outputting Inspection Coverage
This section describes the procedure to output setting details of individual inspection items for the
inspection program in the process of editing.
The setting details for individual component numbers and components are output in csv files.
Component number information cannot be output if teaching is not complete for the component
number.
The component types, inspection window names and inspection items are output in English,
regardless of the language setting.
1.
Select [File] - [Inspection Coverage Output] in the menu bar.
Inspection coverage can be output for each destination,
so destinations can be managed using a CSV file. On the menu bar,
select [File] - [Select Destination and Output Coverage], and select
destinations on which coverage is output.
2.
The "Save as" dialog is displayed.
Specify the output location and file name, then, click [Save].
