Chapter 2 Inspection Programming

2-162

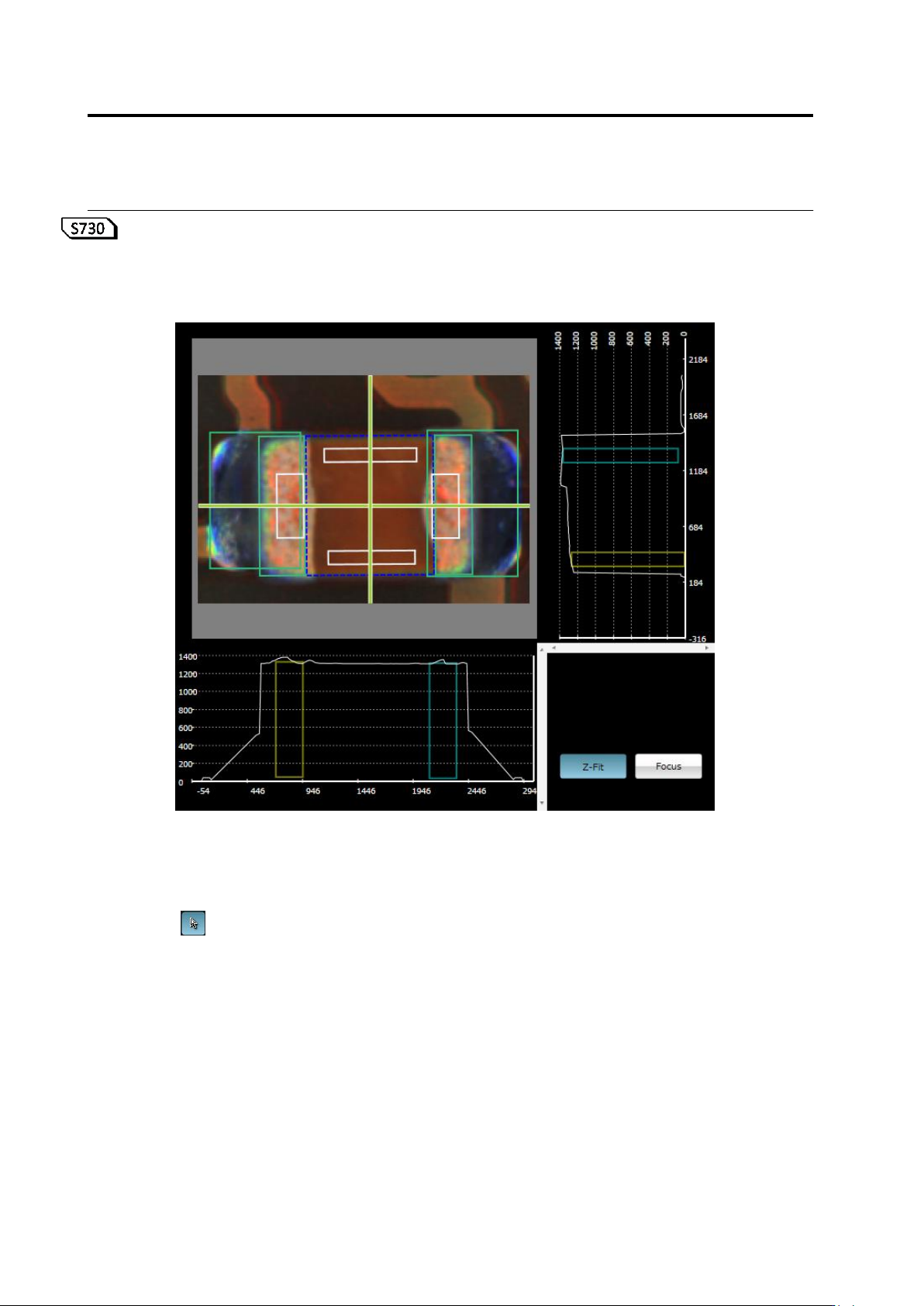

If height measurement data is used for inspection, orthographic view appears.

Move the line profile to a location you want to check, and verify a component, component height,

and a fillet shape.

(1) X-Y Diagram

Displays a component thumbnail image.

(2) Line Profile Position Specification Line

Shows a slice position to display on X-Z and Y-Z diagrams.

If is set ON, you can move this by mouse dragging, cursor keys on the keyboard, or

left-clicking on the X-Y diagram while holding an Alt key.

The view is refreshed following the X-Y diagram view position and scaling.

⑤

⑥

(1)

(2)

(4)

(7)

(3)

(5)

(6)

2.15 Modifying an Inspection Program

2-163

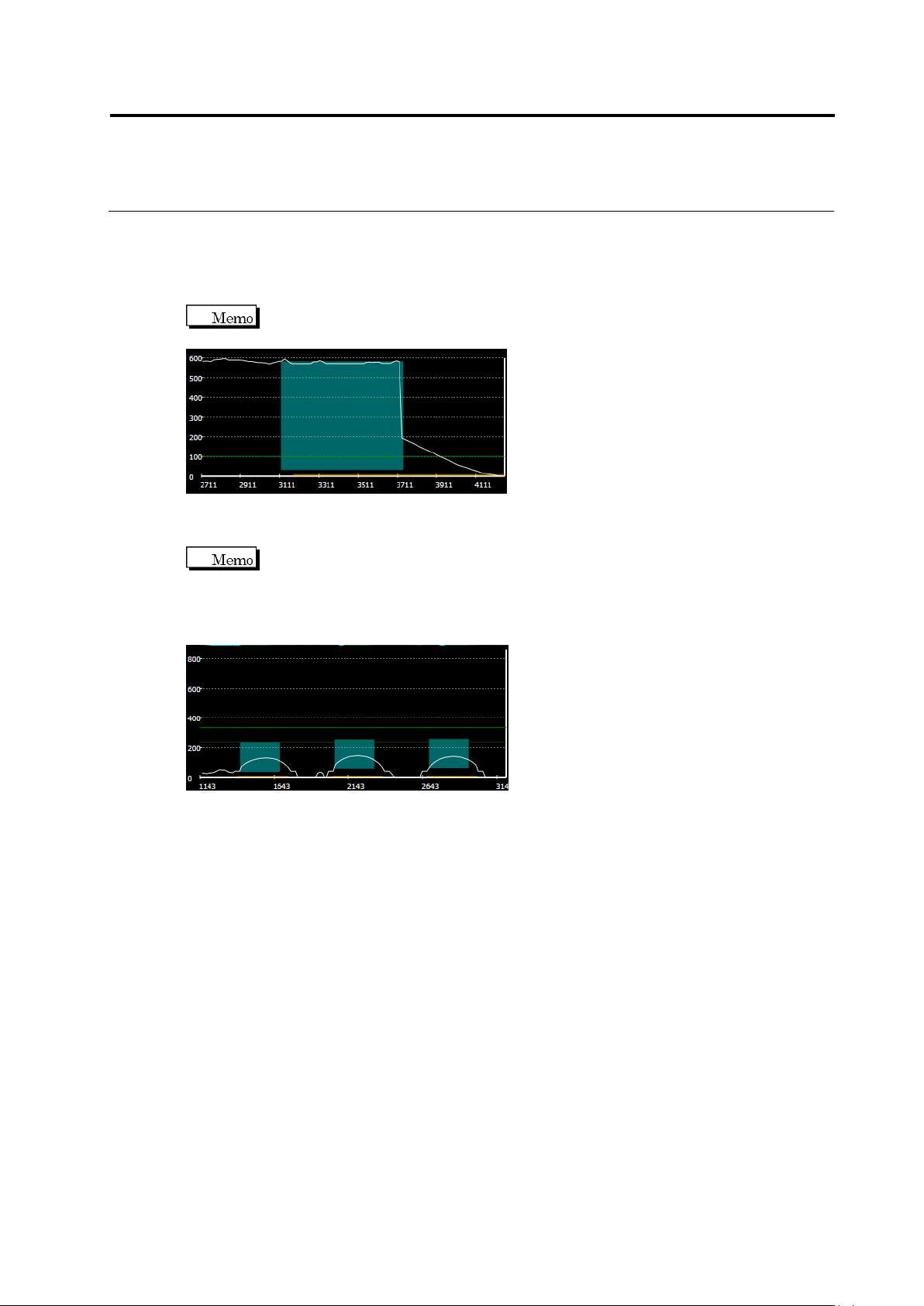

(3) X-Z Diagram

Displays the following slice information of X-Z.

Slice Height: White line

Electrode Position/Height: Light blue paint-out frame (displayed when fillet inspection,

electrode lifting, or coplanarity is selected)

If fillet inspection is selected, the electrode being selected is displayed as a light

blue paint-out frame.

Lifted Component Inspection Criteria: Green line (displayed when component lifting

or coplanarity is selected)

If coplanarity is selected, all the electrodes belonging to the electrode group

being selected are displayed as light blue paint-out frame. A green line is displayed at the

height of the lowest electrode, and the other green line is displayed at the height which is the

height of the inspection criterion above the former green line. The range of OK products for

coplanarity inspection is between these two lines.

(4) Y-Z Diagram

Displays the slice information of Y-Z. The details are the same as that of X-Z diagram.

(5) Z Scale Adjustment Toggle Button

Setting the button ON scales the Z axis so as to fit in the screen.

Setting the button OFF displays the Z axis in the same scale as X and Y.

(6) Window Centering Button

Clicking the button adjust the position of the selected window to the center of the X-Y

screen.

Chapter 2 Inspection Programming

2-164

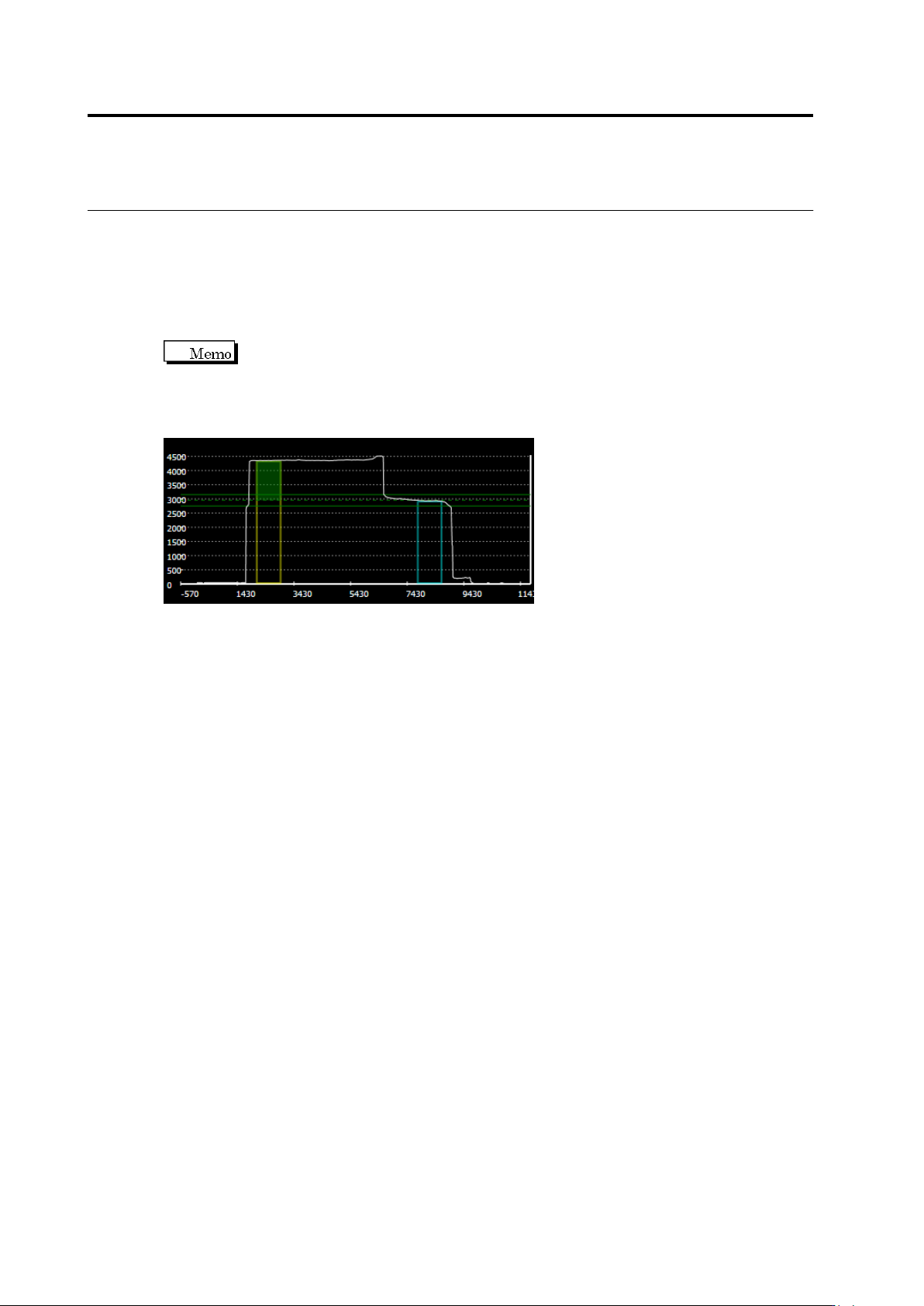

(7) Lifted Component Window

A window to inspect component height and lifted component is displayed on the X-Y diagram

as a white frame.

A lifted component window area is displayed in the X-Z and Y-Z diagrams.

When an incline of 0-180° or 90-270° is selected, the yellow and light blue frames indicate

the reference point and measurement point, respectively. If neither range is selected, the

window is displayed in gray.

To the yellow frame of the reference point, the height of the preset unevenness

is displayed as a green paint-out frame. The green reference point is displayed in the

position which is the height of the unevenness above the top of the yellow frame of the

reference point. The green dotted line indicates the center of the reference, and the green

solid line indicates the upper and lower limits of the inspection settings, respectively.
