2.16 M anaging PC B Im ages 2- 201 <Curved face approxim ation setup function> Use this function when the base p lane in the inspectio n image cannot b e approxim ated to a plane due to distortion of the base plane…
Chapter 2 Inspection Programming
2-200
Hereafter the effect of this function is shown.
Before setup After setup

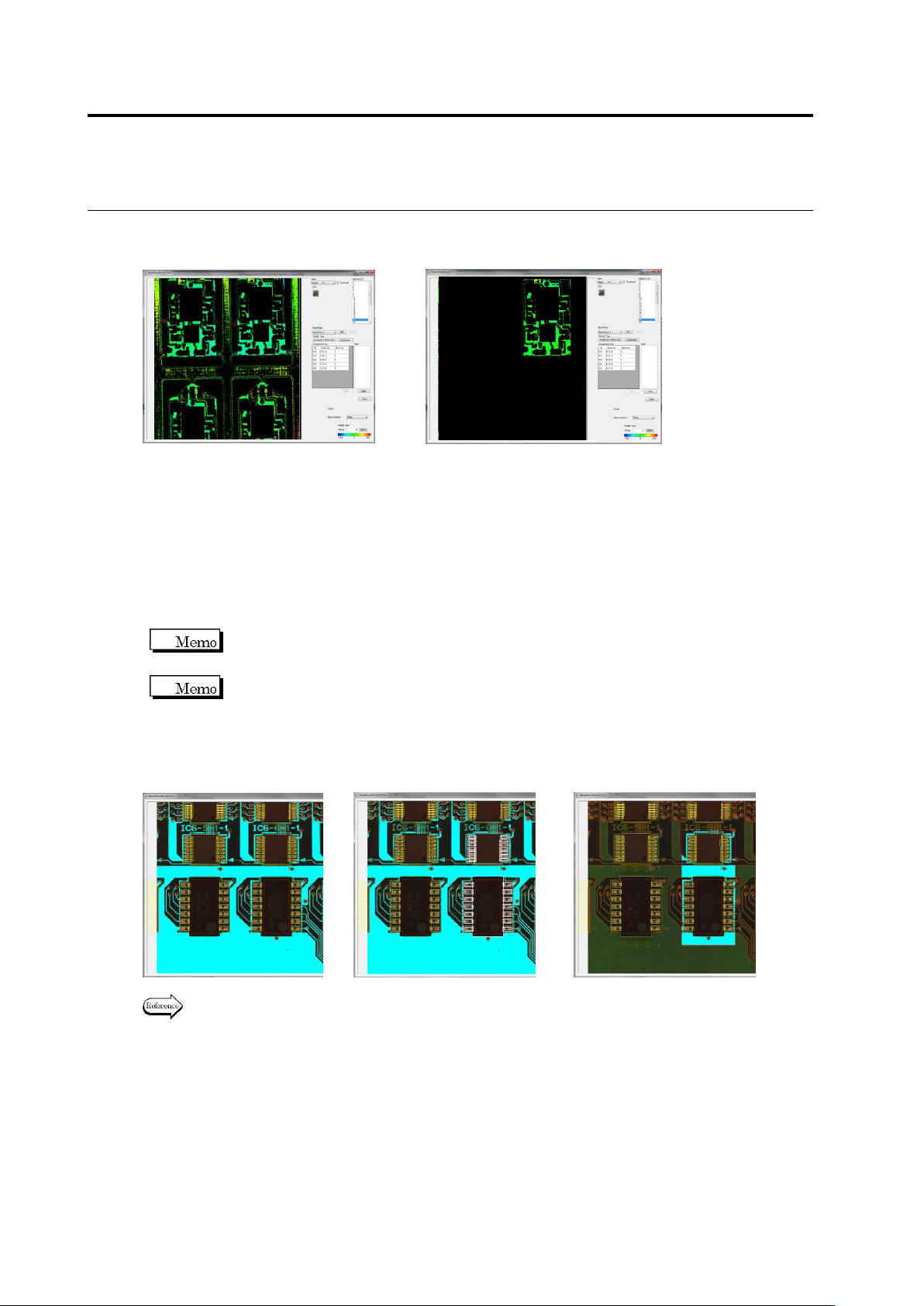

<Base plane manual partitioning function>
This function can generate more than one base plane in a FOV. Use this function when
component block unit has not been set up yet and the base planes have different height.
Use the ⑤ select button to select an area to be partitioned or use the ⑰ component list to
select a component to be applied to base plane partitioning. By clicking the ⑬ add base plane
button after selecting it, it is able to partition or add base planes.
More than one component can be selected by selecting them as pressing and
holding the Ctrl key on the ⑰ component list or on a binarized image.
The added base planes can be resized by the ⑤ select button.
Hereafter, examples of base plane partitioning are shown.
Before partitioning Select component (displayed in white) After partitioning
For the settings of base plane, refer to “Base Plane Partitioning Setup” of Section 2.4
“Base Plane Setup” in the inspection logic manual.
2.16 Managing PCB Images
2-201

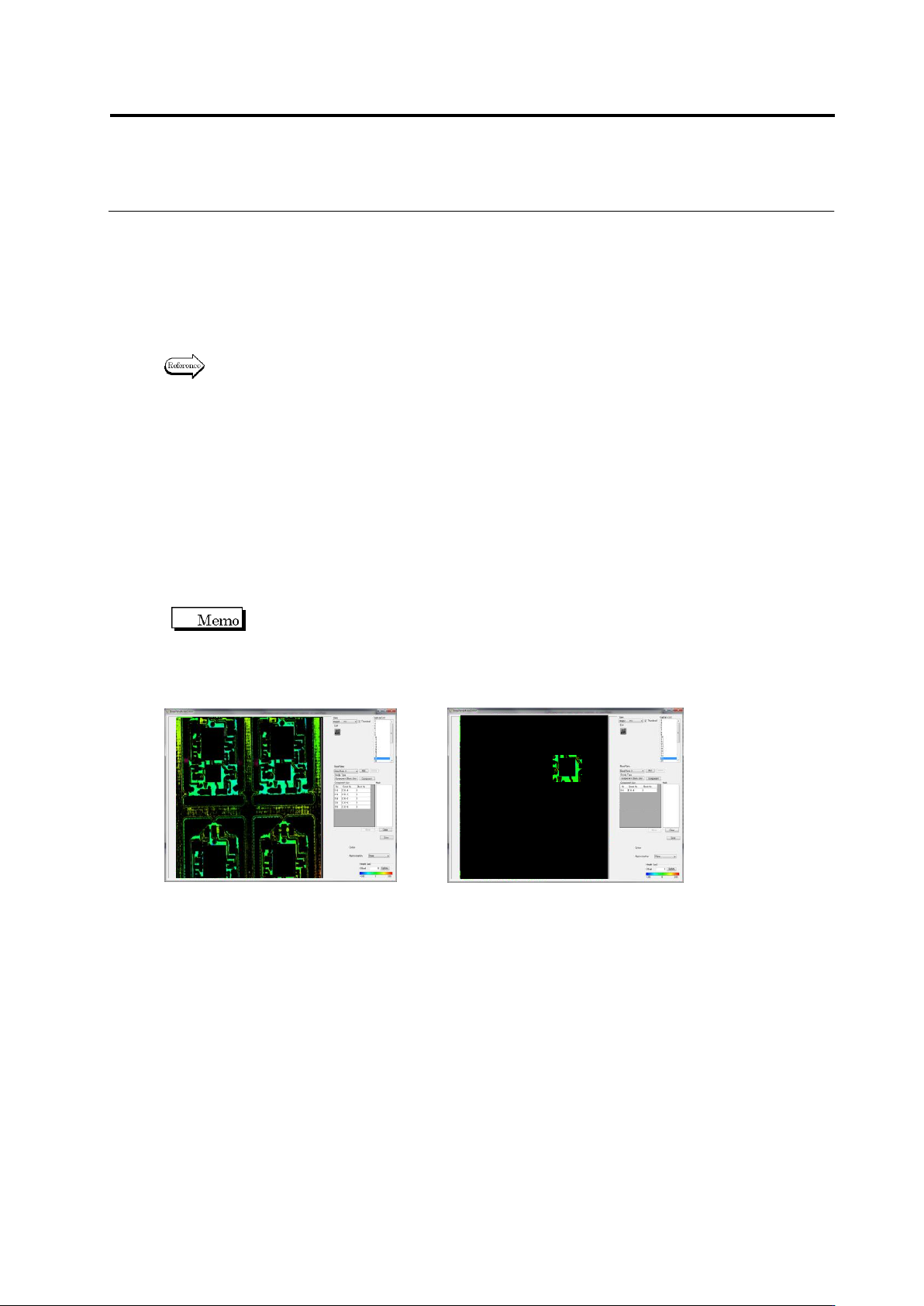

<Curved face approximation setup function>
Use this function when the base plane in the inspection image cannot be approximated to a
plane due to distortion of the base plane such as a flexible PCB.
Use the ㉒ base plane approximation method selecting combo box to set this function as
curved face approximation (quadric).
For the settings of base plane, refer to “Curved Face Approximation of Base Plane” of
Section 2.4 “Base Plane Setup” in the inspection logic manual.
<Base plane per-component partitioning function>
This function partitions a base plane on a component basis and sets the partitioned ones
automatically.
Use this function if the height of base planes does not become equal to each other even after
using the ⑮ base plane per-block partitioning function or the ㉒ curved face approximation
setup function. By clicking the ⑯ Component button, the base plane is partitioned in the overall
FOV on a component basis.
To use this function, it is assumed that component block unit has been set up.
Hereafter the effect of this function is shown.
Before setup After setup
4.
Finish editing of the reference level model. To save the edited data,
click the
㉑
Save button, and click the Close (x) button in the upper
right corner of the window to return to the base plane management
image screen.
Chapter 2 Inspection Programming
2-202

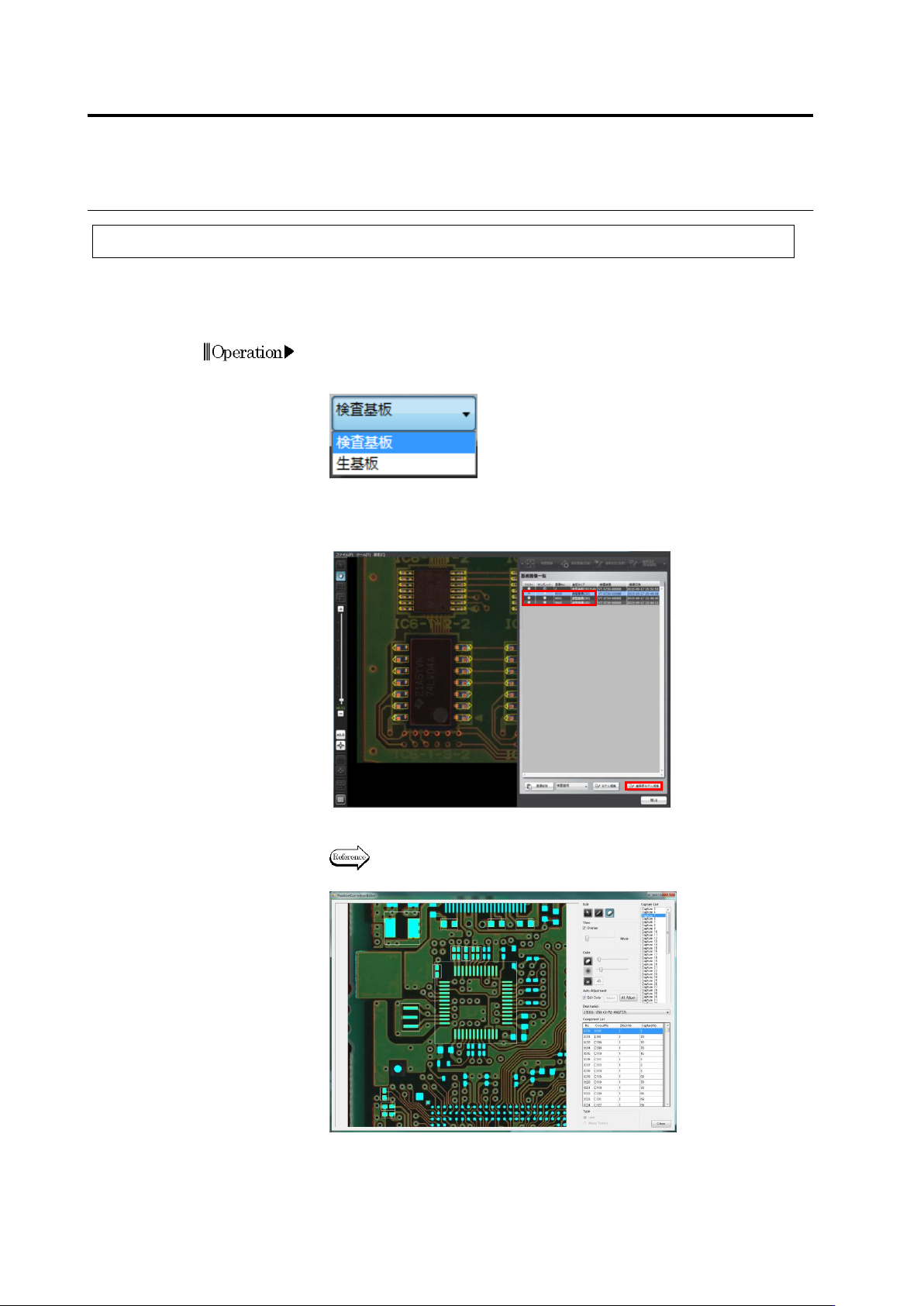

2.16.5 Editing a Position Correction Model
When conducting inspection on the machine or testing PCBs using v-TS, if the land extraction
position is different from that of the actual PCB, edit the position correction model using the
position correction model editing tool. This section describes the operation procedure of this tool.
1.
On the menu bar of the editing screen, select [Tool] - [PCB Screen
Management Screen]. If a raw PCB screen is displayed, select
“Inspection PCB” from the list.
2.
On the PCB screen list, click the inspection PCB image edited
(PCB type: adjustment image) to select it to a master. Then, click
[Edit Reference Level Model] to start up the reference level model.
3.
Edit the position correction model.
The editing method using the position correction model
editing tool is described on and after the next page.
