2.6 Specifying Inspection Criteria

2-85

Height inspection means the following inspection logics:

■ Component inspection (wrong polarity, component height, and

lifted component)

■ Electrode inspection (electrode posture - lifted electrode /

coplanarity)

Select the target window in the Window Composition, or click the

window in the image display area to select it.

The inspection items pertaining to the selected window are

displayed.

Use the combo box to switch the display of the

inspection PCB image and unpopulated PCB image.

Select the inspection items by using the checkboxes.

Inspection is performed for the items whose checkboxes are ON,

and not performed for those with checkboxes OFF.

The inspection items with selected checkboxes require the

inspection criteria for a good component judgment.

Refer to the Inspection Logic Manual for the details on the

inspection items.

To check or edit the component information, click to select the

Component Body item in the Window Composition, and click

[Component Registration].

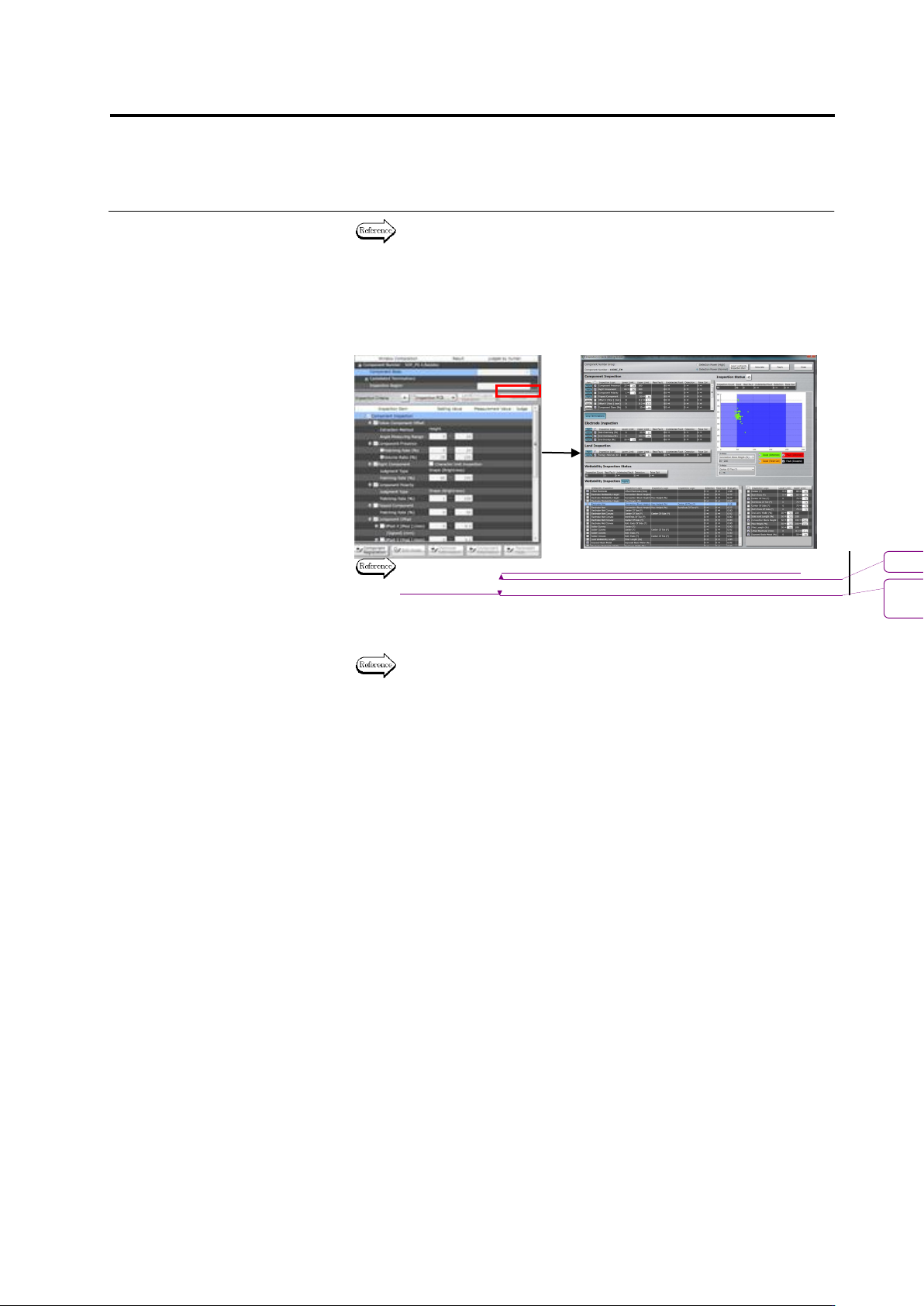

The display moves to the Component Setting screen, where the

component information can be changed.

Refer to "2.4.5.1 Component Setting" for the editing procedure.

Chapter 2 Inspection Programming

2-86

To check or change the component data (height), click [Component

Data]. In the component data setting dialog box, change component

height/component step if necessary, and click [OK].

Enter a value if the component upper surface has unevenness.

Items (mm) and (°) are independent input, respectively, and

whichever being selected by the radio button for the

component lift inspection (height/angle) is applied. If the

measurement point is lower than the reference point, enter the

value of unevenness as a numerical value using “-“.

To check or edit the electrode information, click the target electrode

group in the Window Composition to select it, and click [Electrode

Information]. The Electrode Information Setting dialog appears.

Change the electrode height as required and click [OK].

For manually editing the characteristic parameters automatically

extracted in model calculation, click the target inspection item and

click [Edit Model].

2.6 Specifying Inspection Criteria

2-87

Refer to "2.15.3 Editing a Model" for the model editing procedure.

When setting judgment in combination of inspection result and/or

inspection of a component # or whole component # group with the

inspection result, click [Optimize]. The inspection criteria detail

setting screen appears. Set a Boolean expression as needed and

click [Apply].

Refer to “2.15.4 Optimizing Boolean Expressions and Inspection

Criterion Values” for setting procedure.

Repeat Steps 2 to 5 for all the component numbers.

Refer to “2.15.3 Editing a Model” for deployment.
