Chapter 2 Inspection Programming
2-204
⑦Overlay Switch: The extracted pixels on the PCB surface (cyan color portion) are
displayed.
⑧Display Magnification Slider: Enables to change the magnification of display.
⑨Capture List: The visual field of the inspection program is displayed.
⑩Edit Color Switch: A color table to adjust the land position automatically can be displayed/
edited.
⑪Adjust Button: The position of the selected land window is adjusted automatically.
⑫All Adjust Button: The positions of all the land windows are adjusted automatically.
⑬Destination Button: If destinations are set, the destinations edited can be changed.
⑭Component List: Component numbers, circuit numbers, component block unit numbers,
and affiliated inspection visual field numbers are displayed. When a line is selected, control
is moved to the component and a window is displayed.
⑮Type: The reference of the position correction model can be changed.
If post-mounting inspection is conducted and it is detected that
solder paste extends beyond the land, or if a lot of bottom
electrode components such as BGA are implemented and the
land is not visible, select [Wiring Pattern].
⑯Close Button: The position correction model which has been edited completely is saved.
⑬
⑭
⑮
⑯
2.16 Managing PCB Images
2-205
削除: Managing PCB Images
2.16.6 Changing Brightness of PCB Image
You can change brightness of a PCB image currently displayed.
1.
On the menu bar of the edit screen, select [Tool] - [Adjust screen
brightness].
2.
On the [Brightness Setting] dialog box, move the slider right/left to
adjust the brightness. To adjust screen brightness, use the
[Brightness] slider.
The initial value has a brightness of 1.5.
3.
After adjustment, close the dialog box.
Chapter 2 Inspection Programming
2-206

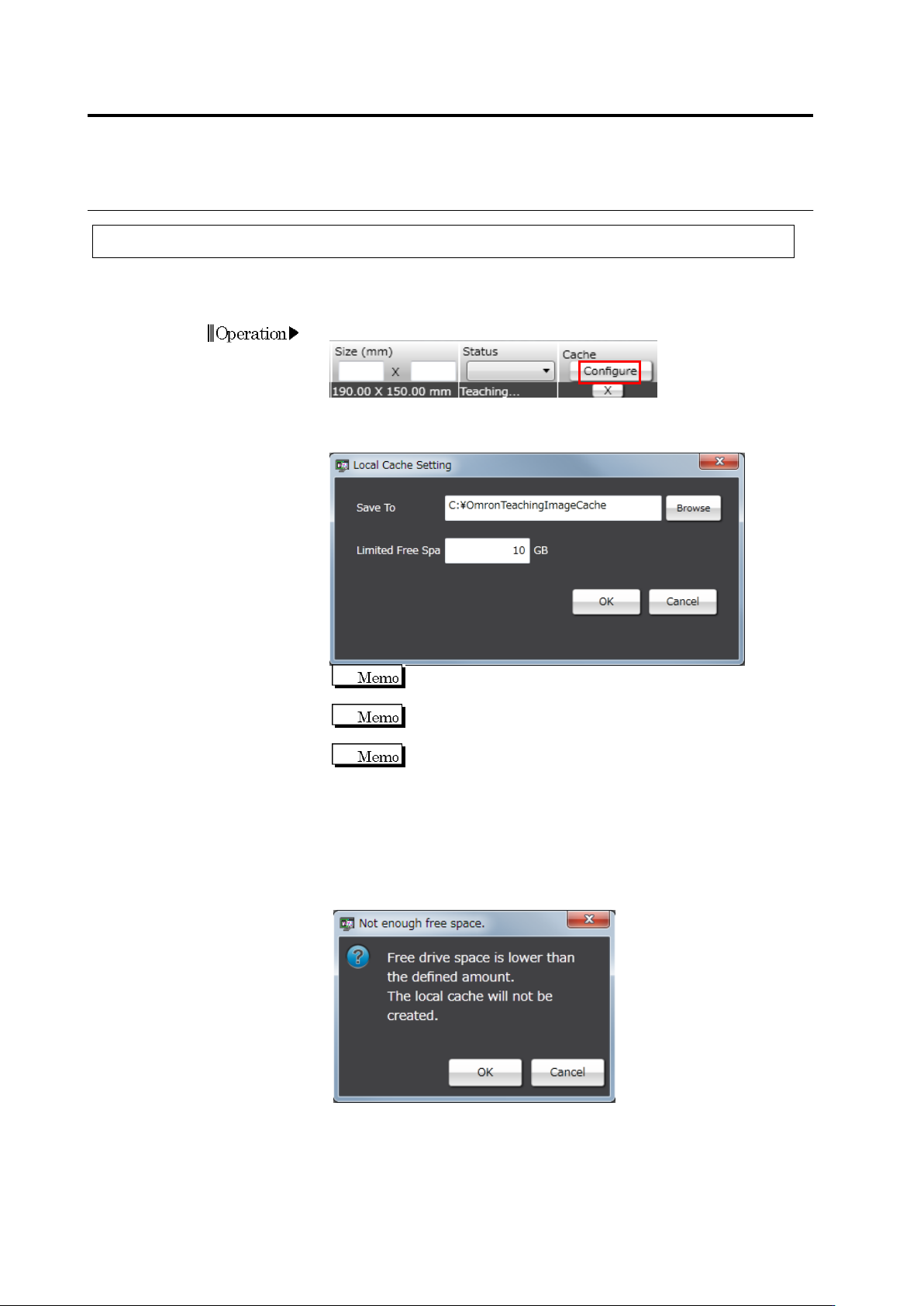

2.16.7 Cache Setting
The response with v-TS will be improved by saving the PCB image data on the network into a
computer.
1.
On the PCB selection screen, click [Configure] for Cache.
2.
The local cache setting dialog appears.
Set the saving destination and free space limit, and then click [OK].
The saving destination has been set to
"C:¥OmronTeachingImageCache" as default.
A folder is automatically created, under the specified folder,
with a folder name as the IP address of the server to connect.
Set the free space limit between 10GB to 999GB.
While the local computer’s free space is larger than the set value,
PCB images will be saved into the local at the timing when the
inspection program is opened.
When the local computer’s free space becomes lower than the set
value, the dialog shown below is displayed after the [Edit] button is
clicked.
Clicking [OK] opens the inspection program without saving images
into the local.
Clicking [Cancel] closes the dialog without opening the inspection
program.
