2.15 M odifying an Inspection Pr ogram 2- 147 (14) Wi ndow Displays the inspection crit eria and measured value of the selecte d window. The window color varies depending on the inspection result. Blu e: The inspection r…
Chapter 2 Inspection Programming
2-146

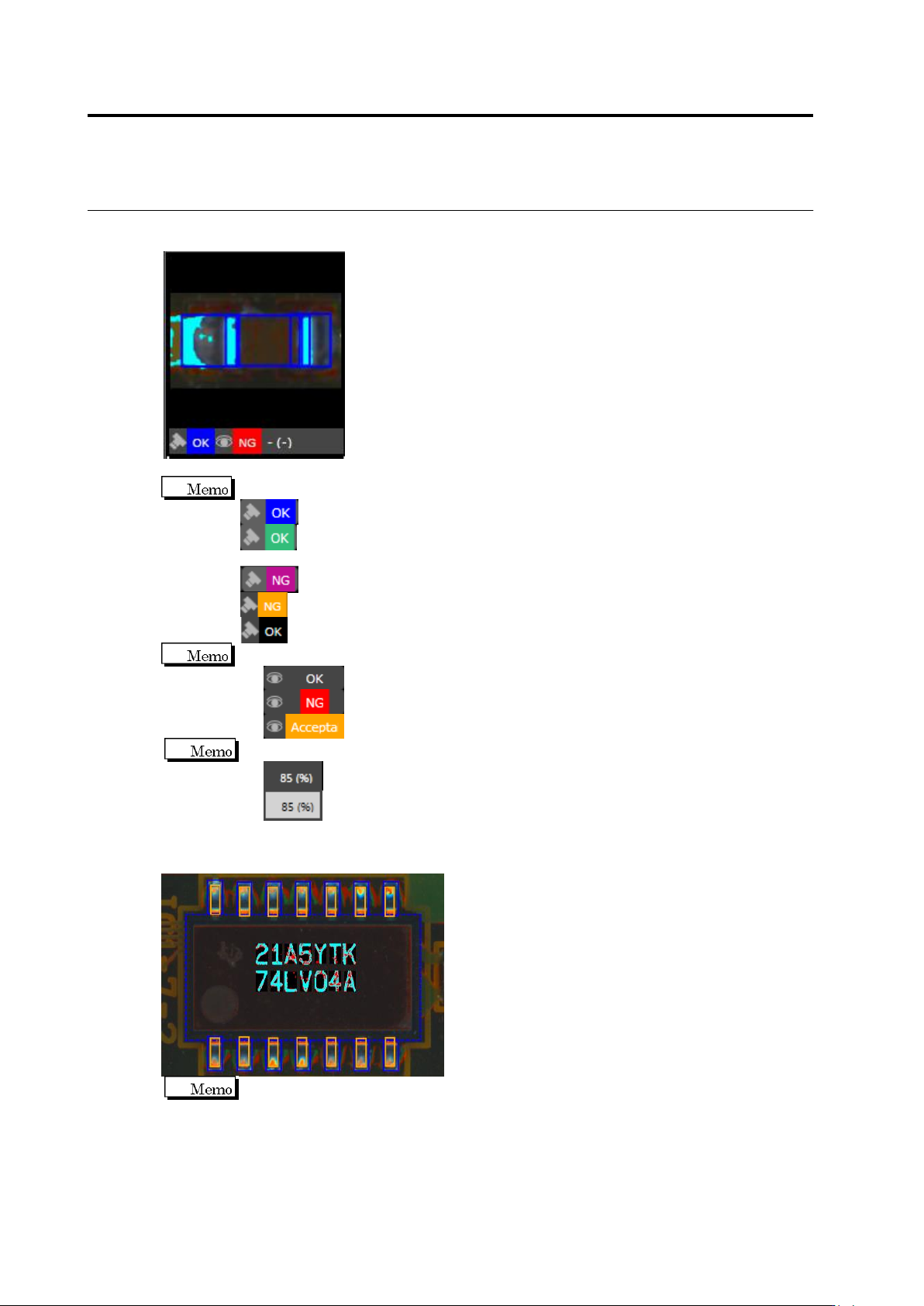

(13) Thumbnail
Test result and visual check result are displayed.
Displays the inspection result.
Blue: The inspection result is OK and the visual check result is OK.
Green: The inspection result is changed to OK because of the settting of the
logical expression and the visual check result is OK.
Purple: The inspection result is NG and the visual check results is NG.
Yellow: The inspection result is NG and the visual check result is OK.
Black: The inspection result is OK and the visual check result is NG.
Displays the visual check result.
Gray: The visual check result is "OK".
Red: The visual check result is "NG".
Orange: The visual check result is "Acceptable".
Displays the measured values.
White: Displayed if test target.
Black with gray background: Displayed if out of test target.
Displayed the component difference inspection result and the polarity difference inspection
result.
Displayed the color coded results of matching/mismatching between the mask model
and the inspected image in the component difference inspection and the polarity
difference inspection.
Pale blue: Binarized area is overlapping in the mask model and the inspected image
Black: Non-binarized area is overlapping in the mask model and the inspected image
Red: Binarized area is not overlapping in the mask model and the inspected image
2.15 Modifying an Inspection Program
2-147

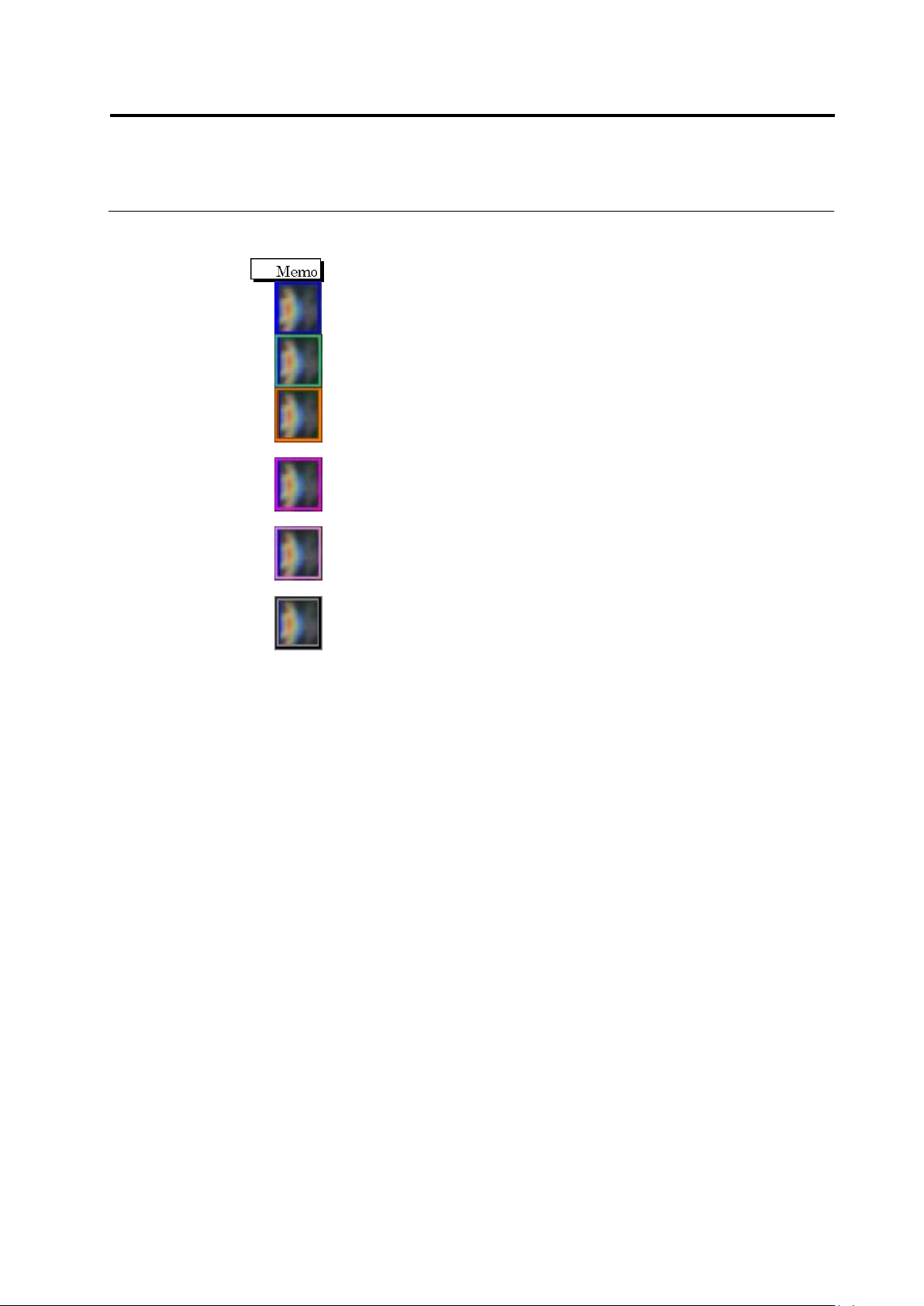

(14) Window
Displays the inspection criteria and measured value of the selected window.
The window color varies depending on the inspection result.
Blue: The inspection result is "OK".
Green: The inspection result of the specified logical expression is "OK".
Orange: The visual inspection result is not registered as fault, and the
inspection result is "NG".
Red purple: The visual inspection result is registered as fault, and the
inspection result for the selected inspection item is "NG".
Pink: The visual inspection result is registered as fault, and the inspection result
for other than the selected inspection item is "NG".
Black: The visual inspection result is registered as fault, and the inspection
result is "OK".
Chapter 2 Inspection Programming
2-148
(15) Per-pin-No. basis
By checking the Per-pin-No. basis item on the model editing screen, inspection result can be
displayed not only on a per component No. basis but also on a per pin No. basis.
Model editing screen with the Per-pin-No. basis item checked
In addition, selecting a pin moves the screen so as to display the selected pin in the screen
center.
Case: Switching pin numbers from 1 to 3
