2.7 PCB/Component Block Unit Setting
2-93

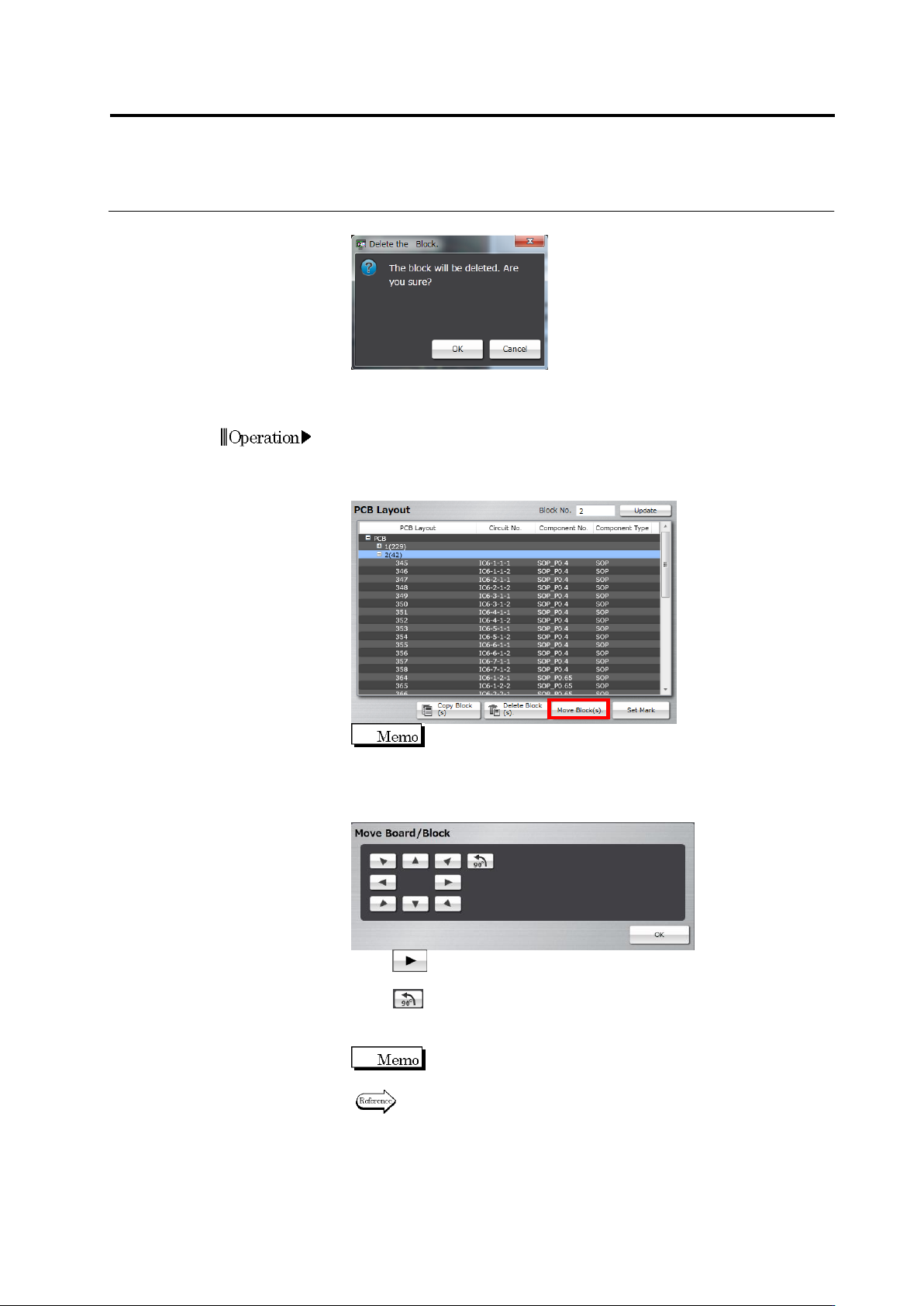

3.
The dialog to confirm the deletion appears. Click [OK].
Move a Component Block Unit
1.
Click to select the Component Block Unit to move in the PCB
Layout list.
2.
Click [Move Block(s)].
By default, an unpopulated PCB is displayed. By clicking
the [Display Component] check box, you can switch
ON/OFF of Display Component.
3.
The PCB moving buttons are displayed.
Click button for the target direction, or drag the image display
area to move the Component Block Unit.
Click if the Component Block Unit (or its copy) requires a
rotation. A single click rotates the unit by 90 degrees in the
counterclockwise direction.
Use the PCB entire view display function for rough position
alignment, then tune the position using the magnified view.
Refer to "2.1.3 Image Display Area Operation" for the image display
area operation.
4.
Click [OK] when the position is determined.
Operation
Chapter 2 Inspection Programming
2-94
Divide a Component Block Unit
1.
Click (Select Window) button in the Image Operation tool bar.
2.
Drag to specify the range to be separated from the Component
Block Unit on the image display area. Drop the cursor. The
components included in the specified range are added to the
Component List.
3.
Select the destination Component Block Unit number the separated
portion is moved to in the list and click [Move].
To add a new component block unit number, select [NEW].
The selected component is set as another Component Block Unit.
Operation
2.7 PCB/Component Block Unit Setting
2-95
2.7.2 Mark Setting
This section describes 2D code or Bad Mark setting.
Refer to the Inspection Logic Manual for the details on 2D code or Bard Mark inspection.
1.
Select the [PCB/Component Block Unit Setting] tab.
If the [PCB/Component Block Unit Setting] tab is hidden, click
at the right to display it.
2.
Click [Set Mark].
Operation
