2.8 PCB Testing/Result Check
2-107
2.8.5 Modifying Inspection Criteria
This section shows the procedure to modify the inspection criteria of the components where a
false call is output, by the unit of component number or component.
1.
Select the component in the Detailed Result list, and click [Criteria
Setting (Product No.)] or [Criteria Setting (Individual Component)].
2.
The display switches to the Inspection Criteria screen.
[Criteria Setting (Product No.)] [Criteria Setting (Individual Component)]

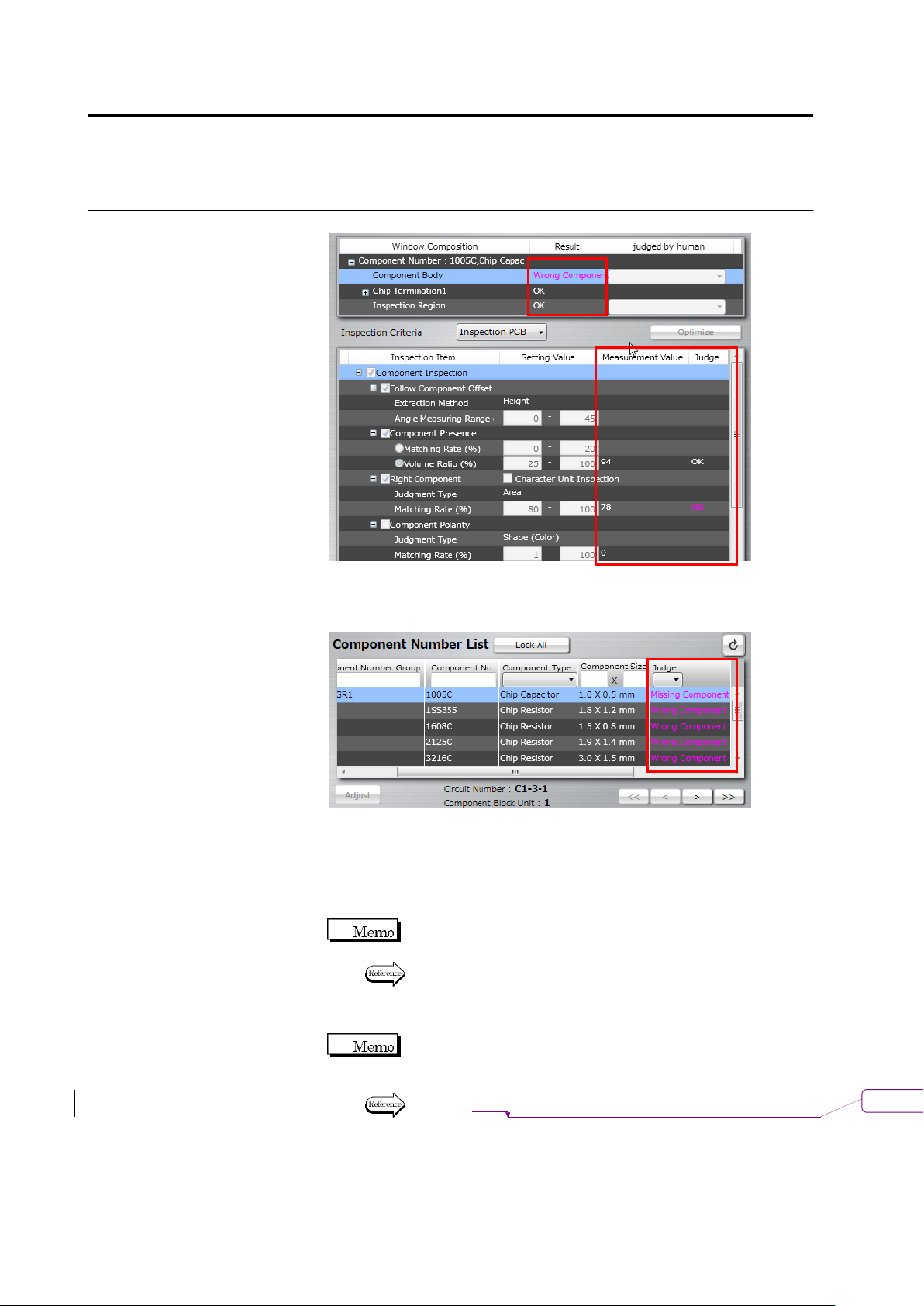

The screen displays the component selected in the result check
screen.
The inspection result for the individual windows of the displayed
component is shown in either of the "OK" or Fault Name descriptions,
together with the measured value of each inspection item and its
judgment (OK or NG).
[Criteria Setting (Product Number)]
Operation
Chapter 2 Inspection Programming
2-108
The Inspection Criteria Setting screen for a component number
displays the result ("OK" or Fault Name) in the Judge column in the
Component Number List.
3.
Adjust the position and size of the windows where an inspection
fault is output as required.
4.
Select the inspection item to modify, and change the inspection
criteria or edit the model.
The changed criteria values replace the old values in the library
when the inspection program is saved in the library.
Refer to "2.6.1 Criteria Setting (Product No.)" for criteria value
editing by the unit of component number, and "2.6.2 Criteria
Setting (Individual Component)" for the same by the unit of
individual component.
If the detected position does not match the image, editing of the
component top color or electrode color (model editing
operation) is required prior to changing the criteria value.
Refer to P2-135 "2.15.3 Editing a Model" for the model editing
procedure.
削除
: 2-132
2.9 Setting Oblique Inspection
2-109
2.9 Setting Oblique Inspection
Oblique inspection requires the settings for oblique inspection target component numbers,
oblique image capturing, inspection criteria and direction. This chapter describes the procedures
to make individual settings and test PCBs for oblique inspection.
You cannot specify oblique inspection for BGA/CSP, other bottom electrode
component, and insertion component.
2.9.1 Setting Oblique Inspection Target Component Number
This section explains the procedure to specify an existing component number to the target of
oblique inspection.
Refer to "2.4.5.1 Component Setting" for the procedure to specify a new component number to the
target.

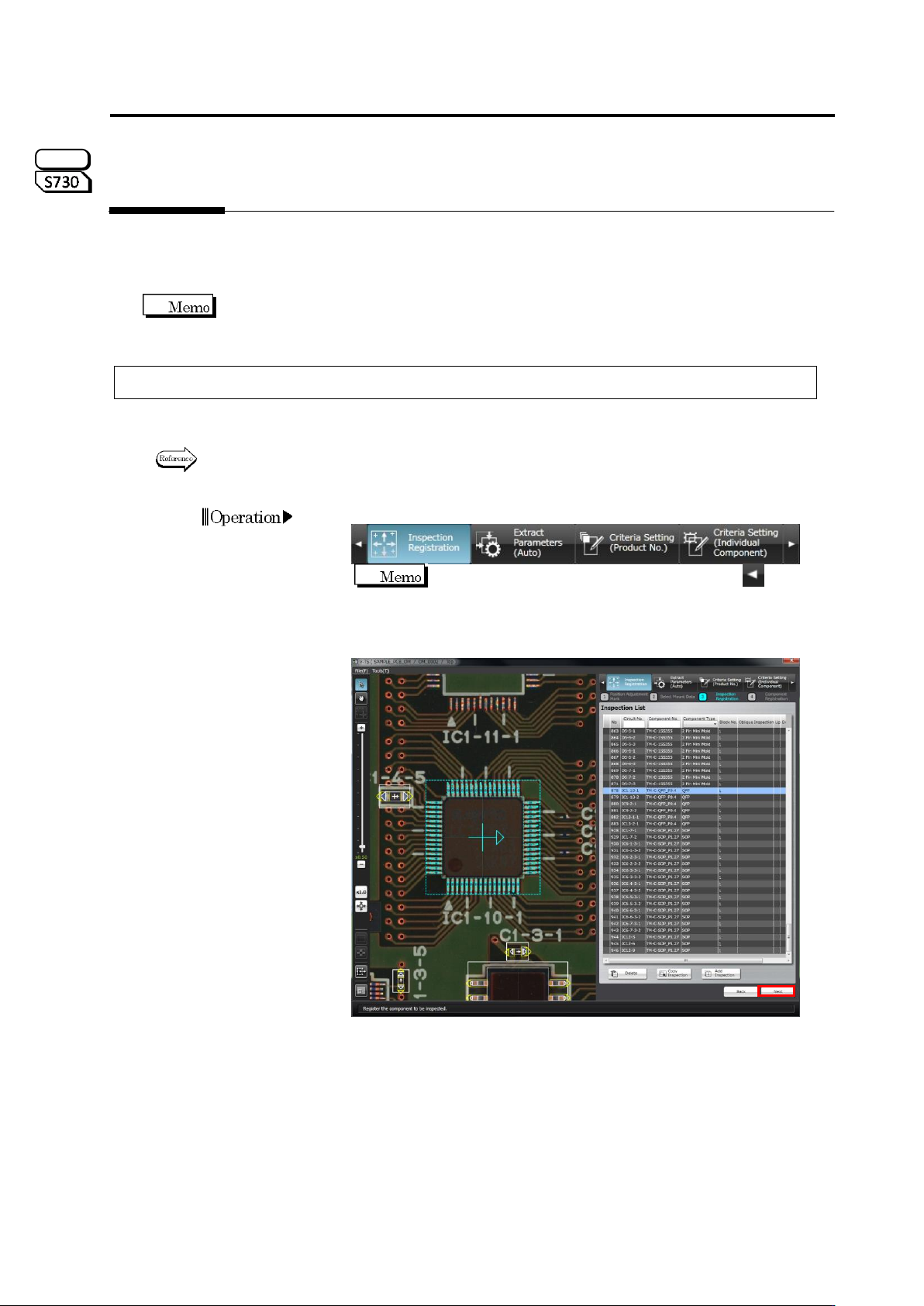

1.
Select the [Inspection Registration] tab.
If the [Inspection Registration] tab is hidden, click at the
left to display it.
2.
The display moves to the Inspection Registration screen. Click
[Next].
S720A
