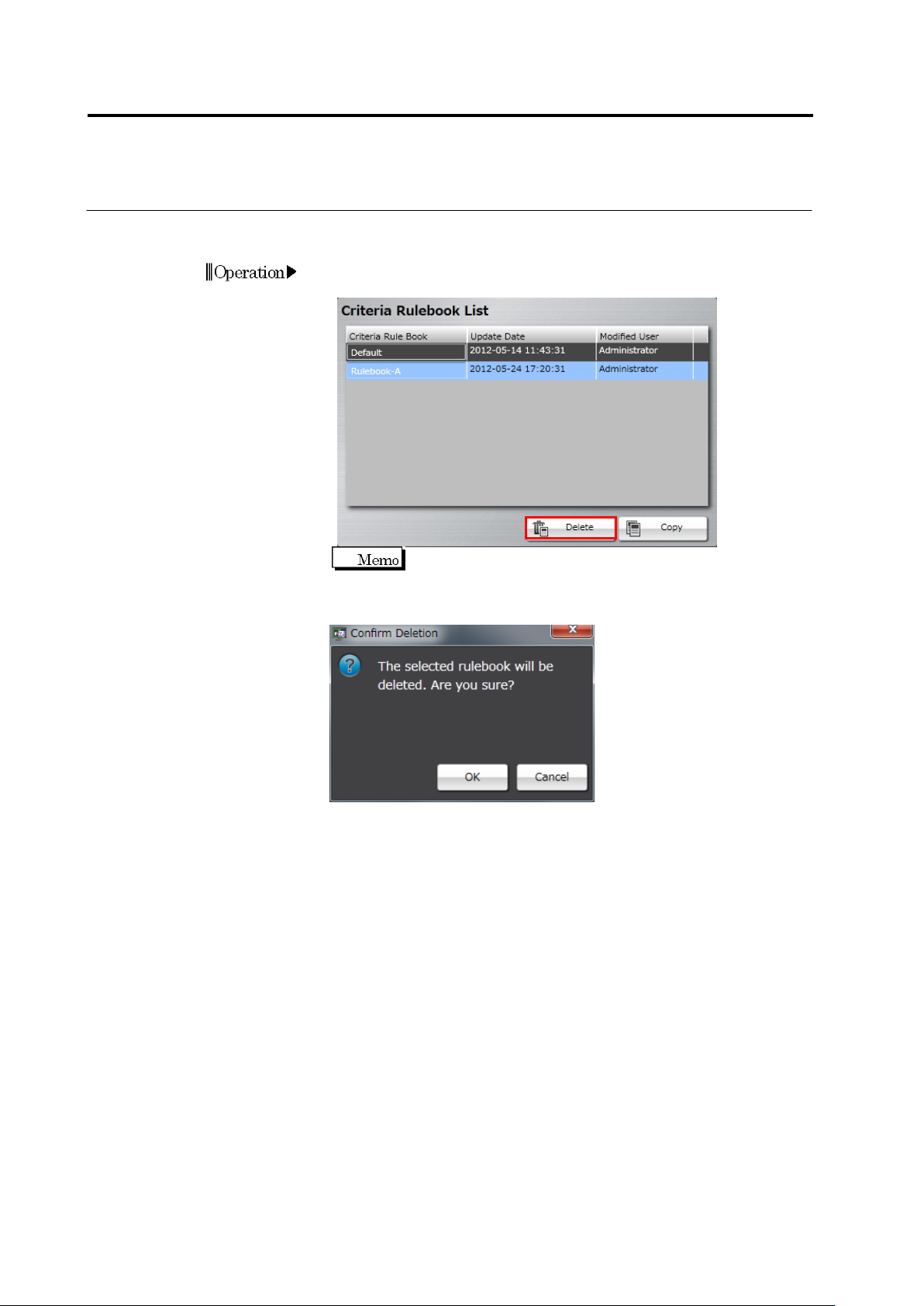

Chapter 3 Man agement Menu 3-6 Deleting Criteria Rulebook 1. Select a criteria rulebook from the criteria rulebook list, and c lick [Delete ]. If there is onl y one criteria rulebook, [Delete] will be invalid. 2. On th…
3.3 Configuring Quality Criteria Setting
3-5
3.3.2 Managing Criteria Rulebook

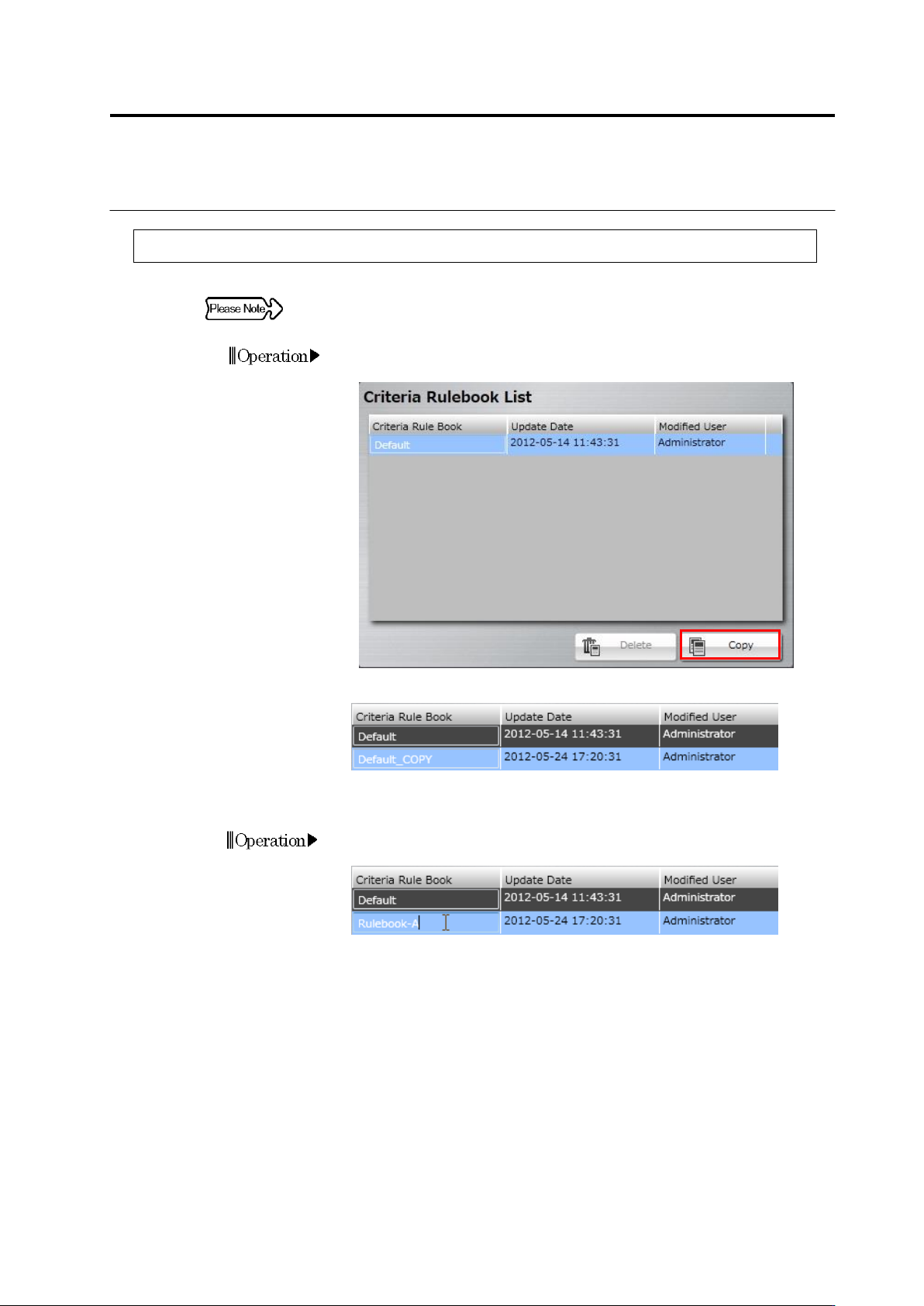

Copying Criteria Rulebook
You will not be able to restore the default criteria rulebook if you directly edit it. If you
want to keep the setup, copy it before editing.
1.
Select a criteria rulebook from the criteria rulebook list, and click
[Copy].
A file "original_criteria_rulebook_name_COPY" will be created.
Changing Criteria Rulebook Name
1.
Click the name of a criteria rulebook you wan to change in the
criteria rulebook list to edit, and enter a new name.
3.3 Configuring Quality Criteria Setting
3-7
3.3.3 Configuring Electrode Type Inspection Criteria
Initial settings of inspection criteria are done for each electrode type in this section.
Setup details are managed in a sheet. If an electrode type is defined in more than one sheet,
the criteria in a sheet with higher priority are used for the initial setting.
1.
Click the [Sheet List] tab, select a sheet of an electrode type you
want to edit from the sheet list, and click [Copy].
The default sheet cannot be edited.
Shown below are electrode types and the corresponding
sheets.
Electrode Type
Sheet Name
Chip Electrode
Default_ChipTermination
Gull-Wing Lead
Default_GullWingLead
Flat Lead
Default_FlatLead
Other Electrode
(Inward L-Shaped Lead, J-
Shaped Lead, Micro Lead)
Default_OtherTermination
Castellation Electrode
Default_CastellatedTermination
No Lead
Default_NoLead
Insertion Lead
Default_InsertionLead
2.
Click the sheet copied from the sheet list to select.
The copied sheet is displayed as priority 1.
To increase the priority, click . To decrease, click
.
