2.1 Bas ics of Teaching 2- 21 Move Window Position W hen fitting the w i ndow position to the PCB image, set the display ma gnification to 1.0 times or higher. 1. Click (Select W indow) button in the Im age Operation t…
Chapter 2 Inspection Programming
2-20
Change Window Size
When adjusting a window, set the display magnification to 1.0 times or higher.
1.
Click (Select Window) or (Create Window) button in the
Image Operation tool bar.
2.
Click the window in the image display area to resize.
3.
Position the mouse cursor on an operating point (shown in a small
square) on the window.
The mouse cursor changes from to .
The window which can be resized or moved is different
depending on the screen. For details, refer to 2.15.1 “Modifying an
Inspection Window.”
The direction of the mouse cursor changes depending on the
operating point to choose, as shown below:
4.
Drag and drop the selected operating point in the window to resize.
Operation
書式変更: フォント : Arial
削除: Modifying an Inspection Window
2.1 Basics of Teaching
2-21
Move Window Position
When fitting the window position to the PCB image, set the display magnification to 1.0 times or
higher.
1.
Click (Select Window) button in the Image Operation tool bar.
2.
Click the window in the image display area to move.
3.
Position the mouse cursor inside the window.
The mouse cursor changes from to .
4.
Drag the window to move and drop it at a desired position, where
the position is fixed.
Operation
Chapter 2 Inspection Programming
2-22

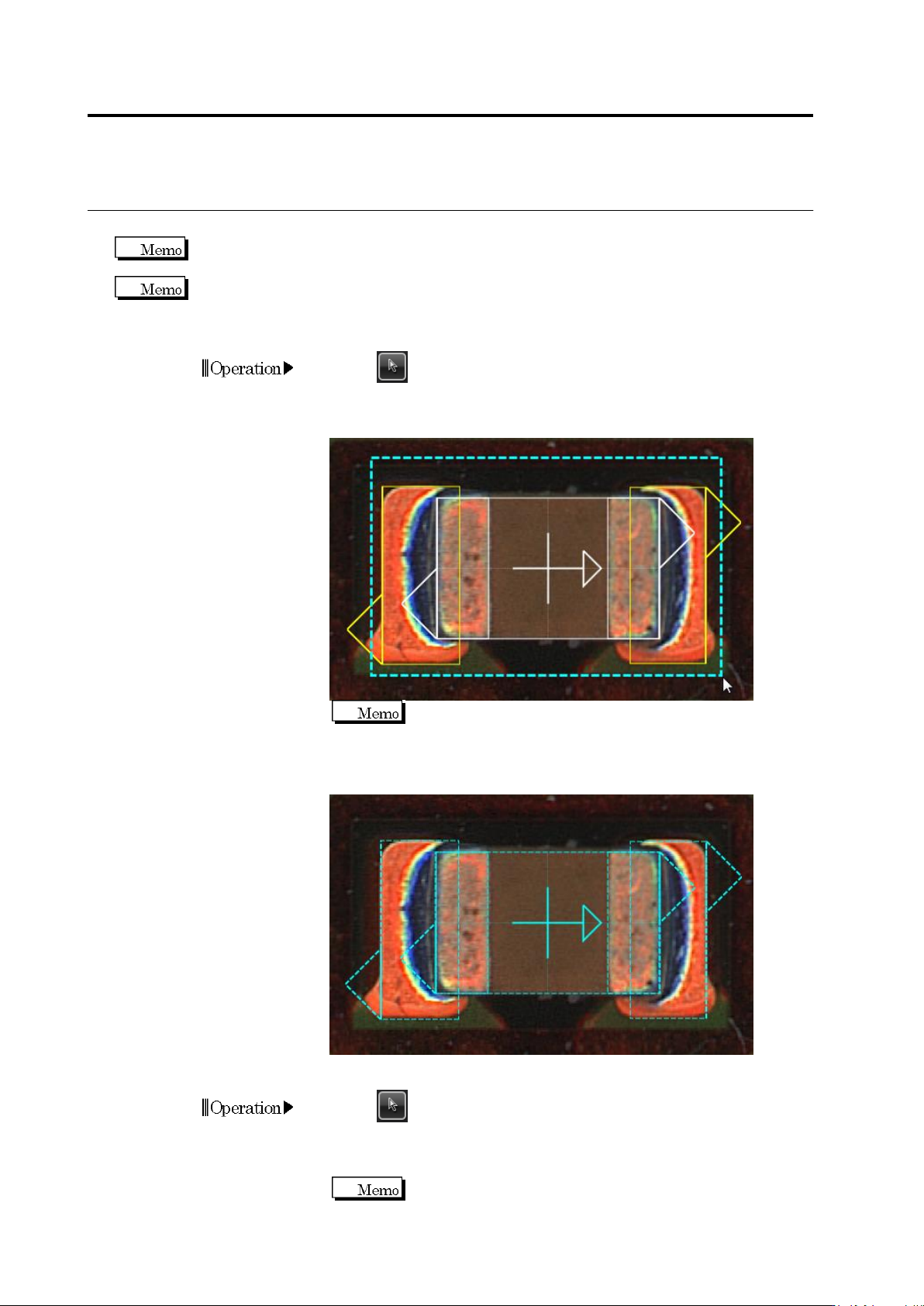

Select Multiple Windows
The Component Body Window and electrode windows are selected as a set except for individual
setting of the component or electrodes.
For land setting, multiple selection is applied to the land window only. For electrode group,
multiple selection is applied to the electrode window only.
<Select Adjacent Windows>
1.
Click (Select Window) button in the Image Operation tool bar.
2.
Drag the mouse cursor to surround multiple windows in the image
display area.
No need to include the direction marks (
△
) on the windows in
the dragging.
3.
Drop the cursor. The windows in the dragged area are now
selected.
<Select Distant Windows>
1.
Click (Select Window) button in the Image Operation tool bar.
2.
Click the individual windows to select while holding down the [Ctrl]
key on the keyboard.
To cancel a selected window, click the same window again
while holding down the [Ctrl] key.
Operation
Operation
