2.13 Outputting Inspection Coverage
2-123
2.13 Outputting Inspection Coverage
This section describes the procedure to output setting details of individual inspection items for the
inspection program in the process of editing.
The setting details for individual component numbers and components are output in csv files.
Component number information cannot be output if teaching is not complete for the component
number.
The component types, inspection window names and inspection items are output in English,
regardless of the language setting.
1.

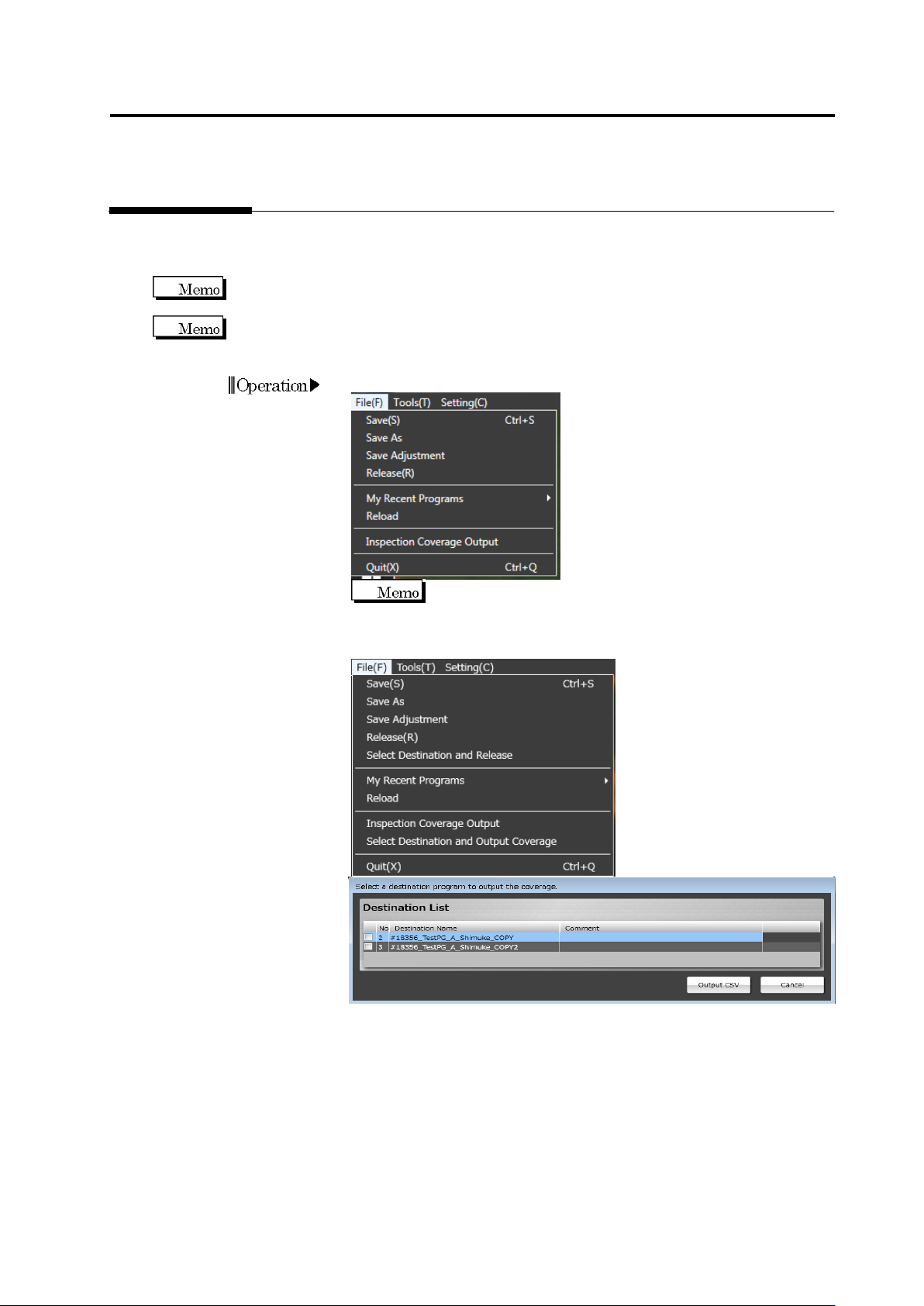

Select [File] - [Inspection Coverage Output] in the menu bar.
Inspection coverage can be output for each destination,
so destinations can be managed using a CSV file. On the menu bar,
select [File] - [Select Destination and Output Coverage], and select
destinations on which coverage is output.
2.

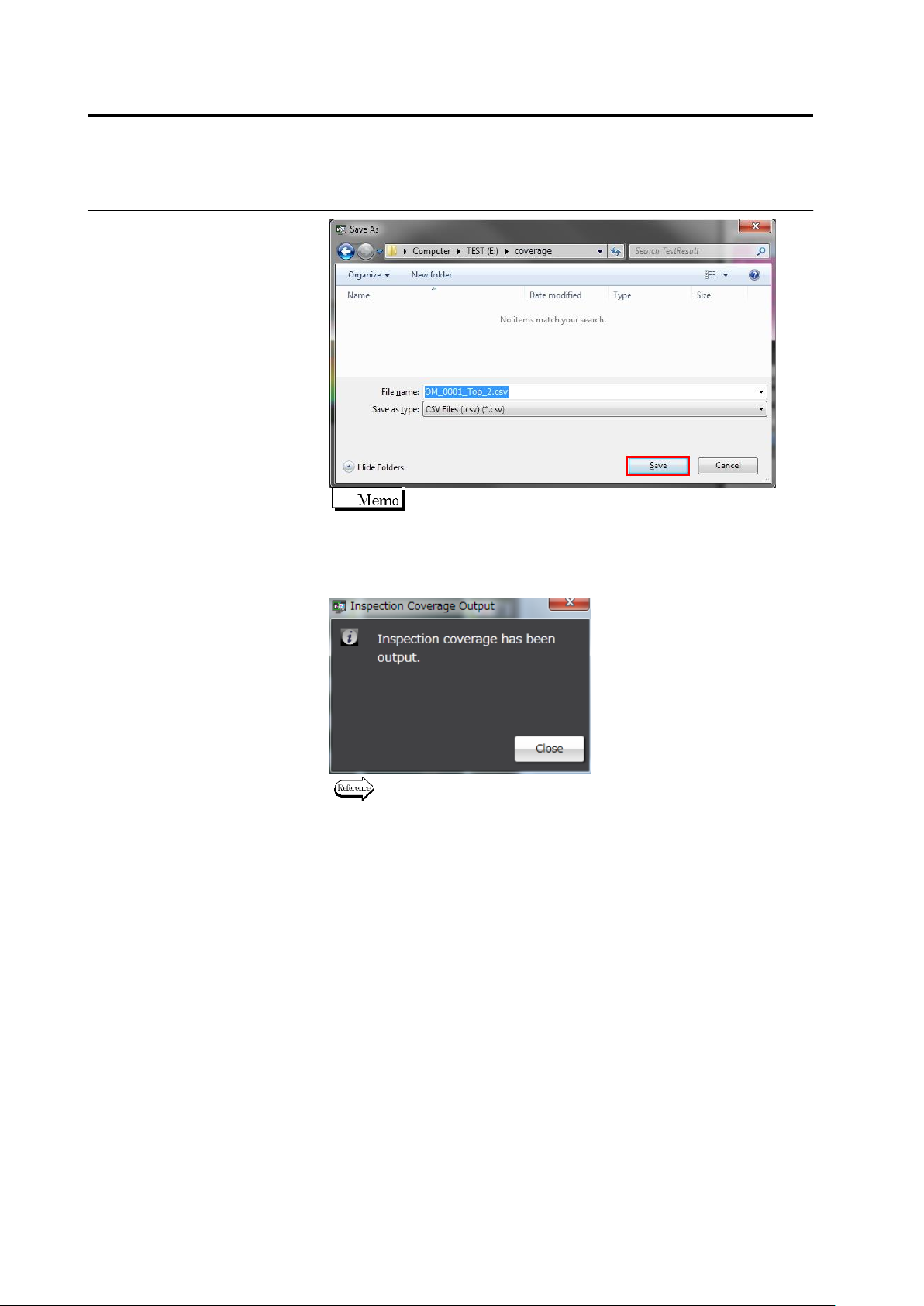

The "Save as" dialog is displayed.
Specify the output location and file name, then, click [Save].
Chapter 2 Inspection Programming
2-124
The format of the default file name is "Inspection Program
Name_Top/Bottom_Inspection Program Revision
Description.csv".
3.
When file output is complete, the following dialog appears. Click
[Close].
Refer to the next page for the details of output formats.
2.13 Outputting Inspection Coverage
2-125
Inspection Coverage Output Format
The following information is output for individual components. Output for individual component
numbers does not output any component-specific information.
Column
Item Name
Description
Availability at
Component. No.
Information
Output
1
No
Component Number
-
2
CircuitId
Circuit Number
-
3
ComponentNumberGroupName
Component Number Group Name
4
ComponentNumberGroupId
Component Number Group ID
5
ComponentNumberName
Component Number Name
6
Revision
Component Number Revision
7
ComponentType
Component Type
8
ComponentBlockUnitName
Component Block Unit Name
-
9
Window
Inspection Window Name
10
Individual
Individual Setting
(True: Available, False: Not available)
-
Setting details for individual inspection items are output to 9th and subsequent columns.
The lists below show the inspection items and display details output for individual inspection
windows.
For the setting item ON/OFF column on the table above, ON/OFF status is output only for
checked items. For the criteria value output column, the criteria value is output only for checked
items. (Input is not possible with teaching for items with "-".)
If criteria values are set for an item, lower limit (LowerLimit) and upper limit (UpperLimit) values
are output after the inspection name.
The same name description may be used for some sub items; therefore, the parent item names
(at the upper columns) are used for identification.
