Chapter 2 Inspection Programming
2-54
2.
Select the component type in the list box.
Refer to "2.1.1 Basic Knowledge of Teaching", "Component Types"
for the types of components.
When a chip resistor, chip capacitor, or other chip/ melf/
component type is selected, the component body window is set up
automatically. If you do not wish this window to be set up
automatically, select [Setting] - [Application Settings] - [Component
Window Setting Method] -> [Manual Settings] on the menu bar.
3.
Find groups with the same shape and same color in the component
number group list.
When setting the “Same size” toggle button ON, if you found an
appropriate component number group, click the thumbnail and
select [Add], then go to step 9.
If you couldn't, go to step 4.
Component number groups are configured based on the
following guideline.
- Components with the same shape/size/electrode count shall
belong to the same group.
- A group shall be configured for each color, e.g. white, black, and
brown based on the visual check.
- A group shall be configured for each component color if there are
multiple component colors.
(e.g.) Configuring a group of chip resistor (black) with the same
shape and size.

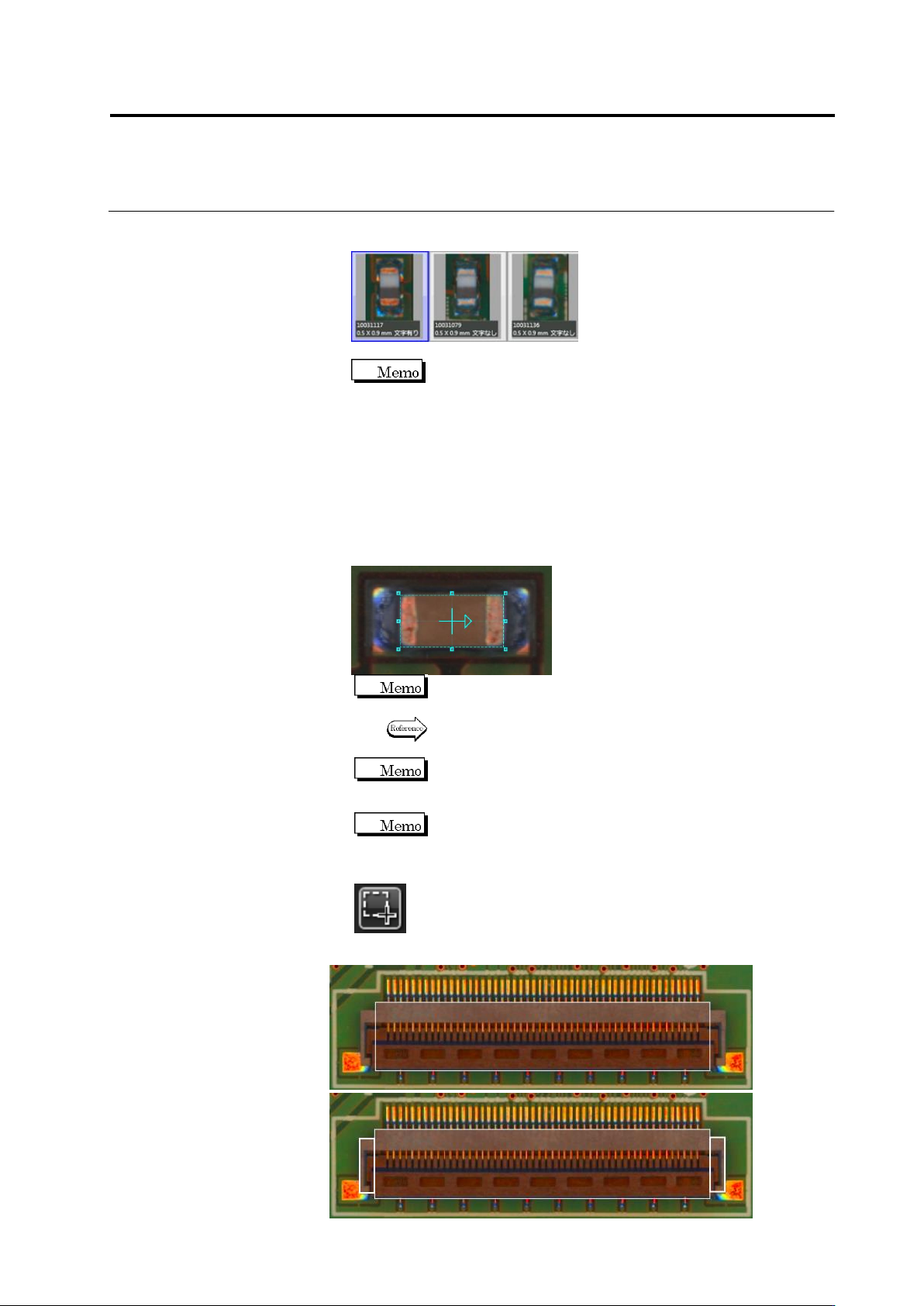

2.4 Registering for Inspection
2-55
(e.g.) Configuring a group of chip capacitor (white/gray) with the
same shape and size.
Move the mouse cursor on the component number
group thumbnail, the component number group preview window
appears on the image. When a component number is added to the
component number group, the setting of the component number is
synchronized with the component number group. While creating a
new component number group, saving/loading an inspection
program before component registration (automatic) shows a dark
preview image. After performing component registration (automatic),
the image appears.
4.
Draw a Component Body Window in the image display area.
Magnify the display area to draw a window for more precise
window positioning.
Refer to "2.1.3 Image Display Area Operation" for the image
display area operation.
The "+" mark moves to the center of the window after the
component window is formed.
If you cannot configure a component outline shape using a
rectangular frame for an odd-shaped component after
configuring the component body window, add a window to
complement the component body window.
Create Window Button
If a component outline is out of the component body window, add a plus
window.
Chapter 2 Inspection Programming
2-56
Create Mask Window Button
If a PCB is inside the component body window, add a minus window.
Right-clicking on a plus/minus window displays the
context menu.
When selecting [Copy on 2 Sides], the window can be
copied as rotated by 180 degrees around the component.
When selecting [Copy on 4 Sides], the window can be
copied as rotated by 90, 180, and 270 degrees around
the component.
Selecting [Delete] allows you to delete the window.
By pressing the [R] key as holding the [Ctrl] key on the
keyboard, the plus or minus window being selected can
be rotated by 45 degrees clockwise.
5.
Check that the degree is correct if the component number
registered in the library is used.
Select the [Show Model] checkbox. A model image corresponding to
the currently specified degree is displayed. Check the mounting
position including the direction of the polarity.
