2.1 Basics of Teaching
2-21
Move Window Position
When fitting the window position to the PCB image, set the display magnification to 1.0 times or
higher.
1.
Click (Select Window) button in the Image Operation tool bar.
2.
Click the window in the image display area to move.
3.
Position the mouse cursor inside the window.
The mouse cursor changes from to .
4.
Drag the window to move and drop it at a desired position, where
the position is fixed.
Operation
Chapter 2 Inspection Programming
2-22
Select Multiple Windows
The Component Body Window and electrode windows are selected as a set except for individual
setting of the component or electrodes.
For land setting, multiple selection is applied to the land window only. For electrode group,
multiple selection is applied to the electrode window only.
<Select Adjacent Windows>
1.
Click (Select Window) button in the Image Operation tool bar.
2.
Drag the mouse cursor to surround multiple windows in the image
display area.
No need to include the direction marks (
△
) on the windows in
the dragging.
3.
Drop the cursor. The windows in the dragged area are now
selected.
<Select Distant Windows>
1.
Click (Select Window) button in the Image Operation tool bar.
2.
Click the individual windows to select while holding down the [Ctrl]
key on the keyboard.
To cancel a selected window, click the same window again
while holding down the [Ctrl] key.
Operation
Operation
2.1 Basics of Teaching
2-23

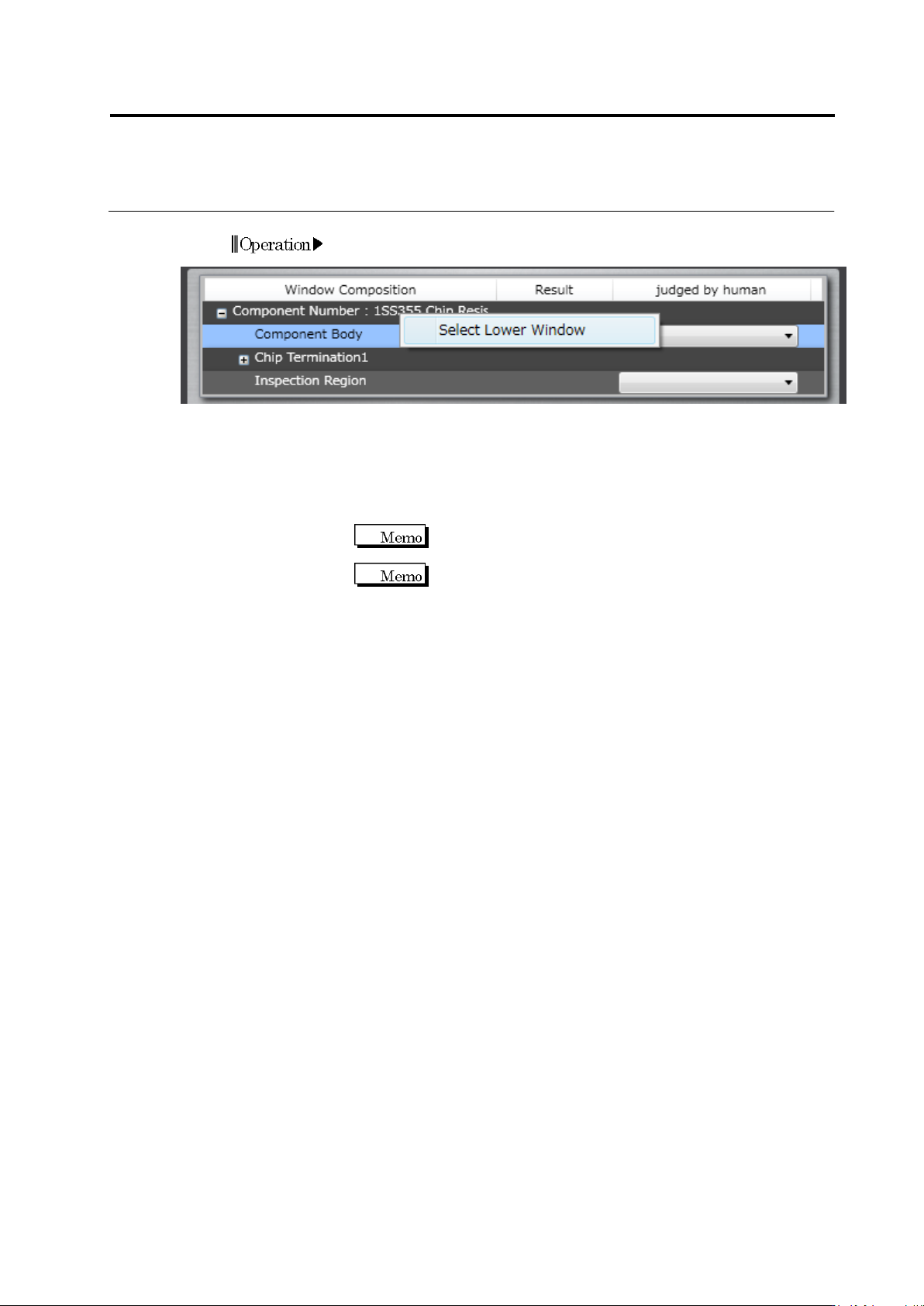

<Select in Window Composition List>
1.
Open the [Criteria Setting] screen.
2.
Right-click the [Component Number] row in the window composition
list. To select electrode group windows, right-click the [Electrode
Group] row.
3.
Clicking [Select Lower Window] can select all the windows at lower
levels.
Specific windows can be deselected or added to selection by
clicking them while holding down the [Ctrl] key.
To select consecutive windows simultaneously, click the first
window and then the last one while holding down the [Shift]
key.
