5.1 Printing Type and Workflow
110
There are basically three types of printing operations.
5.1 Printing Type and Workflow
To print data automatically
during measurement
To selectively print data
after measurement
Auto Print
(default setting)
When the "Send Print Key" is exe-
cuted by using Model 9333, print
contents can be selected before
printing. This is convenient to print
different items each time.
At the File screen, the file list is print-
ed. At other screens, a list is printed.
Selection Print
When the Memory function is used,
data are acquired for the recording
length and then printed automatically.
When the FFT function is used, data is
printed automatically after FFT analy-
sis is exited.
In both cases, print contents are se-
lected before the measurement.
To print data immediately
when the "Send Print Key" is
executed by using Model
9333 after measurement
If the "Send Print Key" is executed
by using Model 9333, at Waveform
screen: Waveform
At File screen: File list
At other screen: List
During waveform printing, the range
specified with [Print Area] is print-
ed.
Quick Print
Prepare Model 9333 LAN
Communicator
Set measurement configuration
Set print target for
[Auto Print]
Set the print contents
Measurement
Print
[Printer] sheet
The followings can be print-
ed simultaneously.
• Waveform data
• Numeric value calculation
results
Prepare Model 9333 LAN
Communicator
Set [Print Select] to [Yes].
Start and Stop Measurement
Send Print Key
Select the print contents
Print
[Printer] sheet
Settings window
Either of the following can
be printed.
• Whole waveforms
• A-B waveforms
• Post-/Pre-Trigger waveforms
• Lists (Settings List)
• Report
Prepare Model 9333 LAN
Communicator
Set [Print Select] to [No].
Set the print area
Start and Stop Measurement
Send Print Key
Print
[Printer] sheet
During waveform printing,
either of the following can
be printed.
• Whole waveforms
• A-B waveforms
When both Auto Print and Auto Save are enabled, Auto Save is executed first.
However, when the Roll Mode function (default setting: Auto) is used with the
Memory function, Auto Print has priority.

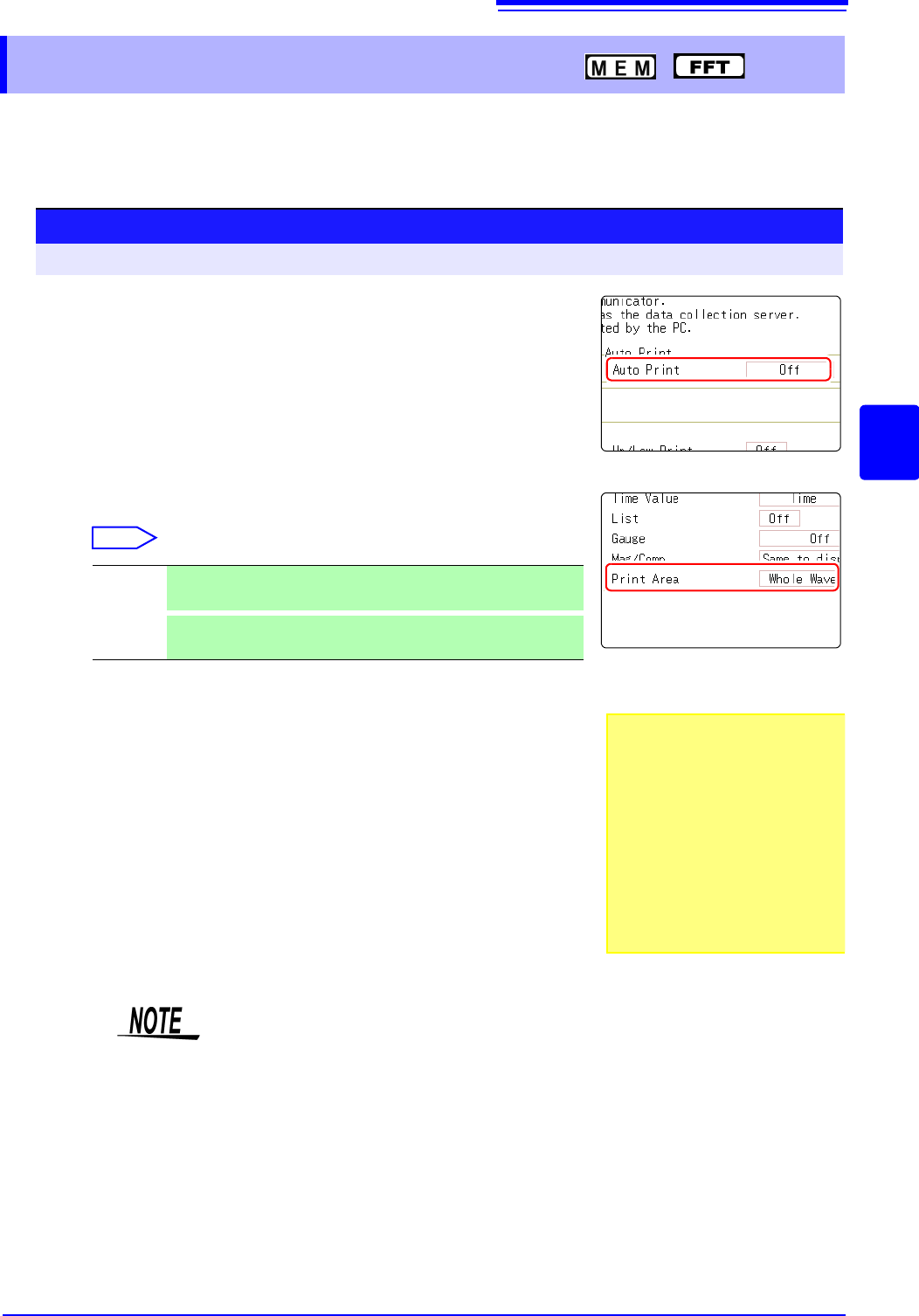

5.2 Making Auto Print Settings
111
6
Chapter 5 Printing
5
This applies to the Memory function, Recorder function, and FFT function.
Make these settings before measurement.
Measurement data is printed automatically when you press the
START key to start measurement.
Make sure that the PC connected via LAN is prepared.
When performing waveform evaluation, the evaluation area will be printed
at the same time. To disable printing of the evaluation area, set waveform
evaluation to
[OFF]. ( p.300)
5.2 Making Auto Print Settings
Procedure
To open the screen: Press the SYSTEM key [Printer] sheet
1
Enable Auto Print.
(Memory Function, FFT Function case:)
Move the cursor to the [Auto Print] item.
Select [On].
Default setting: Off (Auto Print is not carried out)
2
(Memory Function case:)
Make print area settings as required.
Move the cursor to the [Print Area] item.
Select
3
Check the measurement conditions and start the measure-
ment. (Press the START key.)
Memory Function case:
Data are acquired for the recording length and then printed auto-
matically.
FFT Function case:
Data is printed automatically after FFT analysis is exited.
When printing is carried out again after stopping, the range selec-
tion will be used.
Whole
Wave
Print all waveform data in internal memory of instrument. (default
setting)
A-B
Wave
Print only A/B cursor defined range of waveform data in internal
memory of instrument.
• To output the waveform
data to the PC con-
nected via LAN
Model 9333 LAN Communicator
is required to be installed on the
PC to which the data is to be out-
put. For more information about
how to operate and configure
Model 9333 LAN Communicator,
in addition to install it on the PC,
see the instruction manual of
Model 9333 LAN Communicator.
• When both Auto Print and Auto Save are enabled, Auto Save is executed first.
• However, when the Roll Mode function (default setting: Auto) is used with the
Memory function, Auto Print has priority.
• If A/B cursor is On during manual printing after acquiring waveform data, the
range will be printed.

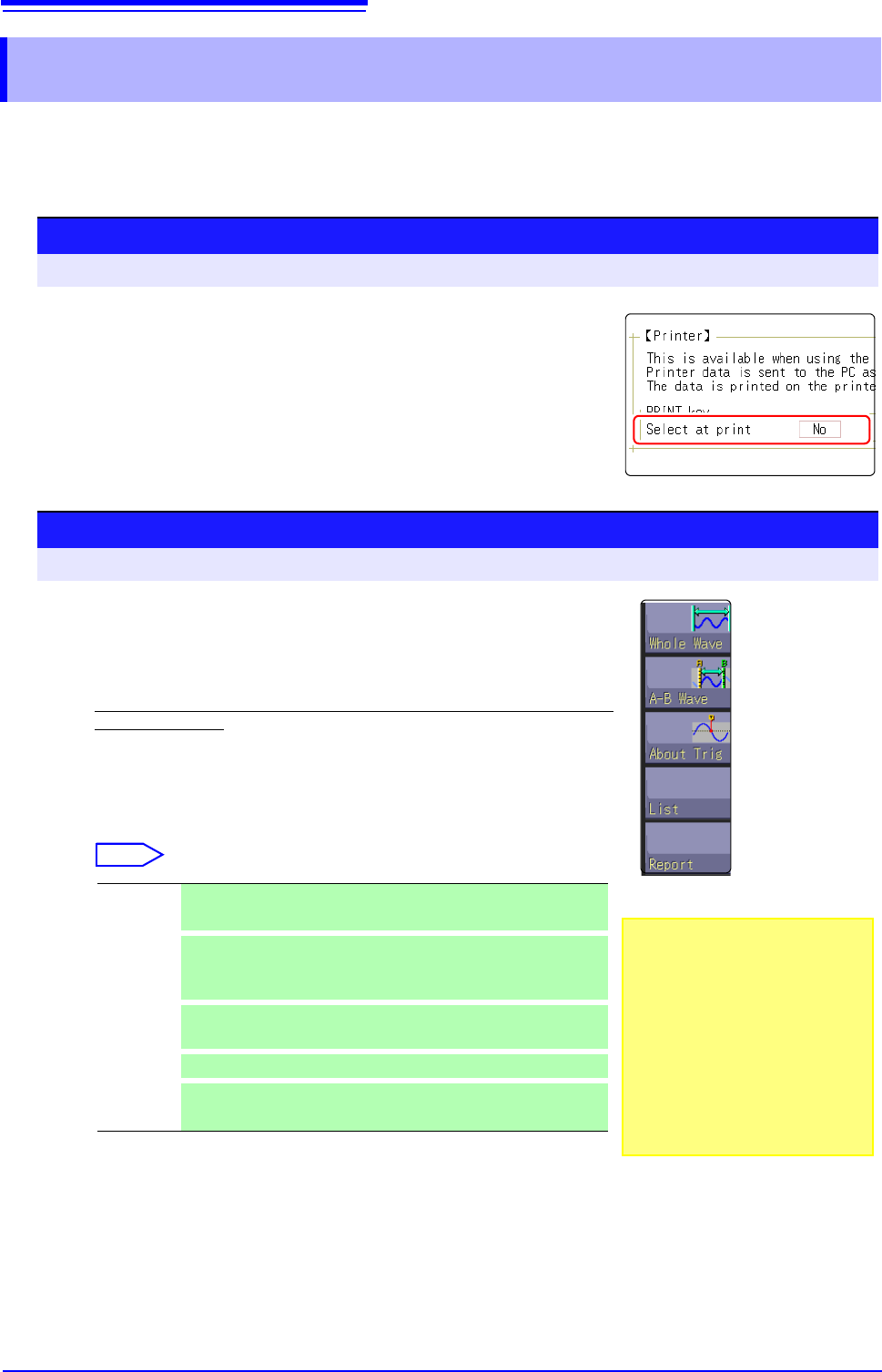

5.3 Send PRINT key
112
If the "Send Print Key" is executed by using Model 9333, the data are printed after the print range
and types are selected.
This is also useful to prevent inadvertent printing due to operation errors.
When performing waveform evaluation, the evaluation area will be printed at the same time.
To disable printing of the evaluation area, set waveform evaluation to [OFF]. ( p.300)
5.3 Send PRINT key
Procedure
To open the screen: Press the SYSTEM key [Printer] sheet
1
Enable data selection at time of printing
Move the cursor to the [Select at print] item.
Select [Yes].
Procedure
To open the screen: Press the DISP key File screen
2
Start and stop the measurement.
Press the START key to start the measurement.
Press the STOP key to finish the measurement.
During measurement, printing is not possible. Measurement must be stopped be-
fore starting to print.
3
Select print contents and execute printing
If the "Send Print Key" is executed by using Model 9333, the GUI
[Select at print] is displayed at the right on the screen.
Select
When the selection (except for [Cancel]) has been made, printing starts.
Whole
Wave
Print all waveform data in internal memory of instrument. (default
setting)
A-B Wave
Print only A/B cursor defined range of waveform data in internal
memory of instrument. (Memory Function and Recorder Function
only)
About Trig
Print waveform data for 10 divisions before and after trigger posi-
tion. (Memory Function only)
List
Print main settings.
Report
Print the report.
See: "5.5.2 Report Print (A4 Size Print)" ( p.116)
• To output the waveform
data to the PC con-
nected via LAN
Model 9333 LAN Communicator
is required to be installed on the
PC to which the data is to be out-
put. For more information about
how to operate and configure
Model 9333 LAN Communicator,
in addition to install it on the PC,
see the instruction manual of
Model 9333 LAN Communicator.
