18.7 Disposing of the Instrument (Lithium Battery Removal)
384

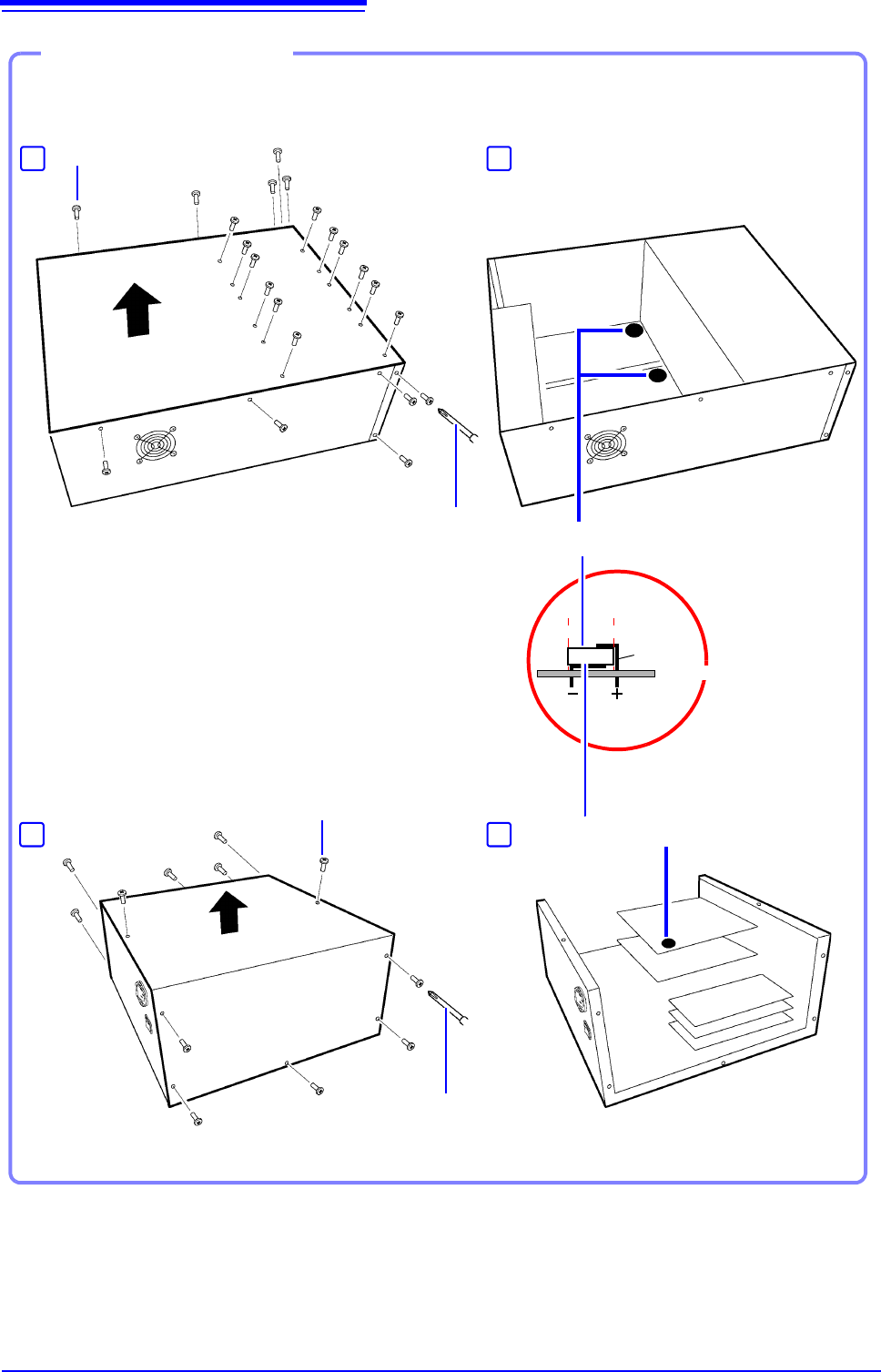

Lithium Battery Removal
1 2
Lead
Lithium Battery
Screw
Phillips screwdriver
MR8740
MR8741
Lithium Battery
1 2
Screw
Phillips screwdriver
Circuit board
Appendix 1 Default Values for Major Settings
A1
Appendix
Default values for major settings are listed below.
Appendix
Appendix 1 Default Values for Major Settings
Screen Sheet / Window Items Settings
Status
Status
Timebase
Memory 5 s/div
Recorder 10ms
Shot 25 div
Format
Memory/Recorder Single
Roll Mode (Memory) Auto
Num Calc. Numerical Calc Off
System
Environment
Grid Doted Line
Time Val Time
Beep Sound Warn
Auto Scal On
File Save
Auto Save Off
Interface
Interface LAN
IP Address 192.168.0.2
Channel
Unit List
Wave_Disp (analog) Color 1 - 16
Wave_Disp (Logic) Off
Logic Width Normal
Range Maximum sensitivity
Coupling DC
Scaling
Disp Ratio
Each channel Off
Waveform Trigger settings window
Trigger Mode
Memory Auto
Recorder Single
PreTrigger (Memory) 0%
Trigger Source OR
Timing (Recorder) Start
Trigger for each module Off
Timer Trigger Off
Trigger synchronization (MR8740) Off
External Trigger (MR8741) Off
Appendix 2 Reference
A2
Refer to the following table for information about the waveform file sizes.
References
References of the file size _______________________________________
Appendix 2 Reference
Appendix 2.1 Waveform File Sizes
File Type Function Sizes Calculation method
MEM File Memory Function (p.A2) (p.A3)
REC File Recorder Function (p.A2) (p.A3)
FFT File FFT Function (p.A2) (p.A4)
CSV (Text) File Memory Function (p.A3) (p.A4)
MEM File Size (Memory Function)
File size = setting size + data size
Calculation method: "MEM File" (p.A3)
Recording
length (div)
Data Quanti-
ty
Saved Channels
1 2 4 8 16 32
100 10,001
48 KB 68 KB 108 KB 1883 KB 349 KB 669 KB
1,000 100,001 224 KB 420 KB 811 KB 1.6 MB 3.1 MB 6.1 MB
10,000 1,000,001 1.9 MB 3.8 MB 7.7 MB 15 MB 31 MB 61 MB
100,000 10,000,001 19 MB 38 MB 76 MB 153 MB 305 MB 610 MB
1,000,000 100,000,001 191 MB 381MB 762 MB - --
REC File Size (Recorder Function)
Filesize = setting size + data size
Calculation method: "REC File" (p.A3)
Recording
length (div)
Data Quanti-
ty
Saved Channels
1 2 4 8 16
32
100
10,001
68 KB 107 KB 186 KB 345 KB 661 KB 1.3 MB
1,000
100,001 419 KB 105 KB 1.6 MB 3.1 MB 6.1 MB 12 MB
10,000
1,000,001 3.8 MB 7.7MB 15 MB 31 MB 61 MB 122 MB
20,000
2,000,001 7.7 MB 15MB 31 MB 61 MB 122 MB 244 MB
50,000
5,000,001 19 MB 38 MB 76 MB 153 MB 305 MB 610 MB
FFT File Size (FFT Function)
Data Quantity
Number of calculations
1 2
1,000 388 KB 729 KB
2,000 728 KB 1.4 MB
5,000 1.7 MB 3.4 MB
10,000 3.4 MB 6.7 MB
File size = header size + The size of the time axis data + the size of the mid-term data
Calculation method:"FFT File" (p.A4)
