12.8 FFT Analysis Modes
285
11
Chapter 12 FFT Function
12
Waveform Example

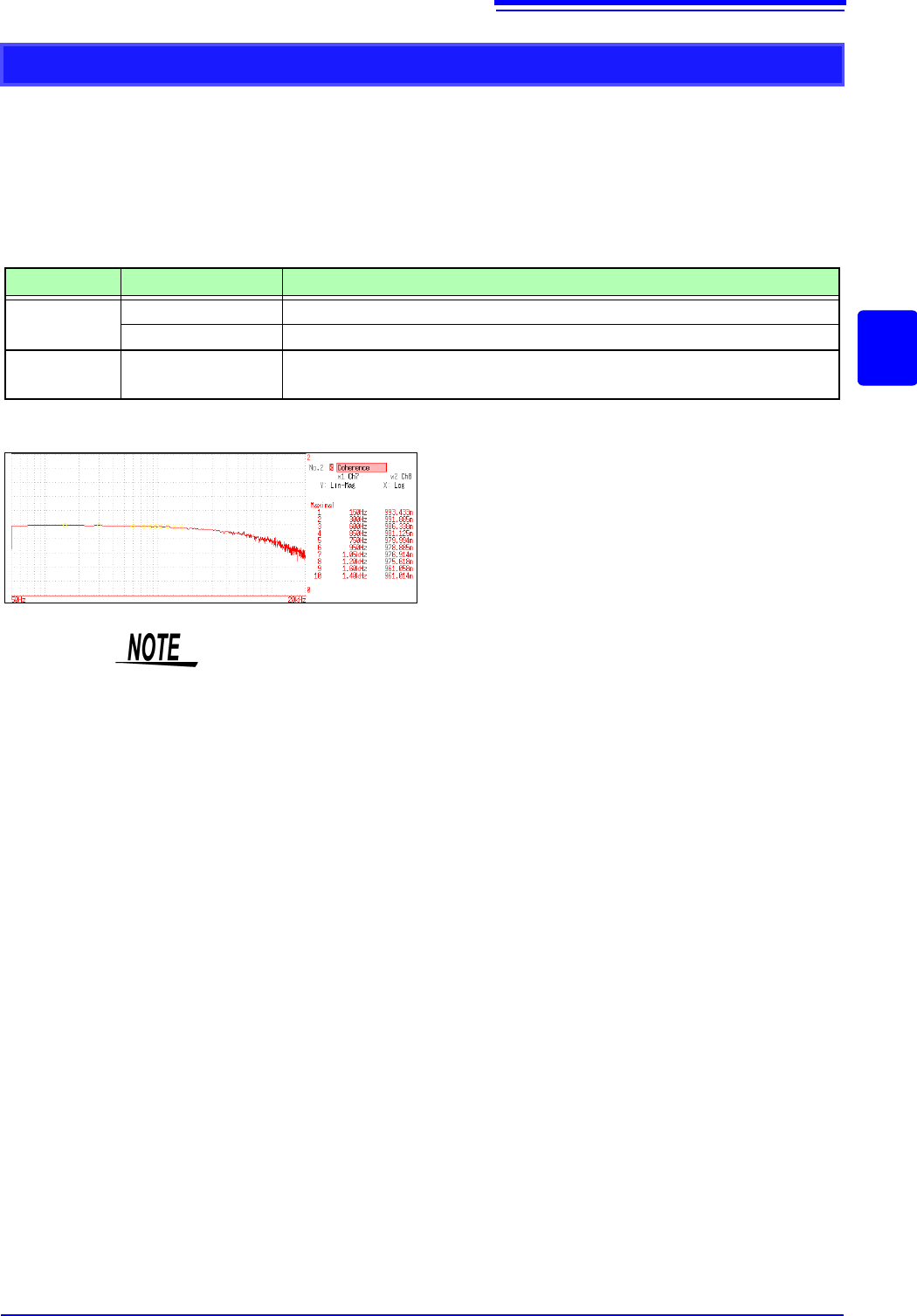

Coherence Function
This function gives a measure of the correlation (coherence) between input and output signals. Val-
ues obtained are between 0 and 1.
Main uses:
• To evaluate transfer functions
• In a system with multiple inputs, to inspect the effect of each input on the output
See: "12.8.2 Analysis Mode Functions" (p.293)
Axis Display Type Description
X axis
Linear Frequency is displayed with equal spacing
Log Frequency display of logarithm interval
Y axis Lin-Mag
Displays the causal relationship and degree of relationship between two input
signals, as a value between 0 and 1 (dimensionless units).
Normal display
X axis: Log
Y axis: Lin-Mag
• With a single measurement, the coherence function gives a value of one for all
frequencies. Spectrum (frequency-domain) averaging should always be per-
formed before measurement (analysis is not available with time-domain aver-
aging).
• The coherence function has two general definition formulas. For the definition
formulas, see"12.8.2 Analysis Mode Functions" (p.293).
12.8 FFT Analysis Modes
286
Waveform Example
Emphasizing only a Specific Portion (Highlighted Display)
A specific portion of a phase spectrum can be emphasized and displayed.
See: "12.3.8 Emphasizing Analysis Results (phase spectra only)" (p.259)

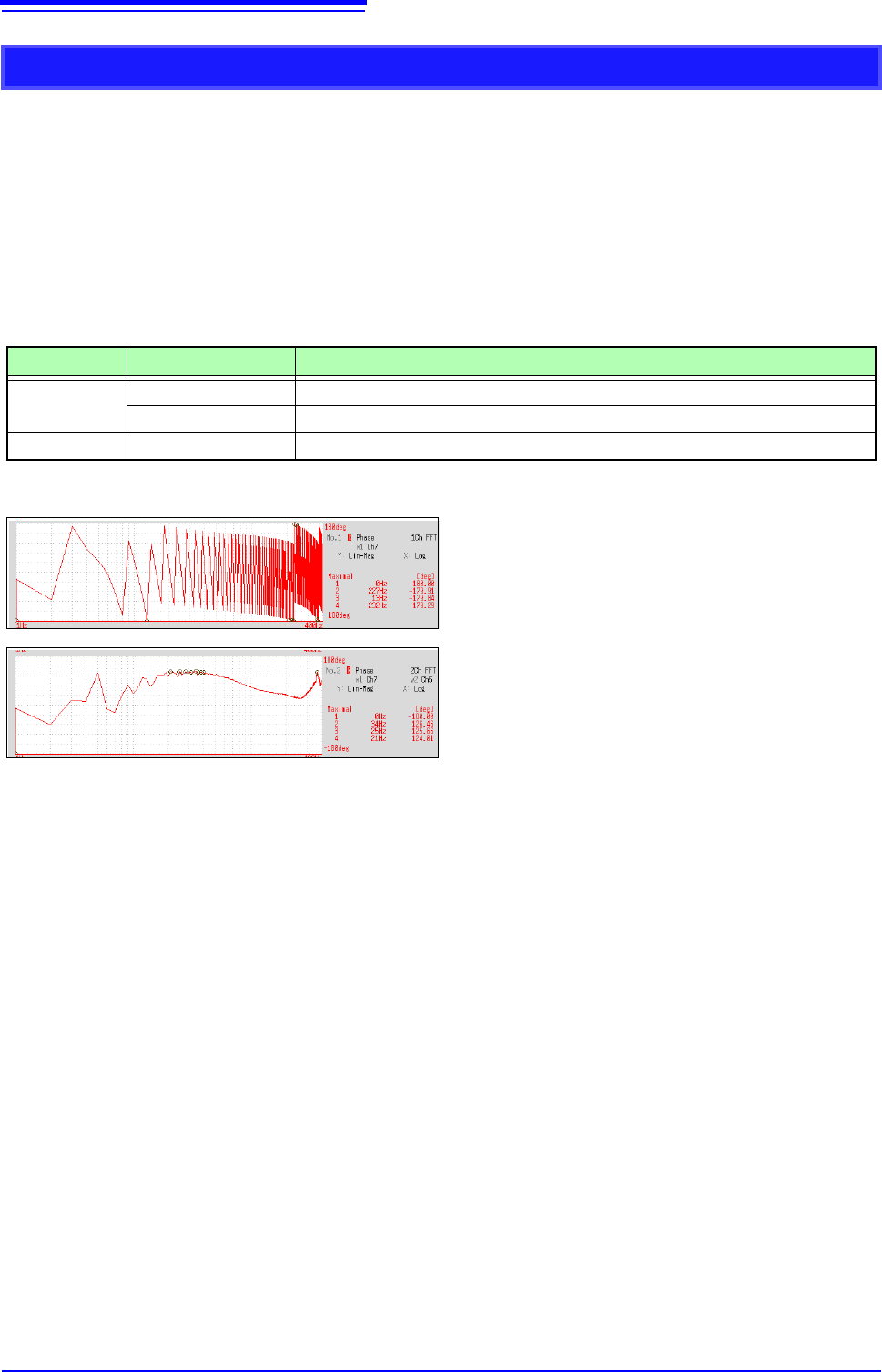

Phase Spectrum
Shows the phase characteristics of the input signal.
Main uses:
• To inspect the phase spectrum of channel 1. Displays the phase of a cosine waveform as a reference (0º).
• To inspect the phase difference between channels 1 and 2.
See: About the Functions"12.8.2 Analysis Mode Functions" (p.293)
1 Ch FFT: Displays the phase of the signal on channel 1. Displays the phase of a cosine waveform as a ref-
erence (0º). Unless the waveform is synchronous, phase values are unstable.
2 Ch FFT: Displays the phase difference between channels 1 and 2. Positive values indicate that the phase
of channel 2 is leading.
Axis Display Type Description
X axis
Linear Frequency is displayed with equal spacing
Log Frequency display of logarithm interval
Y axis Lin-Mag Analysis values are displayed linearly.
1chFFT
X axis: Log
Y axis: Lin-Mag
2chFFT
X axis: Log
Y axis: Lin-Mag
12.8 FFT Analysis Modes
287
11
Chapter 12 FFT Function
12
Waveform Example
Auto Correlation Function
Shows the correlation of two points on the input signal at time differential t.
Main uses:
• To detect periodicy in irregular signals (improving and detecting SNR)
• To inspect periodic components in a noisy waveform.
See: About the Functions"12.8.2 Analysis Mode Functions" (p.293)
Axis Display Type Description
X axis Linear
Time display
The center (
t = 0) is the reference. To the right is lag time (+t), and to the left is
lead time (-t)
Y axis Lin-Mag
+1 to -1 (dimensionless units)
The closest correlation at time differential
t is +1, and the least correlation is 0.
-1 indicates completely reversed polarity.
Because of the characteristics of the function, t = 0 becomes +1.
X axis: Linear
Y axis: Lin-Mag
This instrument provides a circular auto-correlation function. Analysis results are
normalized to the maximum value.
