5.5 Miscellaneous Printing Functions 117 6 Chapter 5 Printing 5 This function prints out function status information and channel setting information in list format. The list settings are the same as for the List function…
5.5 Miscellaneous Printing Functions
116
You can produce a hard copy of the screen display, perform report printing or list printing.
To print the hardcopy of the screen, display the screen to be printed, and then execute the "Print
Screen" by using Model 9333.
The waveform range as displayed on the Waveform screen, upper and lower limit values, and chan-
nel settings are printed in A4 size. When zoom display is enabled, two zoom display screens are
printed.
The A/B cursor pair shown on the Waveform screen is also printed.
If the comment type is set to
[Comment] or [Set&Com] on the Comment sheet of the Channel
screen, the title comment can also be printed. ( )
5.5 Miscellaneous Printing Functions

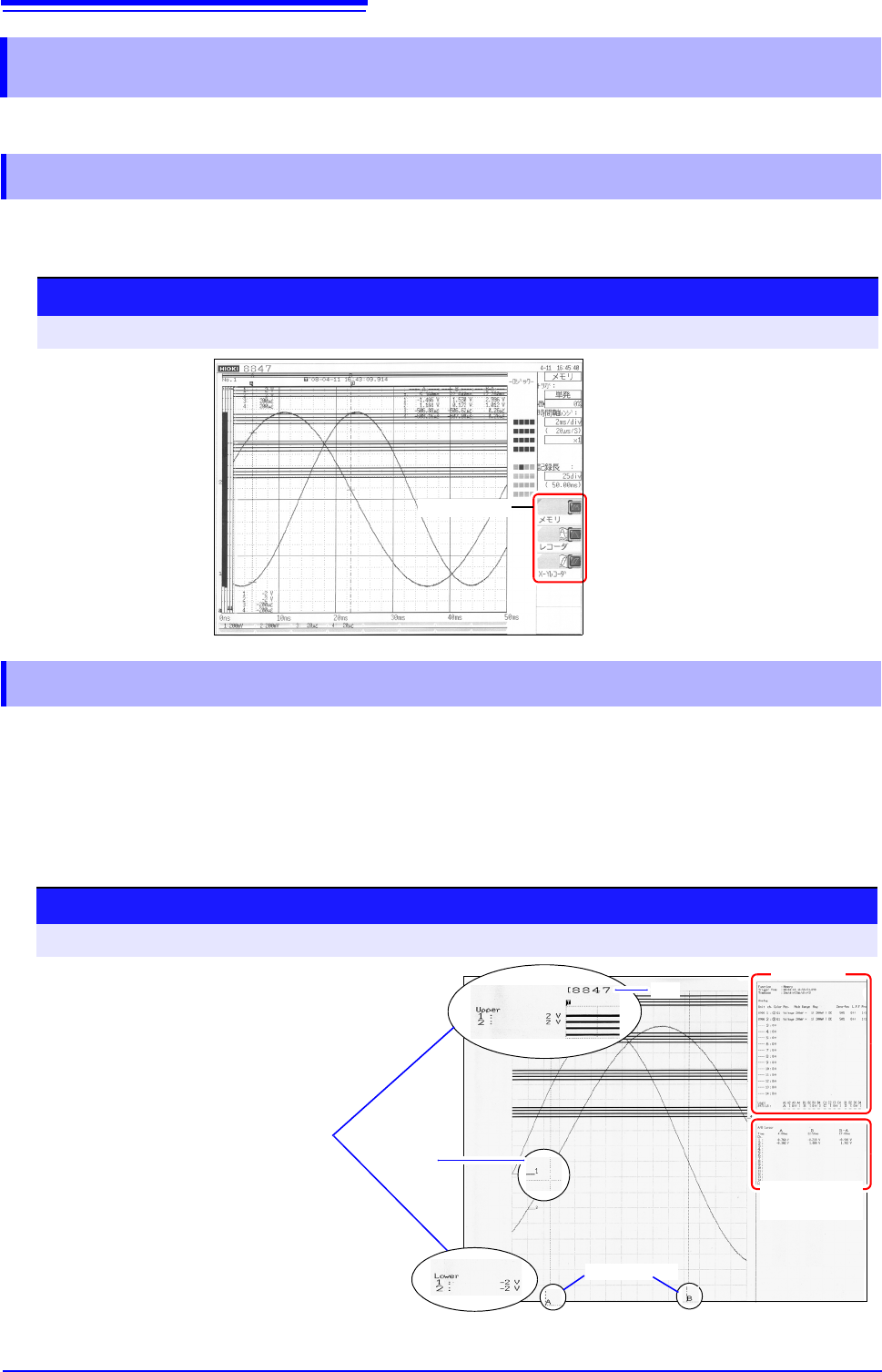

5.5.1 Screen Hard Copy
GUI print setting
To open the screen: Press the SYSTEM key [Printer] sheet
<Print Example>
GUI section
5.5.2 Report Print (A4 Size Print)
See: "7.1.1 Adding a Title Comment" ( p.138)
Procedure
To open the screen: Press the DISP key File screen, Press the DISP key Select the [WAVE WIDTH] menu
A/B Cursor
Execute the "Get/Print Report Image" by using
Model 9333.
<Print Example>
Settings
Cursor A/B
Value
Channel
Title
Upper and Lower
Limit Value
5.5 Miscellaneous Printing Functions
117
6
Chapter 5 Printing
5
This function prints out function status information and channel setting information in list format. The
list settings are the same as for the List function. ( )
Execute the "Send Print Key" by using Model 9333.
A text document edited on a PC can be printed together with a waveform.
1. Create a text file using [Notepad] or another suitable application on the PC.
The maximum size of the text comment that can be imported to the MR8847 is 104 x 200.
Print width will be adjusted to the widest line.
2. Press the SYSTEM key and set [Text Comment] on the [Printer] sheet.
Select
3. Press the FILE key and use the File screen to import the text file created on the
PC into the MR8847.
See: "4.3 Loading Data" ( p.99)
The text file content will be printed along with the waveform when printing.
Print Example _ Positioning with regard to other print items

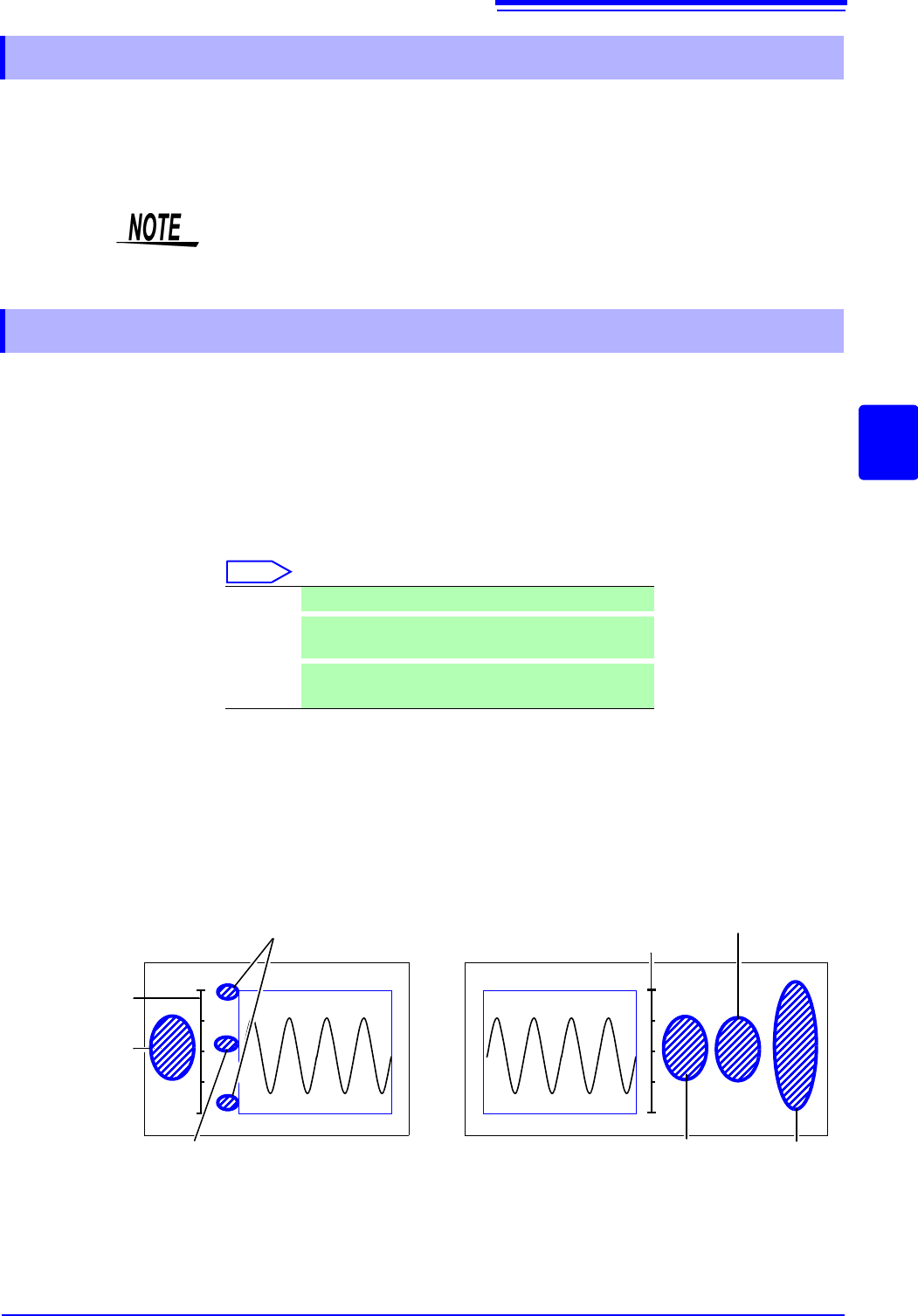

5.5.3 List Print
See: "Print a list of settings" ( p.114
The printed list contains the setting parameters for the acquired waveform data.
The list content will not change even if the settings were changed after the wave-
form data were acquired.
5.5.4 Text Comment Printing
Off Text comment is not printed. (default setting)
Before
Wave
Text comment is printed before waveform.
After
Wave
Text comment is printed after waveform.
Upper and Lower limit value
Text comment
List
Zero position comment
<Printing before waveform selected>
Numerical calculation results
Text comment
<Printing after waveform selected>
Gauge
Gauge
5.5 Miscellaneous Printing Functions
118
