6.1 Reading Measurement Values (Using the A/B Cursors)
120
• Time difference, frequency and potential difference (and when scaling is enabled, scaling values)
can be read as numerical values using the A/B cursors on the Waveform screen. The cursors also
allow specifying the calculation and X-Y synthesis range.
• When displaying the X-Y waveform, the A/B cursors can be used to read the measurement val-
ues. Also with a split screen, A/B cursors can be used separately in the graphs to read the poten-
tial difference between the A and B points.
6.1 Reading Measurement Values (Using the A/
B Cursors)

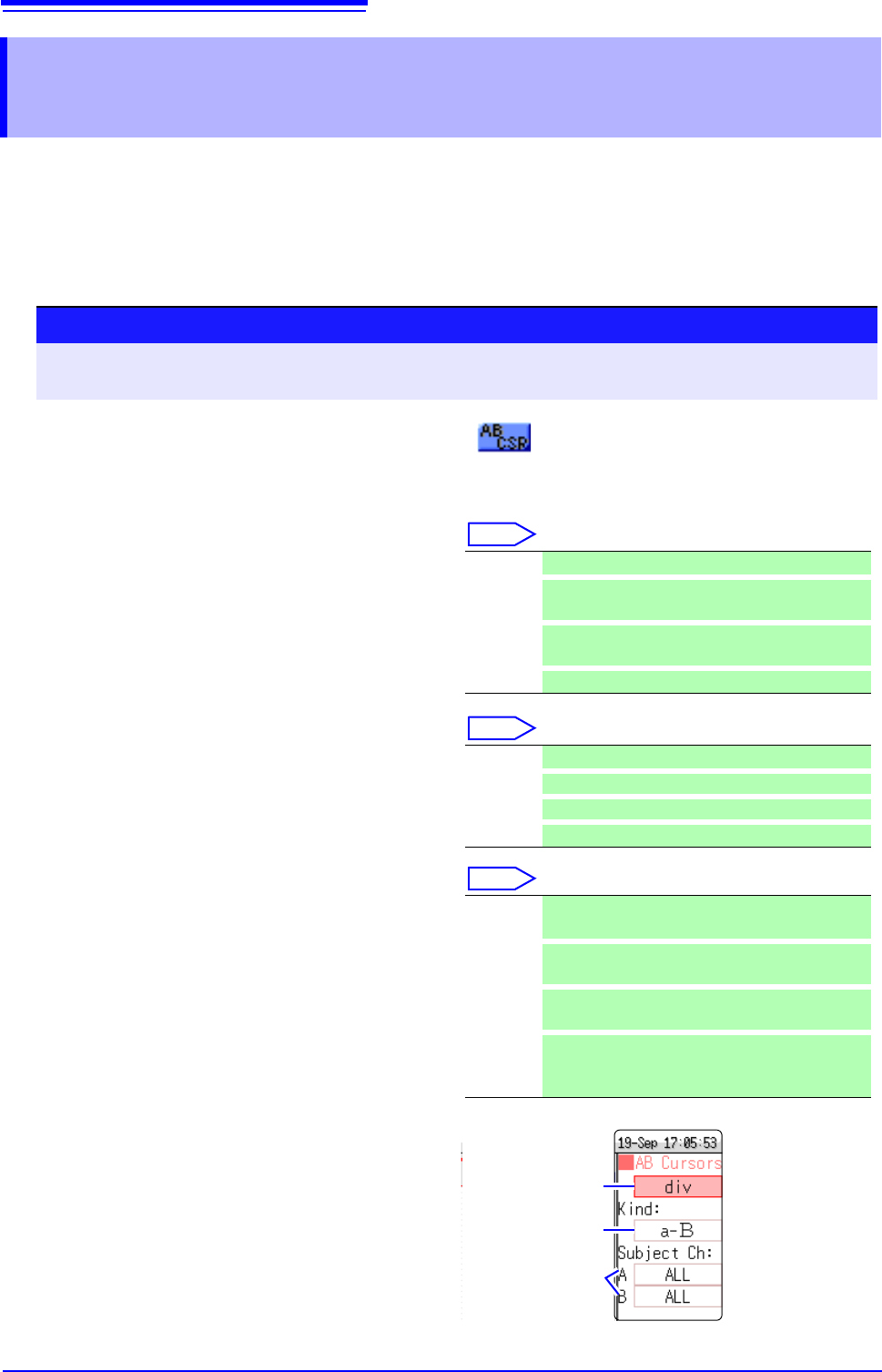

A/B Cursor Settings
To open the screen: Right-click and select [DISP] Waveform screen Left-click [AB CSR] A/B cursors
settings window
1
Left-click the [AB CSR] icon.
Left-click the [AB CSR] icon on the top right of
the Waveform screen.
2
Select the Cursor Type.
Select
Move the flashing cursor to the [A/B Cursosrs]
item and select it.
3
Select the movement target for the A/B
cursors
Select
Move the flashing cursor to the [Kind] item and
select it.
4
Select the measurement target channel
([Subject CH]) for A and B
Select
Move the flashing cursor to the [A] or [B] item
and select it.
5
Move the A/B cursors
If you click while the mouse cursor is in the
Waveform screen, the A/B cursors move to that
position. Furthermore, you can also move the A
or B cursor by dragging the A or B cursor mark
on the Waveform screen while holding down the
left button of the mouse.
Off A/B cursors are not used.
div
Move in horizontal axis (time axis) direction (X
axis for X-Y synthesis)
Range
Move in vertical axis (voltage axis) direction (Y
axis for X-Y synthesis)
Trace
Trace waveform data.
A Use only cursor A.
A-b
Use A/B cursors but move only cursor A.
a-B
Use A/B cursors but move only cursor B.
A&B
Move both cursor A and cursor B together.
ALL Shows measurement values for all channels.
(When cursor type is [Trace] or [Range])
Ch1 to
Ch16
Show measurement values in selected channels
out of Ch1 - Ch16 (for 1, 2, 4, 8, 16 screens).
Gr1 to
Gr8
Specify X-Y synthesis for Gr1 to Gr8 (for X-Y
screen)
Analog
ChCalc
Ch
When there is data on which waveform calculation
has been performed, the cursor target is switched
by analog channel and waveform calculation data.
1
2
3

6.1 Reading Measurement Values (Using the A/B Cursors)
121
5
Chapter 6 Waveform Screen Monitoring and Analysis
6
If numerical values are hard to read
Right-click and select [DISP] to enable display selection. You can display the wave-
form and numerical values separately.
See: "6.7.3 Switching the Waveform Display Width" (p.135)
To view the waveform before or after the A/B cursors when these are off the
screen
When using the A/B cursors, the waveform at an off-screen cursor location can be dis-
played using the Jump function.
See: "6.3.3 Moving the Position" (p.126)
If A/B cursors are activated but do not show up on screen
The position of the A/B cursors can be checked on the scroll bar.(p.125)
If the cursor type is [div] or [Trace] cursors, cursor measurements can be made even
if the A or B cursor is off-screen.

6.1 Reading Measurement Values (Using the A/B Cursors)
122
<Screen display (time axis cursor)>
You can click [DISP] to display the waveform and cursor values separately.
See: "6.7.3 Switching the Waveform Display Width" (p.135)
Reading Measurement Values on Waveform Screen (for 1, 2, 4, 8, 16 screens)
To open the screen: Right-click and select [DISP] Waveform screen
A Cursor B Cursor
Frequencies
Time Values
Waveform values at the intersection with
each cursor are displayed.
Values Between
A/B cursors
Time Value
To change the display type:
"Time Value" (p. 310)
How cursor values are
displayed depends on
the selected cursor type.
Cursor A
Values
Cursor B
Values
<Cursor Value>
Cursor Type Cursor Value
Cursor Value Display Example
(with two cursors)
div
(Time Value and
Frequency)
t: A, B each cursor value: Time from trigger point or recording
start
B-A value: Time difference between A/B cursors
See "Screen display" above
1/t: Frequency for which t is 1 cycle
Range
(Measurement
Values)
A, B each cursor value: Measured value of channel
B-A value: Difference between measured values at A/B cursors
Trace
(Time and Mea-
surement Values)
Time Values
A, B each cursor value: Time from trigger point or recording start
B-A value: Time difference between A/B cursors
Measurement Values
A, B each cursor value: (Memory function) measurement value
(Recorder function) maximum, mini-
mum values
B-A value: Difference between measured values at A/B cursors
AB
B-A
B-A
A
B
Time Values
Measurement Values
A
B
B-A
B-A
(Time difference)
(Difference between measured values)
• When Using External Sampling: Value t is the number of samples.
• The data measured with MR8990 Digital Voltmeter Unit is updated at each of
the two movement points of the A and B cursors.
• When the voltage range is changed during measurement by the recorder func-
tion: Trace measurement values are acquired at the range settings when mea-
surement was stopped.
