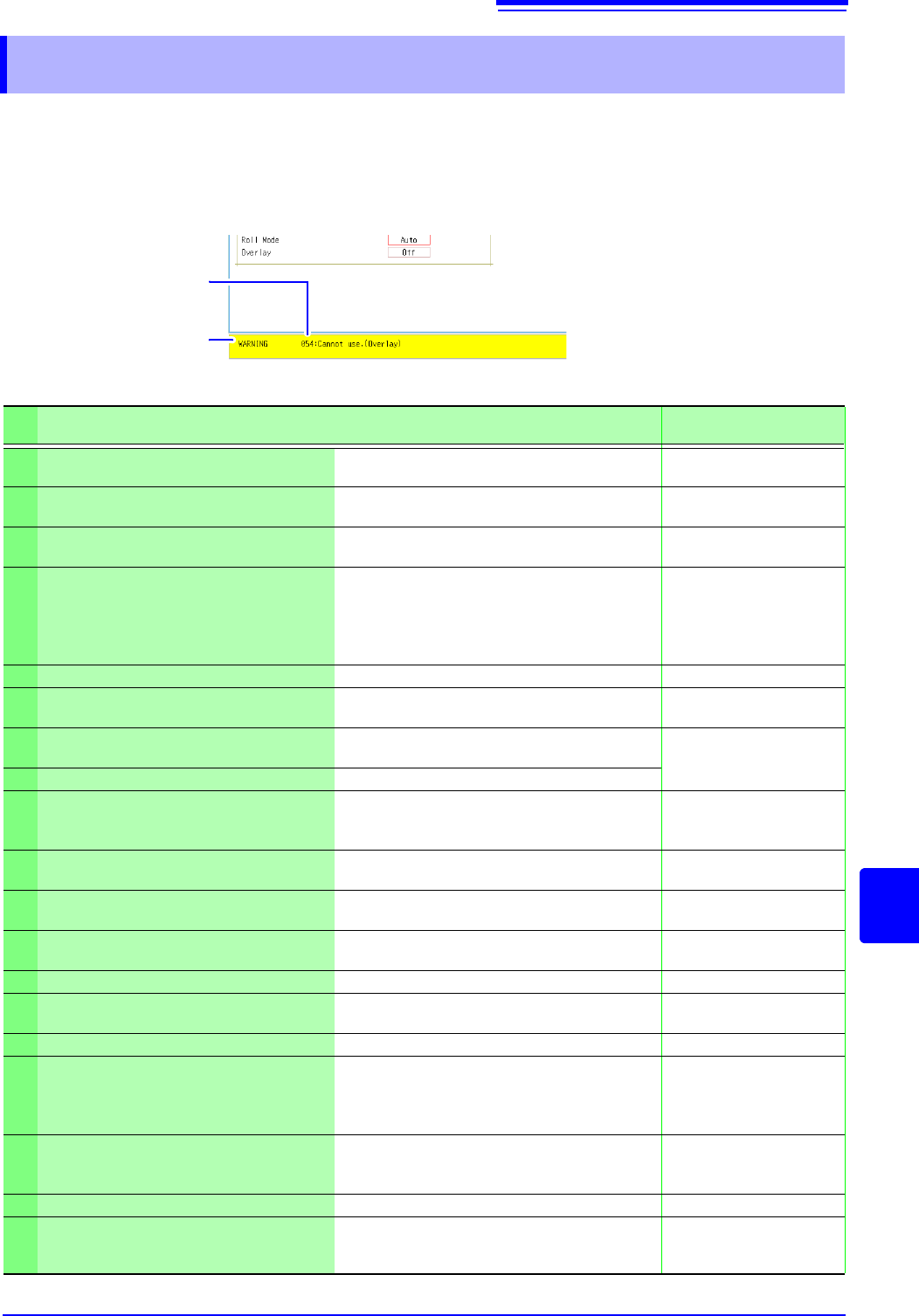

18.3 Error Messages
375
Chapter 18 Maintenance and Service
14
18
A screen message appears whenever an error occurs. In either case, take the remedial action indicated.
A beep may sound if the beeper setting on the [Environment] sheet is [Warn] or
[Warn+Action].
See: "Chapter 14 System Environment Settings" (p.309)
18.3 Error Messages
Message
Displayed Message
Number (Msg No.)
Warning Display
Appears just once when an error
occurs. Disappears within a few
seconds.
Also disappears when clicking
the mouse.
Displayed Warnings
Msg
No.
Message Remedial Action Reference
10
Mount media. Set the recording media.
"2.3 Recording Media Prep-
aration" (p.53)
11
Illegal format. Wrong recording format. Reformat the media.
"2.3.2 Formatting Storage
Media" (p.54)
12
Can not write.
Write-protection is enabled on the storage
media. Disable it.
-
13
Disk full while accessing the file.
Saving is not possible because of insufficient
space on the storage media. Delete files or re-
place the storage media. If measuring,
Stop measurement, then replace the storage
media.
"4.4.4 Deleting Files & Fold-
ers" (p.106)
14
File is read only. File is read only. Deletion is not permitted.
-
15
Access to the file was denied.
An internal fault may have occurred in the in-
strument. Turn the instrument off and back on
-
16
The file name already exists: cannot
save.
Change the file name.
"4.4.6 Renaming Files &
Folders" (p.107)
17
The folder name already exists. Change the folder name.
18
Not enough free space in the folder to
create file.
Either delete files in the saving destination
folder, or change to another saving destina-
tion.
-
19
Folder not empty.
The folder is not empty, be sure you want to
delete.
-
20
The maximum length of a file name, in-
cluding its path, is 255 characters.
File names including the path must not exceed
255 characters.
-
21
Internal error.
An internal error occurred. Check the storage
media.
-
22
No waveform data to save. Acquire waveform data.
-
24
There is no calculation result.
There is no calculation result. Save results af-
ter performing calculation.
"Chapter 9 Numerical Cal-
culation Functions" (p.211)
26
Invalid folder path. Route cannot be specified.
-
27
When executing, select [No] as the save
property.
As other dialogs are displayed, selective sav-
ing cannot be carried out. Either set the selec-
tive saving during execution to [No] or close
the dialog and re-save.
"4.2.3 Saving Data Selec-
tively (SAVE)" (p.93)
28
Pressed key invalid (waveform evalua-
tion).
Unable to perform operation because wave-
form evaluation is enabled. Turn off waveform
evaluation.
"13.3 Setting the Waveform
Evaluation Mode" (p.300)
29
The record length was restricted. -
-
31
A/B cursor positions invalid.
The A/B cursors overlap. Check the cursor po-
sitions.
"6.2 Specifying a Waveform
Range (A/B Cursor)"
(p.124)
18.3 Error Messages
376
32
Zero-adjustment needed. Perform zero-adjustment.
"2.6 Adjusting the Zero Po-
sition (Zero-Adjust)" (p.58)
33
Disabled key. Close the dialog.
-
34
Invalid key pressed (Overlay)
The key operation is prohibited because Over-
lay is enabled.
"7.3 Displaying New Wave-
forms Over Past Waveforms
(Overlay)" (p.146)
36
No trigger has been set. Set trigger criteria.
"Chapter 8 Trigger Set-
tings" (p.189)
38
Use of logic channels has reduced ana-
log waveform resolution from 16 to 12
bits.
Using channels LA - LB reduces resolution of
Ch1 - Ch2 to 12 bits.
"7.9 Setting Details of Mod-
ules" (p.161)
39
Auto balance failed.
Check if no load is applied to the strain gauge
transducer and the strain gauge transducer is
correctly connected to a measuring object.
"7.9.4 Setting Model 8969
and U8969 Strain Unit"
(p.165)
40
Voltage Sag triggering is disabled. (Val-
id time base range: 20 s/div to 50 ms/
div)
Voltage Sag triggering can be used only when
the time base is between
20 s/div to 50 ms/div
"8.3.1 Analog Trigger Set-
tings and Types" (p.192)
42
There is not enough data in the memo-
ry.
Measure the data portion required for calcula-
tion.
"10.1 Waveform Calcula-
tion Workflow" (p.228)
43
Stopped. -
-
46
Channels may no longer be able to be
used by frequency units due to logic
use.
If logic channels A and B of the machine are
used, the respective frequency units at chan-
nels 1 and 2 cannot be used.
"3.5.3 Logic Channel"
(p.79)
47
:This unit cannot be used because it is
not AAF aligned.
Display the [Init] sheet on the SYSTEM
screen.
Execute the [System Information] and check
the software items.
If [Not AAF aligned] is displayed, send the
unit for repairs.
-
48
There are units on which AAF cannot be
set to On because of lack of adjustment.
50
Roll Mode is not available.
The Roll Mode cannot be used when Overlay
is enabled.
"7.2 Displaying Waveforms
During Recording (Roll
Mode)" (p.145)
51
Cannot use. (Pre Trigger)
The pre-trigger function is not available when
using external sampling.
"Chapter 16 External Con-
trol (MR8741 Only)" (p.335)
52
Cannot use. (Roll Mode, Memory Divi-
sion)
If the waveform calculation function is used,
these functions cannot be used.
"10.1 Waveform Calcula-
tion Workflow" (p.228)
53
Cannot use. (Roll Mode, Memory Divi-
sion, Wave Calculation)
If one function is used, the other functions
cannot be used.
"7.2 Displaying Waveforms
During Recording (Roll
Mode)" (p.145)
54
Cannot use. (Overlay)
The overlay function is not available when us-
ing the Roll mode.
"7.3 Displaying New Wave-
forms Over Past Waveforms
(Overlay)" (p.146)
55
Cannot use. (Overlay, Memory Division,
Wave Calculation)
If roll mode is used, these functions cannot be
used.
"7.2 Displaying Waveforms
During Recording (Roll
Mode)" (p.145)
57
Cannot set. (External sampling)
Cannot use roll mode when using external
sampling.
"7.2 Displaying Waveforms
During Recording (Roll
Mode)" (p.145)
58
Rated capacity/rated output error.
Rated capacity/Rated output has exceeded
selected range. Input correct value.
Note (p.151)
59
Cannot use. (Roll Mode, Wave Calcula-
tion)
If the memory division function is used, these
functions cannot be used.
"11.1 Recording Settings"
(p.243)
60
No waveform data. Acquire waveform data.
-
68
Recording length is too long.
Shorten the measurement record length.
The maximum record length that can be calcu-
lated is 2,000 div.
"3.4.3 Recording Length
(number of divisions)" (p.70)
91
LAN: Bad IP address. Check the IP address.
"15.1 LAN Settings and
Connection (Before Using
FTP/Internet Browser/Com-
mand Communications)"
(p.314)
95
LAN: Connection timed out. Check the transmission setting.
97
LAN: Network error.
Check the connections between the instru-
ment and connection destination.
Displayed Warnings
Msg
No.
Message Remedial Action Reference
18.3 Error Messages
377
Chapter 18 Maintenance and Service
14
18
100
Inappropriate setting of time axis for
waveform data.
Return the time axis to the time axis setting
when the waveform was measured.
"3.4.2 Time Axis Range and
Sampling Rate" (p.67)
"8.12 Using trigger settings
to search measurement da-
ta" (p.209)
101
Some blocks are different in time axis
setting from the others.
Set the same time axis setting for all search
target blocks.
If they cannot be the same, set the search
range to display blocks only.
102
Some blocks are different in units con-
figuration from the others.
Unify the unit configuration of search target
blocks.
If they cannot be the same, set the search
range to display blocks only.
"8.12 Using trigger settings
to search measurement da-
ta" (p.209)
103
No data matching your search condi-
tion.
Check the trigger setting.
104
There is no data in the search target
channel.
Select channels with measurement data in the
search target.
105
There is a block with no data in the
search target channel.
Select blocks with measurement data in the
search target.
106
Some blocks are different in measure-
ment mode of unit from the others.
Blocks different in measurement mode cannot
be searched.
-
108
Some blocks are different in measure-
ment mode of unit from the others.
Set the search range within the display blocks.
"8.12 Using trigger settings
to search measurement da-
ta" (p.209)
110
No space to store waveform data at
copy location.
Create empty space by deleting waveform
data from copy location
"7.10 Register the Waveform
in the U8793 Arbitrary Wave-
form Generator Unit" (
p.184)
111
No space to register arbitrary waveform
data.
Create empty space by deleting waveform
data from registration location.
"7.10 Register the Waveform
in the U8793 Arbitrary Wave-
form Generator Unit" (
p.184)
Displayed Warnings
Msg
No.
Message Remedial Action Reference
