5 − 4 5.1.4 Save as (1) Processing W hen the command is selected, the machine renam es the current data f ile and saves it. Once the dat a file is saved, t he file nam e for the current data f ile becomes the one set by …
5 − 3
Directory list:
– Allows you to change the current drive and directory.
File type:
– Selects the file types to be read.
– You can select a file type: KJ-01 (*.J11), KJ-02 (*.J12), KE750 (*.G3C) and
KE760 (*.G3G).
② Dialog box
– A dialog when the data created will be lost

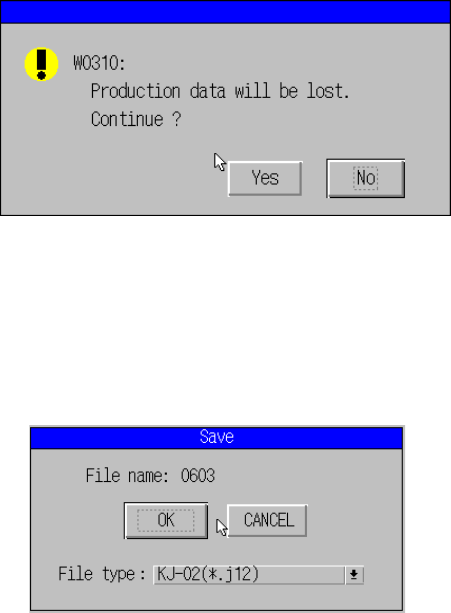

A dialog box as shown in Figure 5.1.1.1 appears as a cautionary window to
confirm you whether the data being created may be lost or not.
5.1.2 Save
(1) Operation
A screen appears as shown in Figure 5.1.2.1 “Save dialog box” when [Save] is
selected from the File menu.
Figure 5.1.2.1 Save dialog box
After checking the file name and type, the machine saves a file in the machine format
selected from the combo box: KJ-01 (*.J11) or KJ-02 (*.J12). If you have not
specified the file name, the following “Save as” dialog box appears on the screen.
5.1.3 New
(1) Operation
When you select the [3/New] command, the PWB data screen, which is
described under Section 5.2 “Data Input”, appears.
If the current data has been edited and your initialization causes that data to be
lost, the confirmation dialog box appears on the screen.
(See the description of the dialog box that appears if the current data is to be
lost.)
5 − 4
5.1.4 Save as
(1) Processing
When the command is selected, the machine renames the current data file and
saves it. Once the data file is saved, the file name for the current data file
becomes the one set by this command.
(2) Operation
A screen appears as shown in Figure 5.1.4.1 “Save as dialog box” when [Save
as] is selected from the File menu.
Figure 5.1.4.1 Save as dialog box
The machine displays the original file name and waits for your entry of a new file
name.
When you press the ENTER key or filed selection key to confirm the entered new
file name, the current file is saved with the new file name. Note that an error
message appears if saving of the file exceeds the number of storable programs
or capacity of the disk memory space.
① Dialog box
When the new file name already exists:
5 − 5
5.1.5 File maintenance
A screen appears as shown in Figure 5.1.5.1 “File maintenance dialog box” when
[File maintenance] is selected from the File menu.
Figure 5.1.5.1 File maintenance dialog box
This dialog box can be used for file management. See Chapter 8 “FILE
MANAGEMENT” for details.
5.1.6 About program
A screen appears as shown in Figure 5.1.6.1 when [About program] is selected from
the File menu.
Figure 5.1.6.1 About program
The version number of this program and that of the VCS appear on the screen
above.
