11 − 4 1 1.2.1.1 Production program f ile li st ① W hen you select the [6/ Print] com mand f rom the m ain menu, and then t he [1/Data f ile list] command on t he displayed menu, the “Product ion progr am f ile list” tha…
11 − 3
*1 On the printed items of a production program
On the Placement data list, Component data list, or Pick data list, you can
select which data to be printed of a production program: all data or the main
data only. The data described on the table above refers to only the main
data to be printed.
*2 Packaging setting items to be printed from the Component data list screen
Package Items to be printed
Tape Tape width, feeding pitch and component supply direction
Stick
Bulk
Tray First component direction, pitch, number of components, and
thickness of a tray
*3 When you load a production program form a floppy disk, then print it, do not
eject the floppy disk until the machine finishes printing data.
11.2.1 Operations
11.2.1.1 Starting up
When you select the [6/Print] command from the main menu bar, the screen shown
in Figure 11.2.1.1 appears.
Figure 11.2.1.1 Initial printing screen
11 − 4
11.2.1.1 Production program file list
① When you select the [6/Print] command from the main menu, and then the
[1/Data file list] command on the displayed menu, the “Production program file
list” that shows production programs located under the current directory of the
current drive appears on the screen as shown in Figure 11.2.1.2.1.

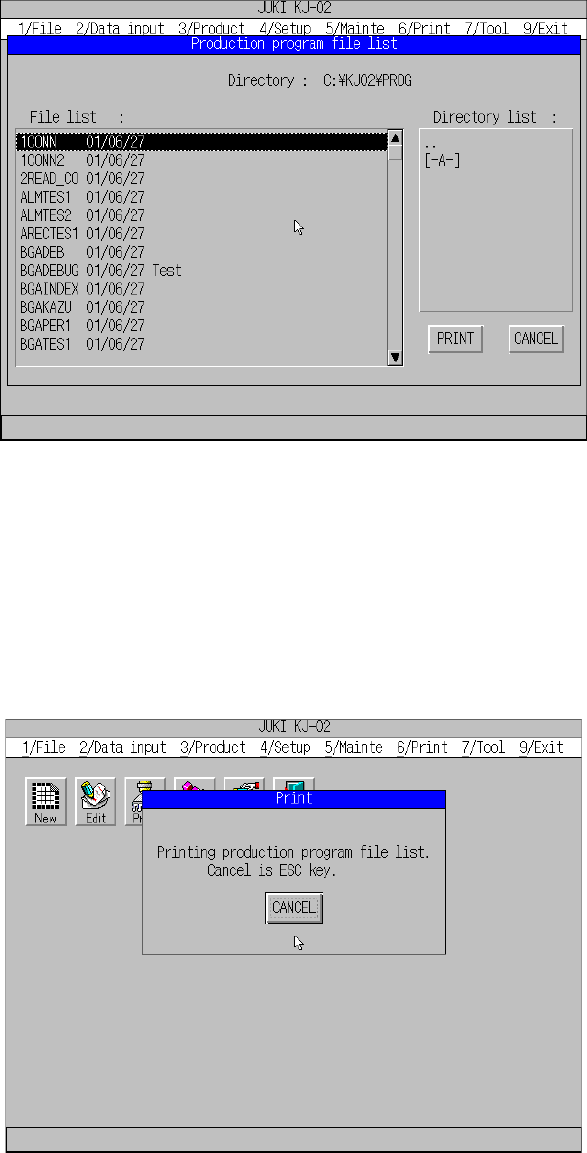

Figure 11.2.1.2.1 “Production program file list” dialog box
② The “Directory list” box allows you to change the current directory and drive.
③ When you confirm the directory whose files are to be printed, press the ENTER
key on the File list box or click the <PRINT> button. The machine starts
printing the production program file list.
④ When the machine starts printing, it displays the “PRINT” message box on the
screen as shown in Figure 11.2.1.2.2. When the machine finishes printing,
this message box disappears and the main menu reappears.
Figure 11.2.1.2.2 “PRINT” message box
⑤ When you want to cancel the printing operation after it starts, press the Esc key
or click the <CANCEL> button on the “PRINT” message box.
⑥ The machine can print up to 49 files per page.
11 − 5
11.2.1.3 Production programs
① When you select the [6/Pirnt] command from the main menu, and then the
[2/Production data] command on the displayed menu, the “Production program
list” dialog box appears on the screen as shown in Figure 11.2.1.3.1.
Figure 11.2.1.3.1 “Production program list” dialog box
② When a production program is changed with the Data Input command, the
machine displays the message box indicating that you cannot print the specified
data.
③ Check the check box indicating data you want to print, and click the <PRINT>
button. The machine starts printing the selected data.
④ When you click the <MODE SETUP> button, the dialog box appears on the
screen and asks you to select which data you want to print: only the main data
or all data of each type of data.
⑤ When the machine starts printing, the “PRINT” message box appears on the
screen. When the machine finishes printing, this message box disappears,
and the main menu reappears.
⑥ Note that you have to press the ESC key or click the <CANCEL> button to
cancel the current printing operation after the machine starts printing.
⑦ Data of each data list that can be printed on one page is shown on Table
11.2.1.3.1.
Table 11.2.1.3.1 Printed page layout of each data list
No. Type of list Page layout
1 PWB data list Prints all data on a page.
(Note that the circuit configuration of a non-matrix board is printed on another
page.)
Main data One data record without mark information is printed on one line in the list format.
Up to 49 data records are printed on one page
2 Placement data list
All data One data record is printed on one line to three lines in the list format.
About 49 lines are printed on a page.
Main data One data record is printed on a line in the list format. Up to 49 data records are
printed on a page.
3 Component data list
All data Two data records are printed on a page in the form format.
Main data 1 One data record is printed on a line in the list format. Up to 49 data records are
printed on a page.
Main data 2 Front and rear sides setup data is printed in the list format.
Tray holder setup data is printed in the list format.
4 Pick data list
All data Up to 10 data records are printed on a page in the form format.
Main data One data record is printed on a line in the list format. Up to 49 data records are
printed on a page.
5 Vision data list
All data Up to four data records are printed on a page in the form format.
