14.2.2 Piping and joint

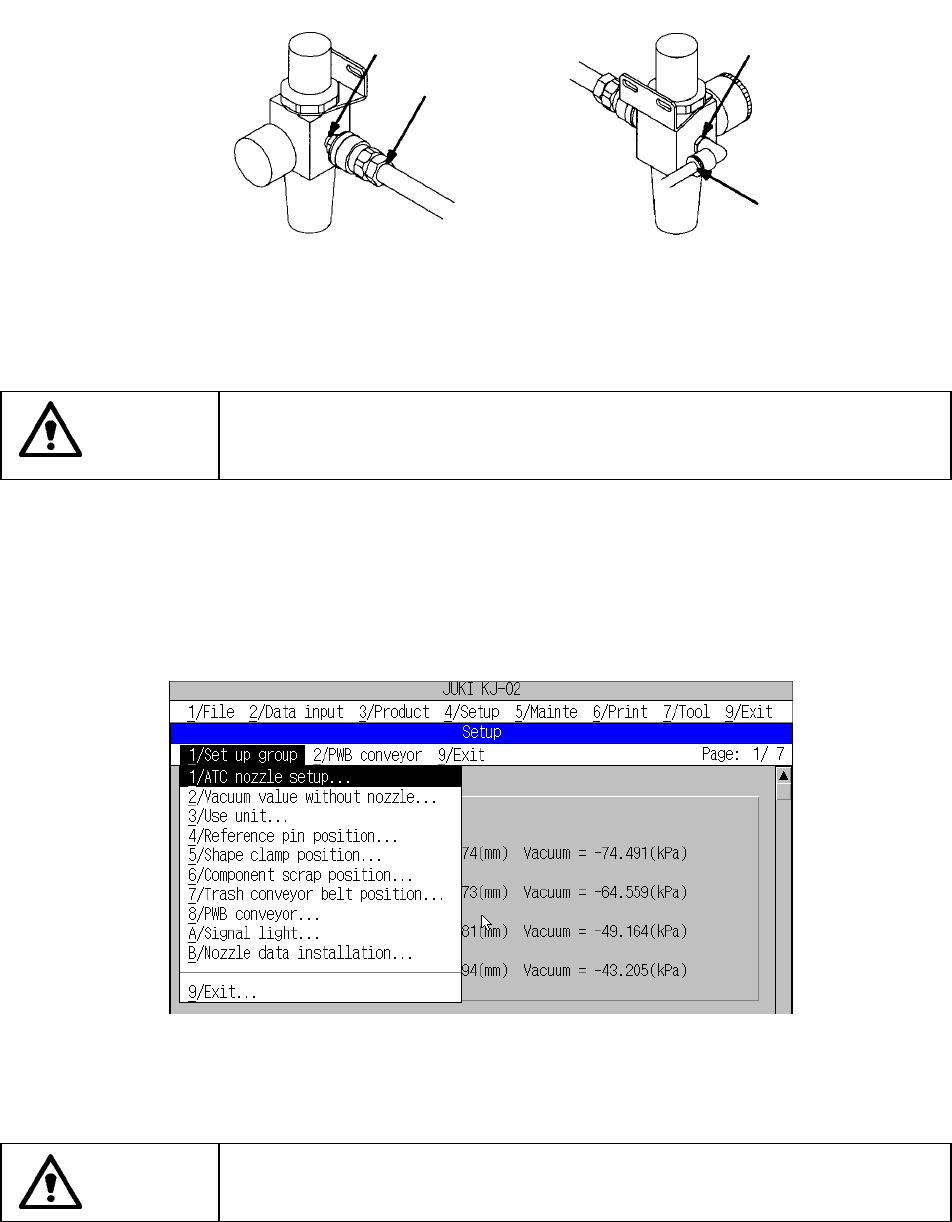

Check that there is no air leakage.
Check to see if connections indicated with arrow marks are made securely, and
if no air leaks from these connections.
CAUTION
To prevent the body from injury which can be caused by accidental
activation of the machine, turn off the power of the machine before
following the operation above.
14.2.3 Unit air cylinder
Turn on the power of the machine, select the machine setup items, and check that
operation is possible.
Figure Machine setup group pull-down menu
CAUTION
To avoid risk of injury, do not place your hand in the machine, nor move
your face or head close to the machine while it is operating.
14 − 4
See the piping diagram shown below as the reference material.
(Filter regulator)
Drive c
y
linder F
Drive c
y
linder R
Female union 32-mm adhesive ta
p
e feeder
E
j
ector unit IC Z-slide bracket
Stopper
Support
(optional)
pusher Y (X4)
(Ejector)
CAL block
(optional)
(Electromagnetic valve)
14 − 5
14.2.4 Air filter (Head)
1) Loosen the screw ② fixing the Z slide shaft ① to pull out the nozzle outer
shaft ③.
2) Check to see if there is any contamination of the filter ④.
3) If any, remove the filter ④ from the nozzle outer shaft, the replace it with a new
one.
4) Push the nozzle outer shaft ③ into the Z slide shaft ①, then fix it with the
screw ②.
Filter ④: Part number E3014727000
CAUTION
To prevent the body from injury which can be caused by accidental
activation of the machine, turn off the power of the machine before
following the operation above.
