• Note on creating of a pattern
Do not create any pattern that has a row or column on which no ball is located
(any index mark is not regarded as a ball). You can create such a pattern, but
it will cause an error at start of production.
(1) Operation of a keyboard or mouse
Edit a pattern with a key(s) or mouse as follows:
Table 6.5.4.4.1 Operation keys/mouse operation list
Category Usage Keyboard Mouse
Switching the windows Switching the drawing window to
the action setting window or vice
versa
Back space (BS)
To the upper direction
↑
To the down direction
↓
To the left direction
←
Moving the cursor
To the right direction
→
To the X and up direction
Alt+↑
To the X and down direction
Alt+↓
X direction scroll bar
To the Y and right direction
Alt+←
To the Y and left direction
Alt+→
Y direction scroll bar
To the beginning of the X direction PageUp
To the end of the X direction Pagedown
X direction scroll bar
To the beginning of the Y direction Home
Scrolling
To the end of the Y direction End
Y direction scroll bar
Placing a ball Space Click the left button*1.
Erasing a ball. Space Click the right button*2.
Placing balls continuously.
Ctrl+← or → or ↑ or ↓
Dragging with the left
button*2.
Drawing a dot
Erasing balls continuously.
Shift+← or → or ↑ or
↓
Dragging with the right
button*2.
Specifying the start position Space Drag the coordinates of
the start position with the
left button.
Selecting the area
Filling with balls
Filling with blanks
Filling with patterns
Specifying the end position Press the Space key
while you are
specifying the range.
Click any area other than
the range to be specified
while you are specifying
the range.
*1 Click: Press the button once.
*2 Drag: Move the mouse with holding down the button.
6 − 42
(2) Drawing operations
This section describes the action performed under each item of the action
setting window.

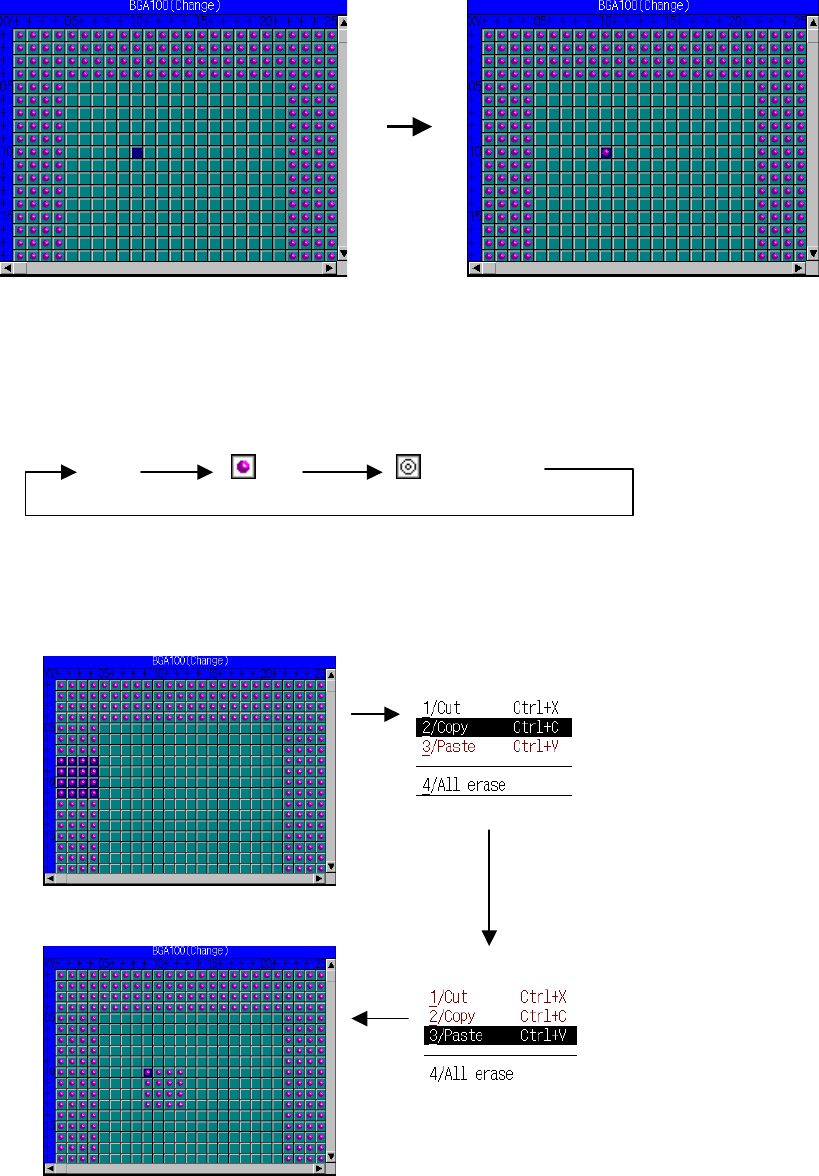

① Drawing a ball
This function draws a ball in white on the black background to place a ball
one by one.
Pressing the space bar or clicking the left mouse button changes what to be drawn:
None Ball Index mark
② Selection area
Specify the area to be cut or pasted with the corresponding function
displayed on the menu.
Move the cursor to the position on
which you want to place a ball.
Place a ball.
Select “Cut” or “Copy”
from the menu.
Move the cursor to the
position to be pasted.
Select “Paste” from
the menu.
Specify the area to be cut or pasted.
Data is pasted on the position where
the cursor is located.
6 − 43
③ Filling the selected area with balls
This function fills the selected area with balls to place balls on the
continuous area.
④ Filling the selected area with blanks
This function fills the selected area with blanks to erase all balls drawn on
the continuous area at a time.
⑤ Filling the selected area with a pattern.
This function fills the selected area with the specified pattern to place a
pattern over the continuous area at a time.
OX
XO pattern example:
Place balls to the end coordinate.
Specify the area which is filled with balls.
Place balls to the end coordinate.
Specify the area which is filled with balls.
Specify the area which is filled with blanks. Erases all balls to the end coordinates.
