14 − 18
14.3.6 Feeder bank
Clean the surface of the feeder bank with dry cloth before mounting feeders such a
tape feeder there.
Clean the feeder bank with dry cloth so that the fixing plate B ③ is free from
obstacles.
Using a vacuum cleaner, clean the feeder bank if there are chips or some foreign
matters remained on it.

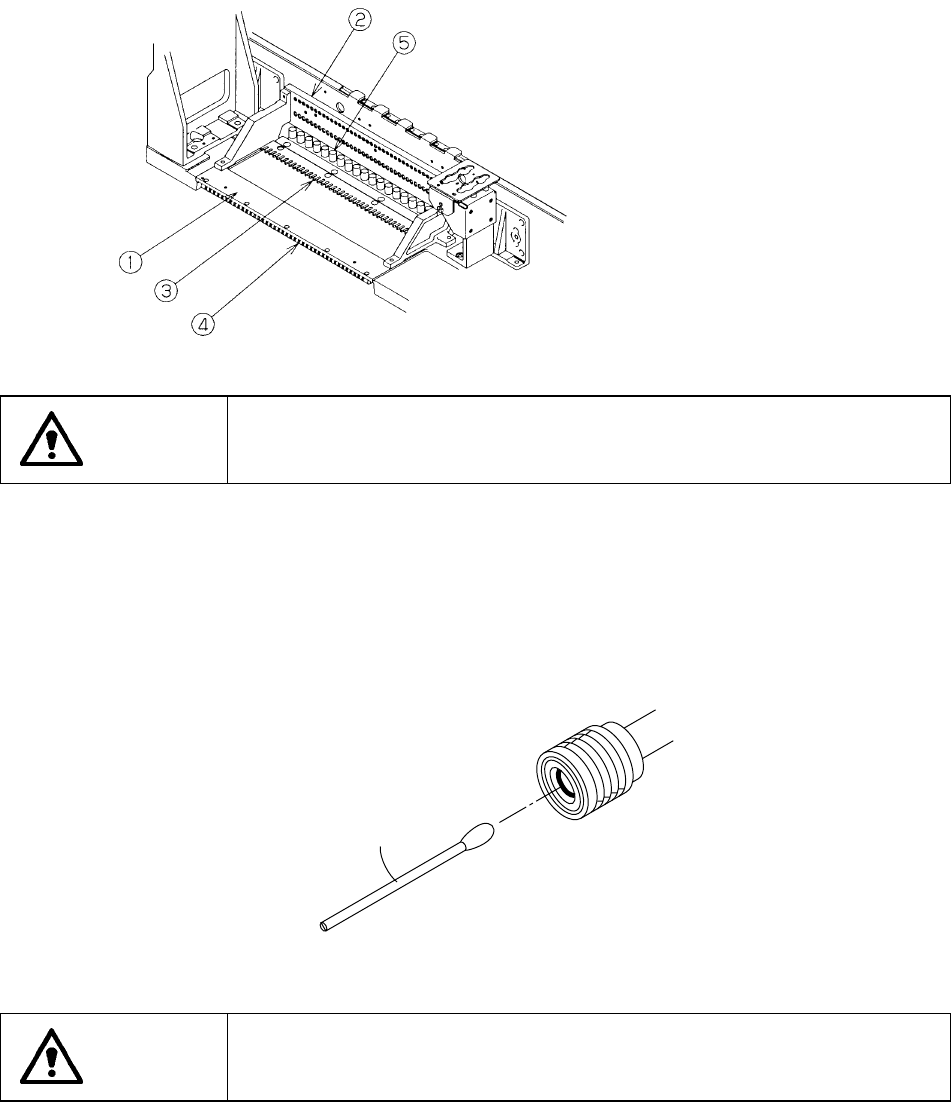

① Feeder bank
(Side on which the
bank is installed)
② Fixing plate
③ Fixing plate B
④ Lock shaft
⑤ Drive cylinder
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.
14.3.7 Z slider shaft
Clean the inside of the Z slider shaft with a cotton swab moistened with alcohol from
the bottom.
Cotton swab
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.
14 − 19
14.3.8 OCC (Polarizing filter)
Check to see if there is no dust and/or foreign substance on the polarizing filter of
the OCC.
If there is any, remove it with an air gun or like.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.

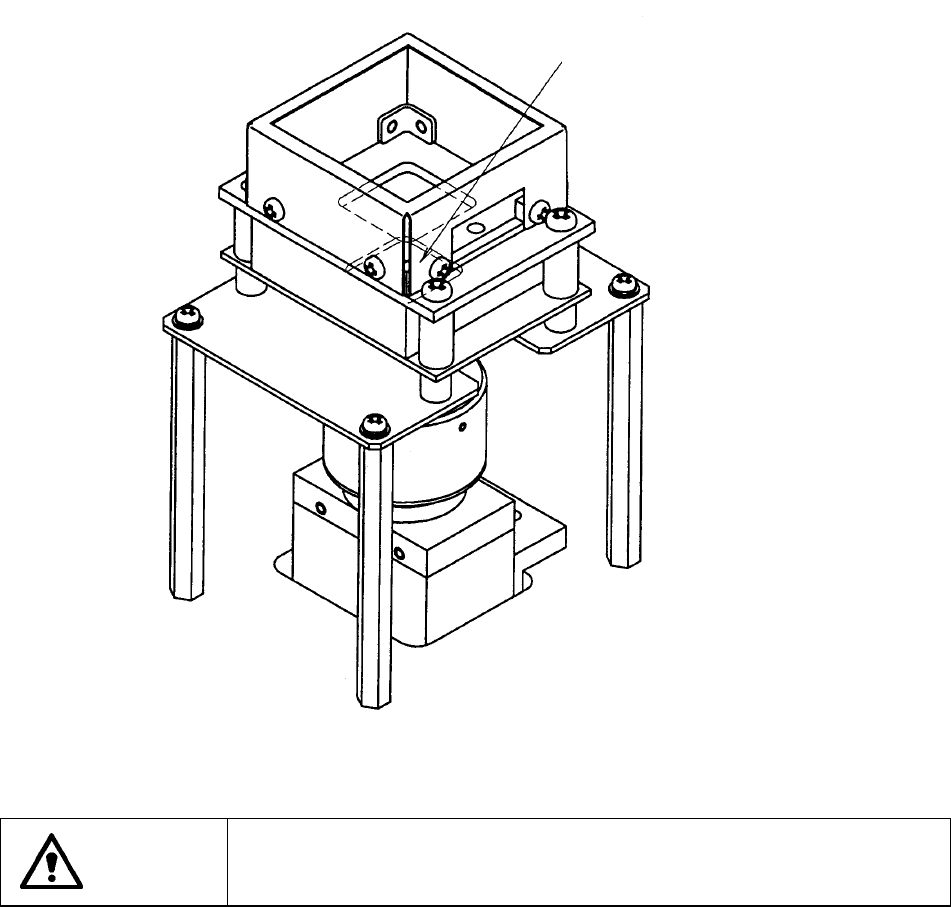

Polarizing filter
14 − 20
14.3.9 Glass of VCS (only for a KJ-02)
Remove dust or any other substance from the cover glass with soft cloth.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.

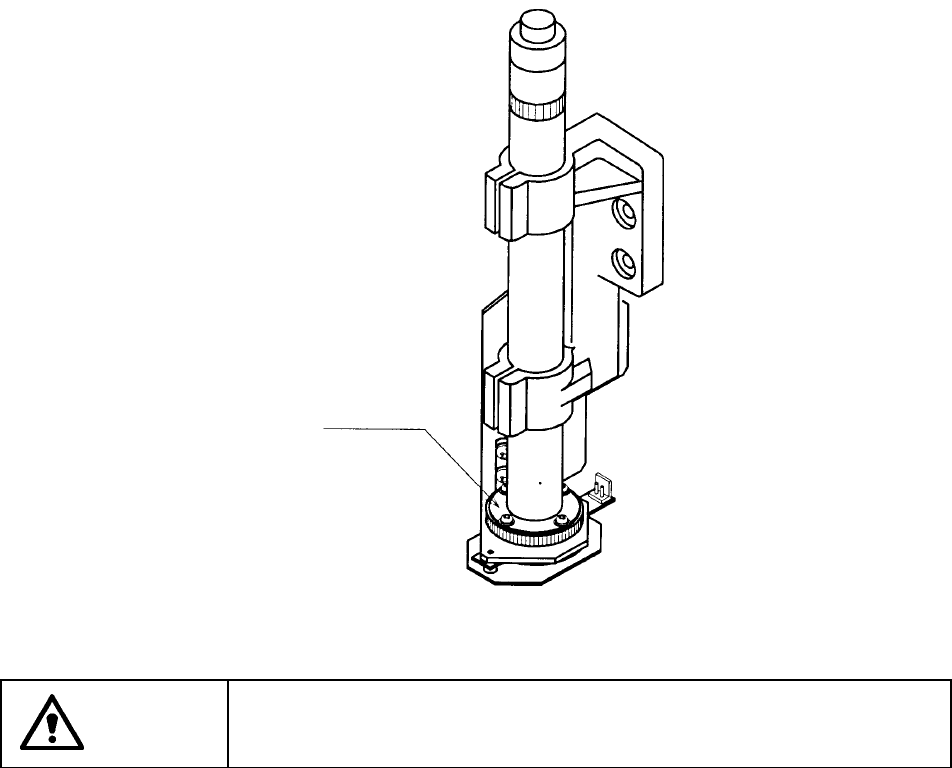

Cover glass
