6 − 20
⑩ OK button
This button allows you to set the method for recognizing a
BGA/FBGA/connector/outline-to-be-recognized component (you cannot set the
recognition method for other components).
See the following sections for details of the recognition methods:
For a connector See Section 6.3.
For an outline-to-be-recognized component See Section 6.4.
For a GBA/FBGA See Section 6.5.
6.3 Setting the Vision Recognition Pattern for a Connector
Set the parameter for a recognition pattern of a unidirectional lead
connector/bi-directional connector/Z-lead connector.
See Table 6.3.2 for displayed data.
Figure 6.3.1 Connector vision recognition pattern settings dialog box
Display group Parameter Description
Type Component type Basic settings
Component name Component name
Pattern settings Specify the lead recognition method. Pattern settings
Lead No. Number of leads to be
recognized/leads not to be recognized
at each corner
Table 6.3.2 Displayed data for setting the vision recognition pattern
Basic settings
Display the basic settings of the
recognition data. This data
cannot be changed.
Pattern settings
Select the lead recognition
pattern here.
Specify the number of leads
when nesessary
Validates your settings, then
closes this dialog box
Cancels your settings, then
closes this dialog box.
6 − 21
(1) Recognition pattern
1) Selecting the lead recognition pattern
Select a pattern with the radio box.
Note: When you change the recognition pattern with clicking the radio button,
the number of leads is initialized (to the minimum value).
2) Meaning and image of each lead recognition pattern
• All leads: All leads are to be recognized.
• Only the both ends lead: Only leads located on both sides are to be
recognized.
• Both ends lead exclusion: Leads except the specified leads located on
both sides are to be recognized.
Recognized
Recognized
Recognized Recognized
Recognized Recognized
The leads located at the inside are not recognized.
The leads located on the outside are not recognized.
Recognized
6 − 22
2) Number of leads
Range of the number of leads Compo. Type Recognition pattern
Upper and
left corner
Upper and
right corner
Lower and
left corner
Lower and
right corner
One-way connector All leads
Only the both ends lead
Both ends lead exclusion
*
1-3
0-3
*
1-3
0-3
*
*
*
*
*
*
Two-way
Z lead connector
All leads
Only the both ends lead
Both ends lead exclusion
*
1-3
0-3
*
1-3
0-3
*
*
*
*
1-3
0-3
Table 6.3.3 Range of the number of leads
* The input range of the number of leads to be recognized varies depending
on the number of leads entered on the Vision data screen.
(The displayed number is fixed to “1-3” and “0-3.”)

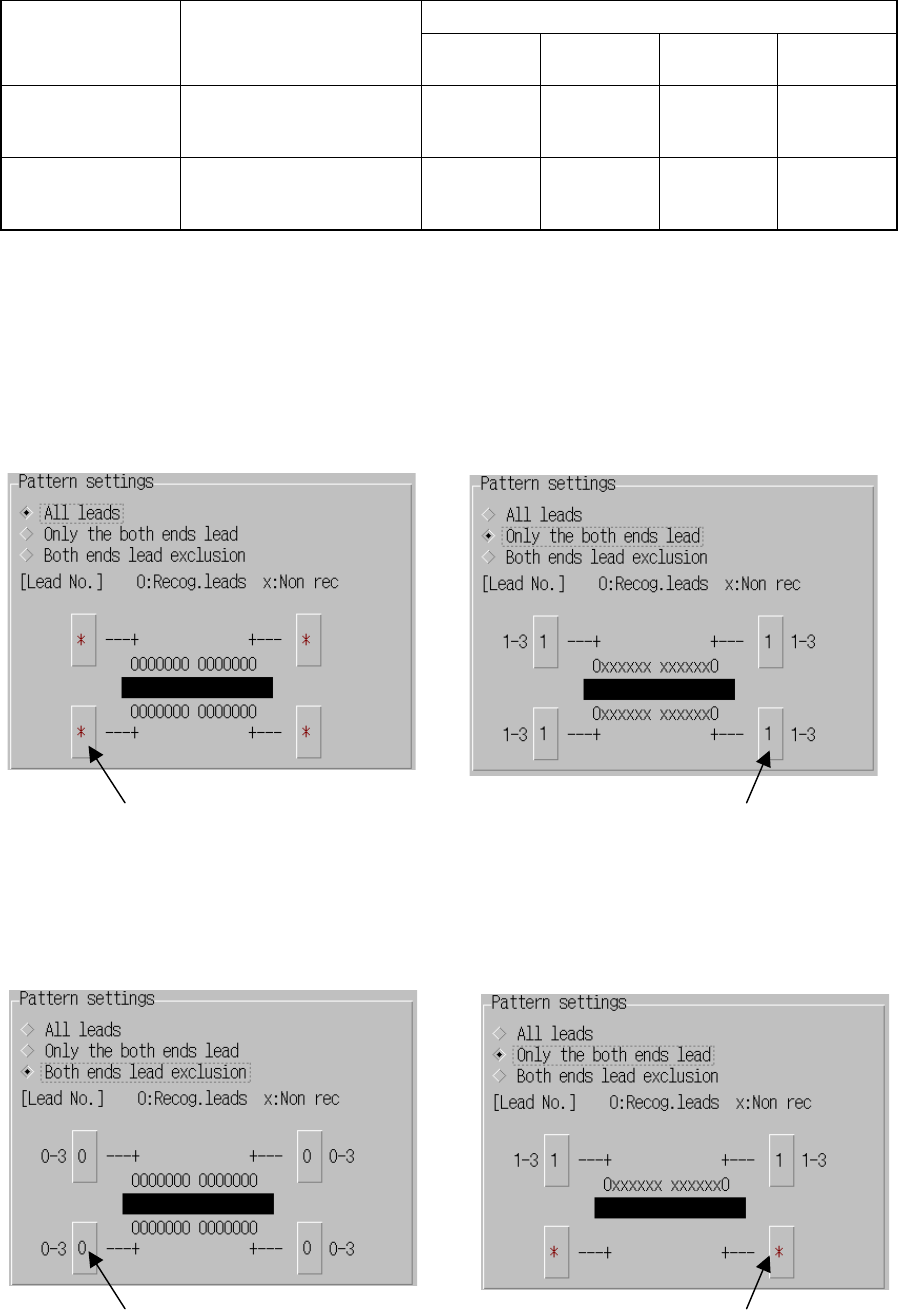

• Setting example for “All leads” • Setting example for “Only the both ends lead”
• Setting example for “Both ends lead exclusion” • Setting example for “Only the both ends lead”
(One-way lead connector)
You do not have to set the
number of leads.
Specify one or more as
the number of leads
located on both sides.
Specify any number of
leads to be excluded.
The leads located on the
lower side are not set for a
one-way lead connector.
