8 − 31
③ [3/ Rear]
This command displays production information of the tape feeders, stick
feeders, and bulk feeders mounted on the rear side of the machine. Figure
8.2.3.2.2 shows the Production information box when the [3/ Rear]
command is selected.

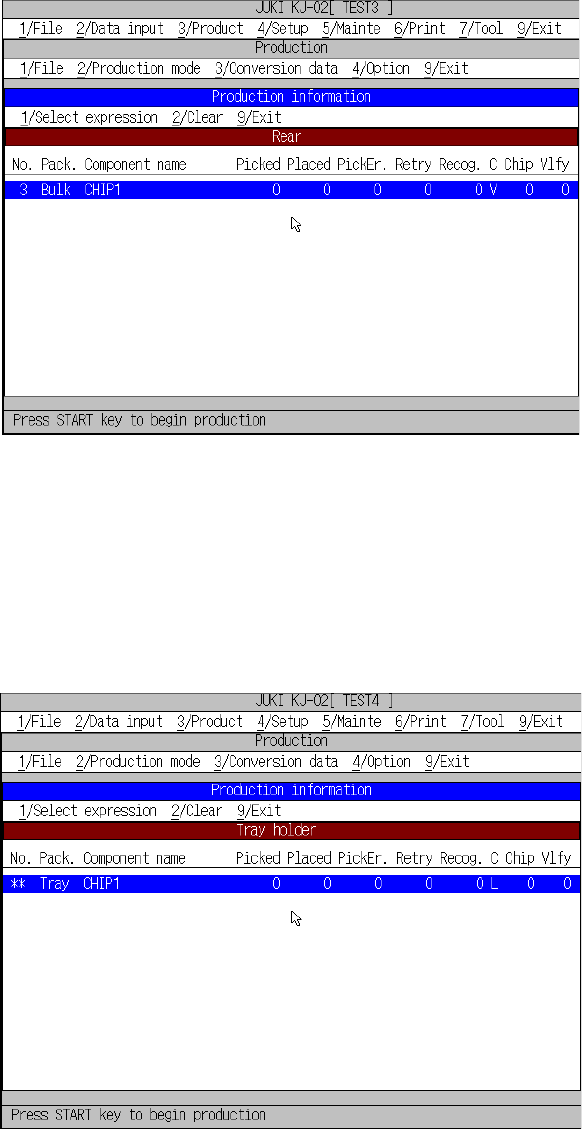

Figure 8.2.3.2.2 Production information box (for selection of [3/ Rear])
Go to the desired page for reference by operating the ”(UP), ”(DOWN),
SCROLL, PAGE-UP, and PAGE-DOWN keys.]
④ [4/ Tray holder]
This command displays production information of the tray holder.
Figure 8.2.3.2.3 shows the Production information box when the [4/ Tray
holder] command is selected.
Figure 8.2.3.2.3 Production information box (for selection of [4/ Tray holder])
Go to the desired page for reference by operating the ”(UP), ”(DOWN),
SCROLL, PAGE-UP, and PAGE-DOWN keys.]
8 − 32
(2) Clear
This command clears all production information. You cannot clear the
production management information while the machine is producing a PWB or
pauses.
(3) Refresh
Refreshes the display contents.
(4) Exit
This command returns control to the screen from which the Production
information box was called.
Note: The production management information in the log is not shown as a
realtime data. It can be updated when the screen is changed.
8.2.3.3 Storing the production management information
When you perform the “Save” command for a file after production, you can save the
production management information as a file separately.
8 − 33
8.3 Errors Occurring During Production
If one of the following events occurs, the machine displays the corresponding error
message, and stops production.
− The stocked components run out (a component pick-up retry over error occurs).
− A BOC or IC mark recognition error occurs.
− A tombstone error occurs.
− A laser/VCS recognition error occurs.
− A component drops off the machine.
− The specified option is not installed on the machine.
− The machine detects a floating feeder error.
− The cover is opened (this is not an error, but the machine pauses to prevent any
danger).
8.3.1 Run-out of components stock
(1) When one of the following events (indicating a runout of parts stock) occurs, ake
the actions stated below.
① In case a Retry Over event occurs in picking up a part from a tape feeder, a
stick feeder, or a tray. If a component pick-up retry over error occurs due to
the feeder error or tape error, the machine handles this as an error indicating
that the stocked components run out also.
② For the tray part, all the components set as Component number have been
used. When more than one tray of the same type are installed, this can be
happen only with the last tray.
(2) If the stocked components run out, the machine performs the following process:
① The signal lights indicate that the stocked components run out.
② The machine continues production.
If the machine is equipped with an alternative feeder, the machine uses it
from the next component pick-up/placement cycle.
“Pause” screen displayed when the stocked components run out
