6 − 3 ③ TSO P (T op view) ④ TSO P2 (T op view) ⑤ QFJ ( PLCC) (T op view ) ⑥ One- way lead connector (T op view)

6 − 2

6.2 Vision Data Input

6.2.1 Components whose vision data should be entered

Vision data is used to recognize the component using vision recognition function. The

vision data can be entered only for the component types shown below and which

have been selected for vision centering of the component data.

Classification of components according to

their shapes

Component types

Components having leads on its four sides QFP

BQFP(PQFP)

QFJ(PLCC)

IC socket (J-lead, gull-wing, with a bumper)

Components having leads on its two sides SOP

TSOP､TSOP2

SOJ

HSOP

CON2

CONZ

Components having leads on its one side CONN

BGA type BGA､FBGA

Aluminum electrolytic capacitor type Aluminum electrolytic capacitor

Gallium arsenic type GaAsFET

Outline-to-be-recognized component type Outline-to-be-recognized components

The following shows the component types. For data setting, it is defined to 0of the

components when the components are oriented as shown below.

① QFP (Top view)

② SOP (Top view)

6 − 3

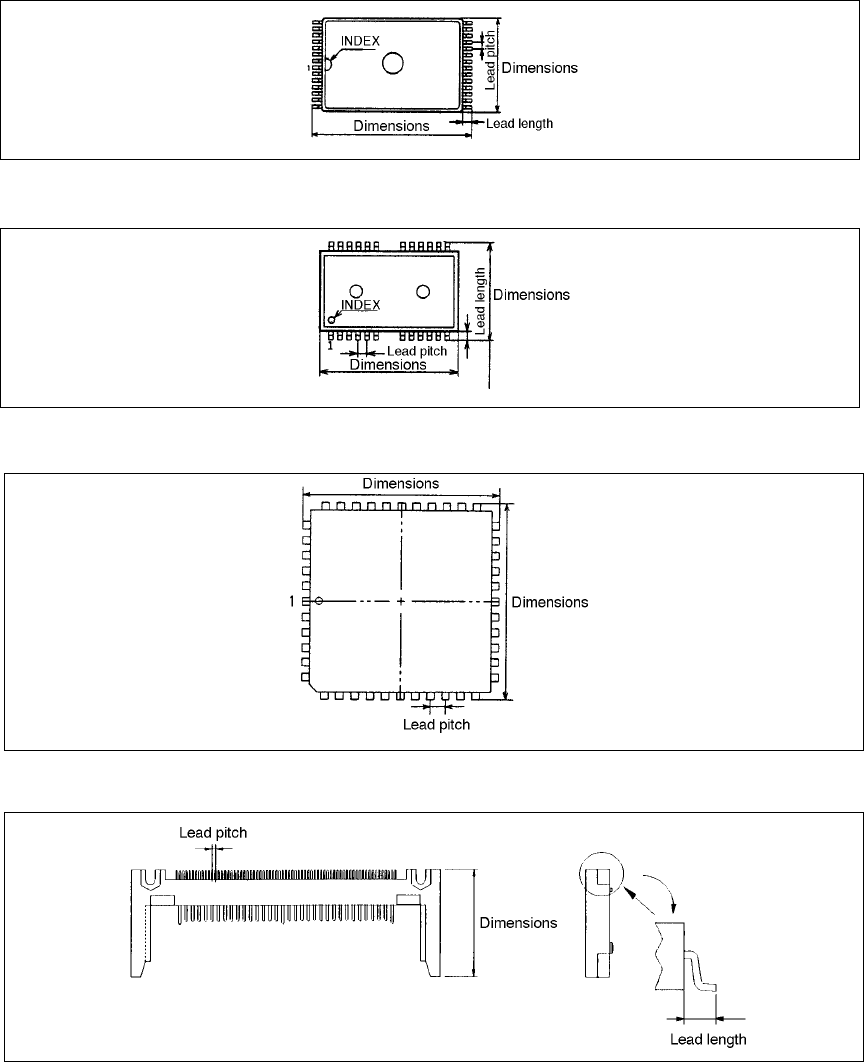

③ TSOP (Top view)

④ TSOP2 (Top view)

⑤ QFJ (PLCC) (Top view)

⑥ One-way lead connector (Top view)

6 − 4

⑦ BGA, FBGA (Bottom view)

Normal assignment Stagger assignment

⑧ Aluminum electrolytic capacitor (Bottom view)

⑨ GaAsFET (Top view)
