10 − 7 10.4 Operations 10.4.1 Mov ing the axes 10.4.1.1 Moving the XY- axis W hen y ou select the [ 1/Axis move] on the menu bar , then the [ 1/XY axis] comm and on the displayed menu, the comm and menu appears as shown …
10 − 6
Figure 10.3.7 Others menu
Figure 10.3.8 Exit menu
“6/Otherr” menu
“9/Exit” menu
10 − 7
10.4 Operations
10.4.1 Moving the axes
10.4.1.1 Moving the XY-axis
When you select the [1/Axis move] on the menu bar, then the [1/XY axis] command
on the displayed menu, the command menu appears as shown in Figure 10.4.1.1.1.
Selecting the desired command from this command menu has the machine start
controlling the corresponding device.
CAUTION
The XY-axis starts moving immediately after you select a command.
To avoid risk of injury, do not place your hand in the machine, nor
move your face or head close to the machine during operation.
Before selecting a command, check to see if there is no one who is
working the internal parts of the machine.
Before selecting a command, check to see if there is no one who is
near the machine and can be injured when the machine warms up.
Before selecting a command, check to see there is no obstacle (tools
and jigs) attached or left in the machine that may prevent any part
inside the machine from operating.

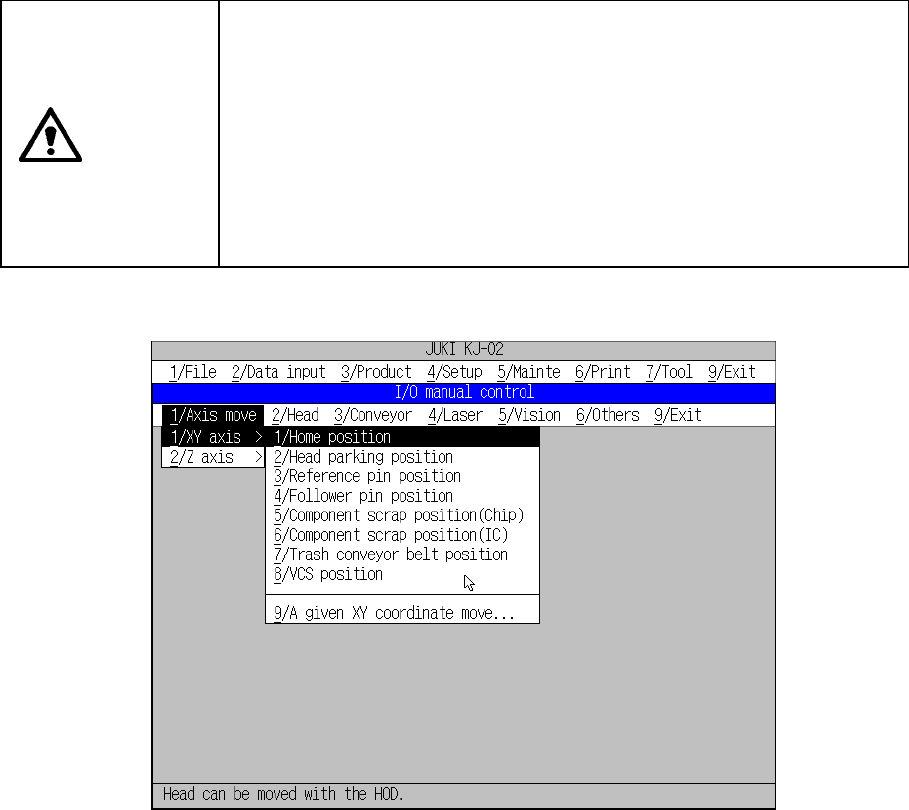

Figure 10.4.1.1.1 Axis (XY-axis) control menu
10 − 8
Each command is described on Table 10.4.1.1.1.
Table 10.4.1.1.1 Description of each command
No. Sub menu name Description
1 Home position Moves the head to the XY home position viewed from the nozzle.
2 Head parking position Moves the head to the head waiting position viewed from the nozzle.
3 Reference pin position Moves the head to the reference pin position viewed from the nozzle.
4 Follower pin position Moves the head to the follower pin position viewed from the nozzle.
5 Component scrap position (Chip) Moves the head to the component discarding position (chip) viewed from the nozzle
6 Component scrap position (IC) Moves the head to the component discarding position (IC) viewed from the nozzle.
7 Trash conveyor belt position Moves the head to the component discarding position of the IC trash conveyor belt
with viewed from the nozzle.
8 VCS position Moves the head to the VCS position viewed from the nozzle.
9 A given XY coordinate move Moves the head to the position indicated by the coordinate you specified with viewed
from the nozzle.
When you select the [9/A give XY coordinate move] command, the dialog box
appears, which asks you to enter the XY coordinates of the position the head is
supposed to move to as shown in Figure 10.4.1.1.2. Enter the head moving
destination coordinates, and click the <MOVE> button. The head moves to the
position you specified.
CAUTION
The XY-axis starts moving immediately after you click the <MOVE> button.
To avoid risk of injury, do not place your hand in the machine, nor move
your face or head close to the machine during operation.
Before clicking the <MOVE> button, check to see if there is no one who is
working the internal parts of the machine
Before clicking the <MOVE> button, check to see if there is no one who is
near the machine and can be injured when the machine warms up.
Before clicking the <MOVE> button, check to see there is no obstacle
(tools and jigs) attached or left in the machine that may prevent any part
inside the machine from operating.
Figure 10.4.1.1.2 “XY move” dialog box
