14 − 10 (1) X axis Check Check that there is no dir t or dust on t he rails of the X axis direct drive unit YR and YL. (2) Y axi s Check Check to see if ther e is no dirt or dust on the ra ils of t he Y axis direct drive…
14 − 9
14.3 Cleaning
14.3.1 XY axis direct drive unit
Remove dirt, oil, etc. on the XY axis direct drive unit.

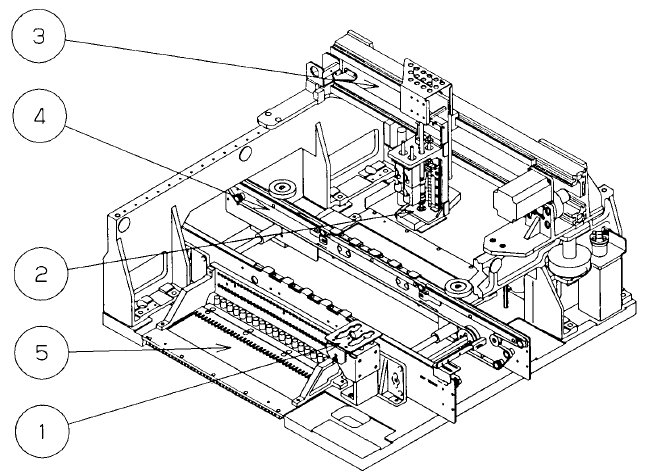

Figure 14.3.1
① ATC unit ④ PWB transport unit
② Head unit ⑤ Feeder bank unit
③ X-Y unit
14 − 10
(1) X axis
Check
Check that there is no dirt or dust on the rails of the X axis direct drive unit YR
and YL.
(2) Y axis
Check
Check to see if there is no dirt or dust on the rails of the Y axis direct drive unit.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.
① X-shaft direct-drive unit rail (x 2)
② X-shaft direct-drive unit (x 4)
① Y-shaft frame (x 2)
② Y-shaft direct-drive unit rail (x 2)
③ Y-shaft direct-drive unit (x 4)
14 − 11
14.3.2 Transport sensors
Remove dirt and dust on the sensors.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.
PWB detecting sensor B
PWB detecting sensor C
PWB detecting sensor A
