10 − 14
10.4.4 Laser control
When you select the [4/Laser] command on the menu bar, and then the [1/Laser
control] command on the displayed menu, the dialog box for controlling laser appears
on the screen as shown in Figure 10.4.4.1.
Each command is described on Table 10.4.4.1.
Figure 10.4.4.1 “Laser control” dialog box
Table 10.4.4.1 Description of each command
No. Command Setting/displayed items
1 Control Laser reset (initialization of laser), Image display, Vacuum (ON/OFF)
(nozzle vacuum condition), Z adjustment (Z-axis adjustment of the nozzle)
(UP: height of the side to be detected with laser)/DOWN: XY-direction
movable lowest limit), and Z fine adjustment (Z-axis fine adjustment of the
nozzle) (UP: 0.01 mm/DOWN: 0.01 mm)
2 Measure algorithm Selects the algorithm for measuring a component with laser.
3 Measure Measures by rotating or measures without rotating.
4 Status Displays each operation control condition, or measurement result with
laser.
When you select a button displayed on the dialog box above, the corresponding
control operation starts. The controlled condition is displayed in real time.
10 − 15
10.4.5 Vision
10.4.5.1 Live image control
When you select the [1/Live image control] command on the “5/Vision” menu, the
“Live image control” dialog box appears as shown in Figure 10.4.5.1.1.

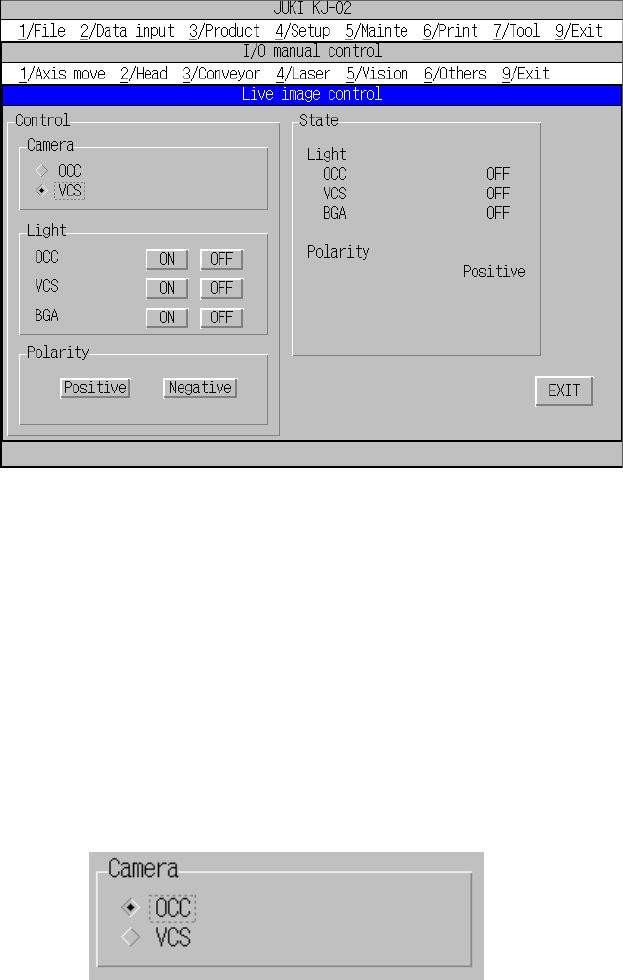

Figure 10.4.5.1.1 Live image control screen (Screen example when you use a KJ-02)
− Camera
Select a camera whose image is to be displayed by clicking the corresponding
radio button.
Note that you cannot select a unit whose view type is not set (that is, not
installed) with the "Option" menu of the MS parameters.
This selection will not affect the setting of the "Device enable" dialog box invoked
from the Machine setup menu (you can select a unit not).
(You can select a unit that is not to be used on the “Use unit” menu.)
Live image control camera selection dialog box
− Polarity
By clicking the corresponding radio button, you can switch the polarity of image
displayed on the monitor: positive or negative
The state of the back light is updated when the back light is controlled completely.
10 − 16
10.4.6 Others
10.4.6.1 ATC control
When you select the [6/Others] command on the menu bar, and then the [1/ATC
control] command on the displayed menu, the dialog box for controlling the ATC
appears on the screen as shown in Figure 10.4.6.1.1.
Each command is described on Table 10.4.6.1.1.
Figure 10.4.6.1.1 “ATC control” dialog box
Table 10.4.6.1.1 Description of each command.
No. Command Description
1 Slide plate control Controls the slide plate (OPEN/CLOSE).
2 Nozzle change Replaces the current nozzle with the nozzle you specified.
3 Status Displays the condition of the slide plate and the number of a nozzle located
at each ATC position.
When you select a button displayed on the dialog box above, the specified control
operation starts. The controlled condition is displayed in real time.
When you click the <CHANGE> button on the “Nozzle change” window, a nozzle
whose position: A to D is checked is replaced with another one.
