CHAPTER 2 DESCRIPTION OF THE OPERATOR
CONTROLS
2.1 Function of Keys and Switches
2.1.1 Keyboard
Esc
F1 F2
F3 F4
F5
F6
F7
F8
F9
F10
~
`
!
1
@
2
#
3
$
4
%
5
^
6
&
7
*
8
(
9
)
0
QW E
RTY
U
I
O
P
{
[
}
]
_
-
+
=
ASD
FG
H
JK
L
"
'
Z
XCV
B
N
M
<
,
>
.
Tab
Caps Lock
Caps
Lock
Shift
Shift
Ctrl CtrlAltAlt
Enter
Num
Lock
Num
Lock
Scroll
Lock
Print
Screen
Scroll
Lock
Pause Delete
Insert
Page
Up
Page
Down
End
:
?
/
:
;

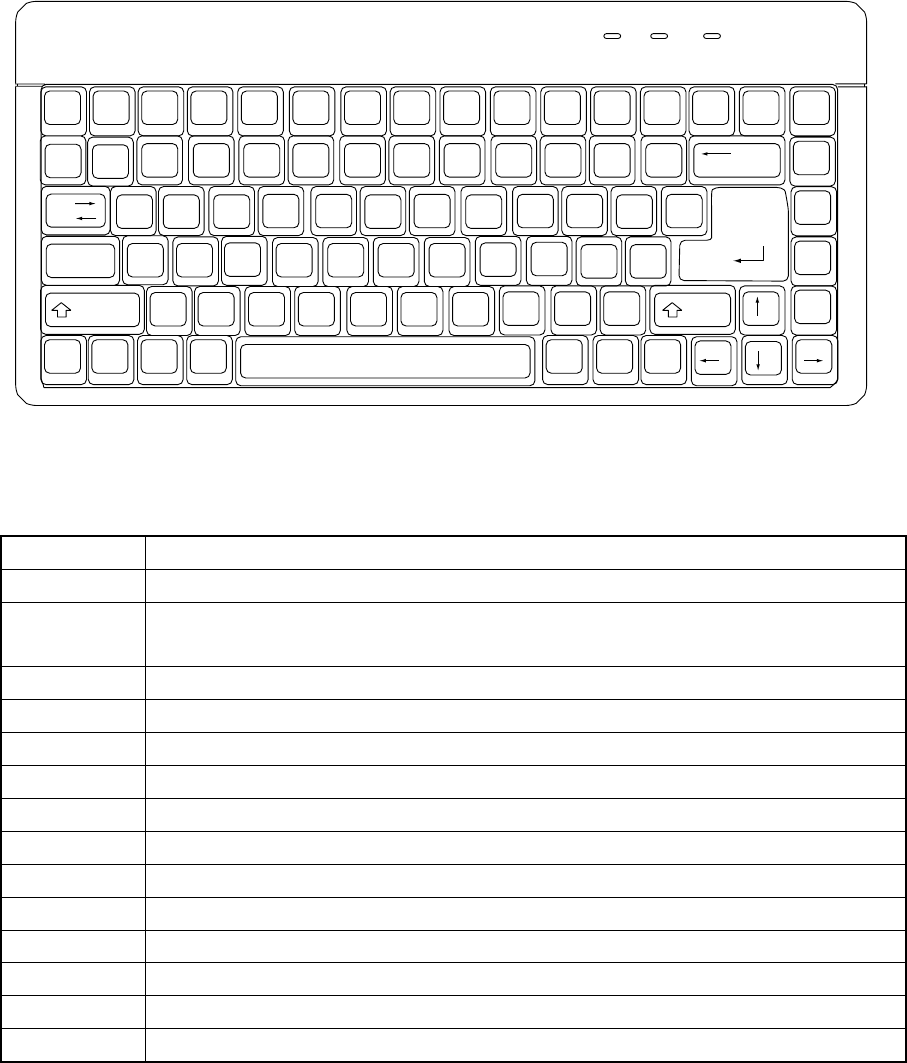

Figure 2.1.1 Keyboard
Table 2.1.1 List of keys and their functions
Key Function
F1
• Unused
F2
• Use to change data already entered.
• Use to obtain a pop-up list on the display.
F3
• Use to copy data.
F4
• Use to delete data.
F5
• Use to move data.
F6
• Use to change the window in the forward direction.
F7
• Use to search for particular data in the forward direction.
F8
• Use to search for particular data in the backward direction.
F9
• Use to select either the list or form display, the key toggling between the two.
F10
• Unused
F11 (Fn + F1)
• Unused
F12 (Fn + F2)
• Unused
ESC
• Unused Use to cancel an entry.
Alt
• Unused Use to select the menu.
2 − 2
Key Function
INSERT
• Unused Use to select either the insert or overtype mode, the key toggling between the
two.
DELETE
• Unused Use to erase the character at the cursor.
HOME
• Unused Use to move the cursor to the beginning of the line.
END
• Unused Use to move the cursor to the end of the line.
PAGE
DOWN
• Unused Use to access the following page on the display.
PAGE
UP
• Unused Use to access the previous page on the display.
Tab
• Unused Use to move the window forward.
• Unused Use to move the cursor forward.
Shift + Tab
• Unused Use to move the window backward.
• Unused Use to move the cursor backward.
• Unused Use to move the cursor in the direction of the arrow.
0-9,
A-Z,
-, +,
other symbols
• Unused Used to generate and edit data.
Note: The mark is entered by ¥. (Japanese only)
ScrlL
• Unused Use to move the cursor backward and, at the same time, erase the character at
the cursor.
ENTER
• Unused Use to validate the data entered.
Caps Lock
• Unused Use to switch between uppercase and lowercase letters.
• Unused The LED lights up when this function is slelcted.
Num Lock Use to lock the numeric key functions.
The LED lights up when this function is slelcted.
2 − 3
2.1.2 HOD: Hand-held operating device operation panel
Figure 2.1.2 HOD: Handheld operating device operation panel
WARNING
To avoid a risk of injury, do not place your hand in the machine, nor
move your face or head close to the machine during operations of the
HOD.
Table 2.1.2 List of HOD keys and their functions
Key name Function
HEAD
• Use this key to perform a teaching function with a head.
When selected, its LED lights.
CAMERA
• Use this key to perform a teaching function with the OCC.
When selected, its LED lights.
BAD MARK
• Use when a task is taught using the bad mark light beam (optional).
-The LED lights up when this function is selected.
POINT SEL
• Use this key to teach a XY-coordinate. When you press this key, the “1
POINT” LED flashes at first. Every time you press this key, the following LEDs
flash in the order shown below.
Press the <SEL ENB> key to confirm your selection of the
teaching method.
TEACH SEL
• Use this key to select a teaching item. When you press this key, the “XY” LED
flashes at first. Every time you press this key, the following LEDs flash in the
order shown below.
Press the <SEL ENB> key to confirm your selection of the
teaching item.
1
POINT
SEL
ENB
1
POINT
WINDOW
XY
SEL
ENB
Z
θ
