6 − 37
6.5.4.1 Flow of the user ball pattern creation
Create data according to the following flow of operations:
6.5.4.2 Management of the ball pattern area
When you created a pattern on the Production program editing screen, perform
each necessary operation after selecting the pattern area. On the following dialog
box, you can edit/delete/preview each pattern data.
• The system can store up to 10 patterns in one production program as the pattern
data.
• The created pattern data can be used with several BGA vision data.

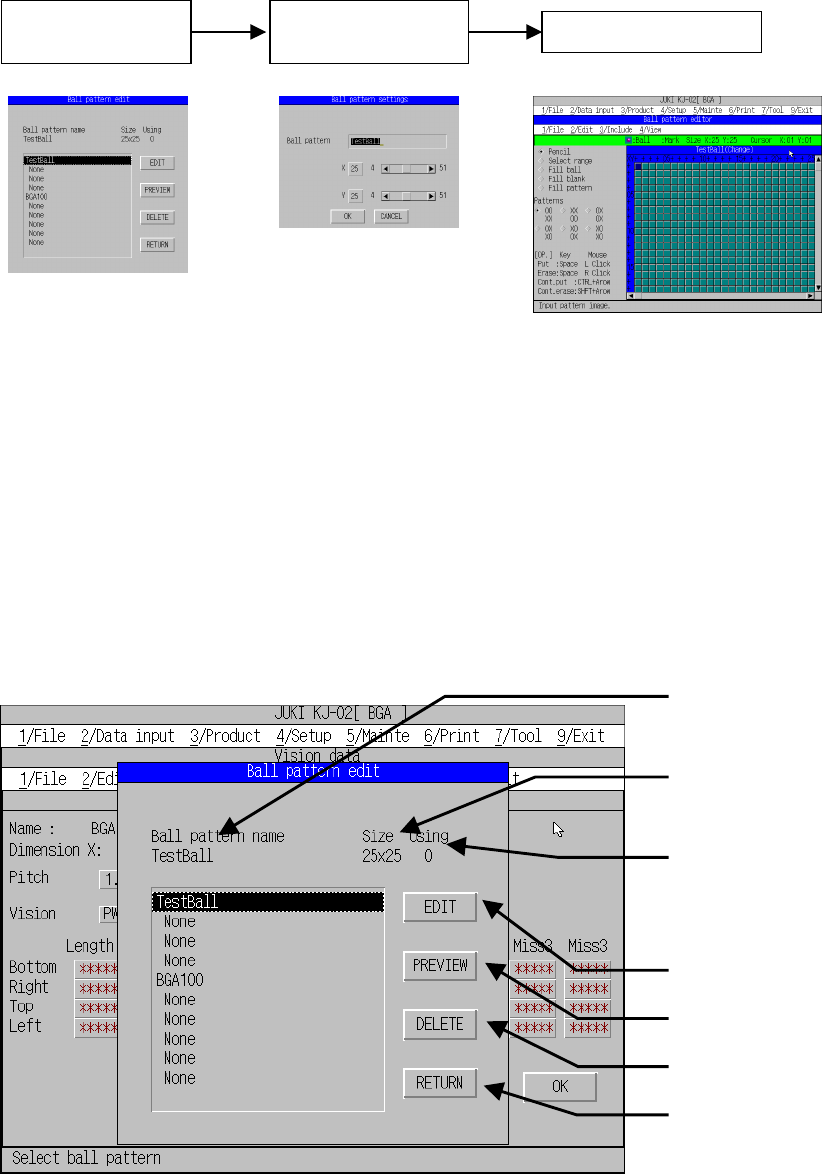

Figure 6.5.4.2.1 Ball pattern editing dialog box
Pattern name being
selected with the cursor
Pattern size being
selected with the cursor
Number of patterns
used in the Vision data
(number of
references)
Creates/modifies a
pattern.
Preview
Deletes a pattern.
Returns to the previous
screen before activating
this dialog box.
Specification of the
pattern area
Setting of the
pattern name and
i
Pattern editing
Ball pattern editing
dialog box
Ball pattern setting
dialog box
6 − 38
(1) Preview
This function checks the pattern already created immediately.

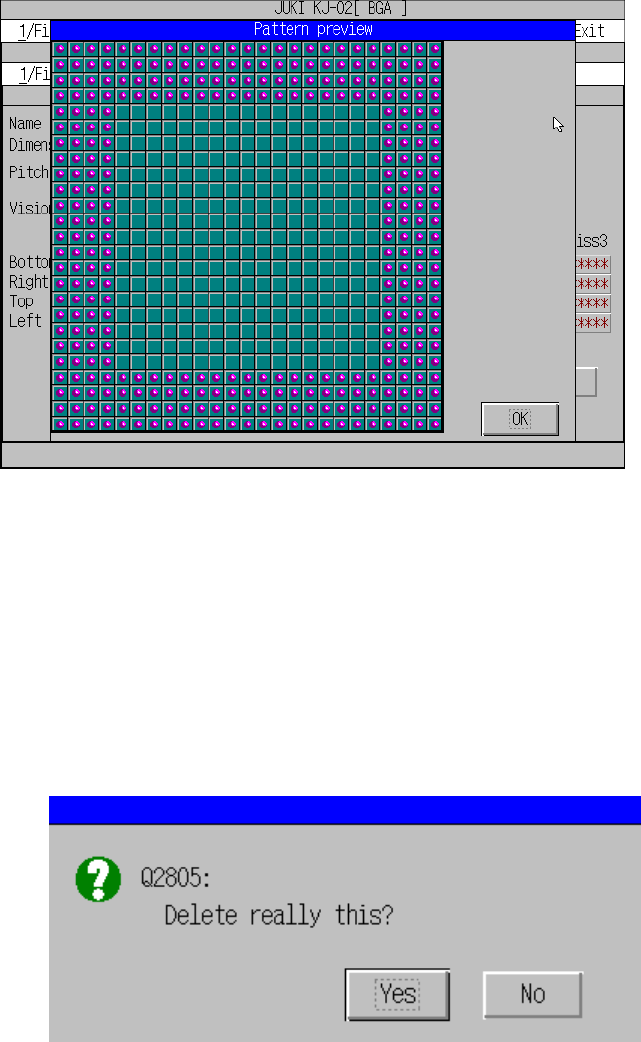

Figure 6.5.4.2.2 Ball pattern preview
(2) Deleting a pattern
If you try to delete the pattern data being used in the Vision data, the following
confirmation message appears. When you execute this delete function, the
pattern selection in the BGA vision data becomes invalid. When you click “OK”,
the pattern is deleted. When you click “Cancel”, the delete operation is canceled.
Figure 6.5.4.2.3Ball pattern delete confirmation message
6 − 39
6.5.4.3 Specifying the ball pattern size and name
(1) Entering the ball pattern size and the pattern name
Set the pattern name and pattern size when you are to create new pattern data
or modify the created data.

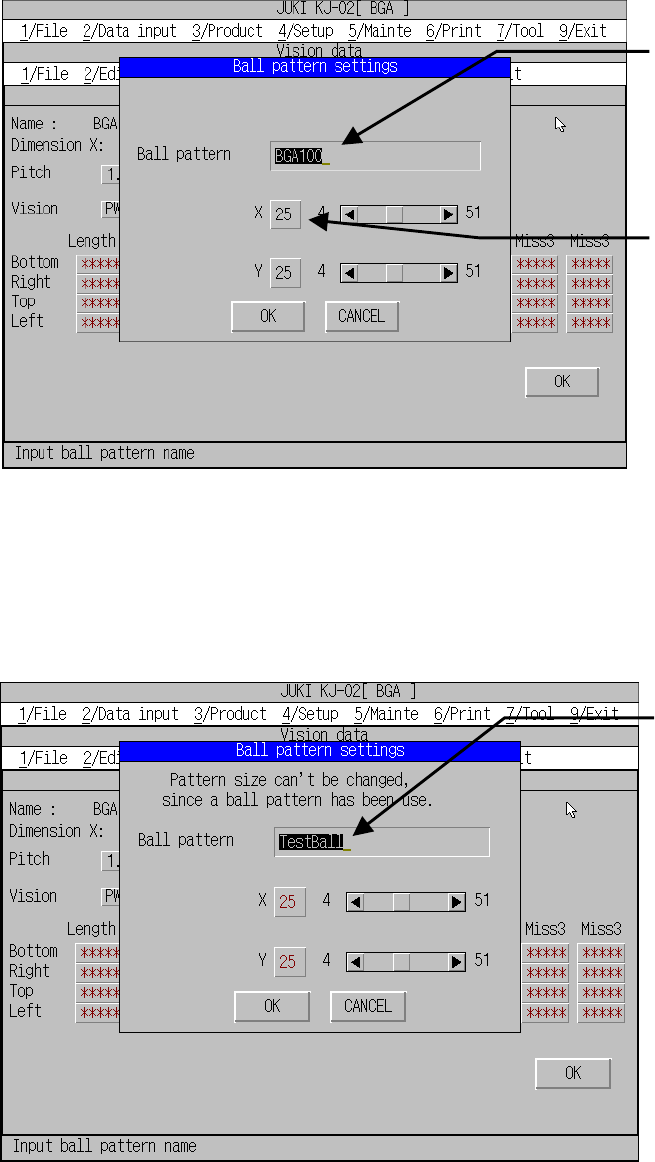

Figure 6.5.4.3.1 Ball pattern setting dialog box
If the pattern is used in the BGA vision data also, only its name can be changed.
To change the size, cancel the pattern reference performed in the vision data (such
as selecting the default pattern as the ball pattern) first.
Figure 6.5.4.3.2 Ball pattern setting dialog box
(for the pattern being used in the Vision data)
Enter the pattern name.
A
t lease one character to up
to 25 characters are allowed
as a pattern name.
Specify the pattern size:
length and width in the
range from 4 to 51.
Only the pattern name
can be changed.
After changing, the
pattern name is
changed in the Vision
data too automatically.
