11 − 6
⑧ Table 11.2.1.3.2 shows the items to be set on the “Production program print”
mode setting screen.
Table 11.2.1.3.2 Each production program data list and its mode setting items
No. Data type Description Default Minimum Maximum
1 PWB data list Since all data is always printed, you cannot set
any item.
All data
Specify whether mark information is printed or not. Print mark data Print mark data/Do not print
mark data
Start No. 1 1 Number of
data records
2 Placement data
list
Stop No. Number of data
records.
1 Number of
data records.
Specify which data is to be printed: all data or
main data only.
Print all Print all/Basic data only
Start No. 1 1 Number of
data records
3 Component data
list
Stop No. Number of data
records.
1 Number of
data records.
Specify which data is to be printed: all data, main
data in the input order, or main data in the feeder
order.
Print all Print all/Pick list only/Print
form
Start No. 1 1 Number of
data records
4 Pick data list
Stop No. Number of data
records.
1 Number of
data records.
5 Vision data list Specify which data is to be printed: all data or
main data only.
Print all All data/Basic data only

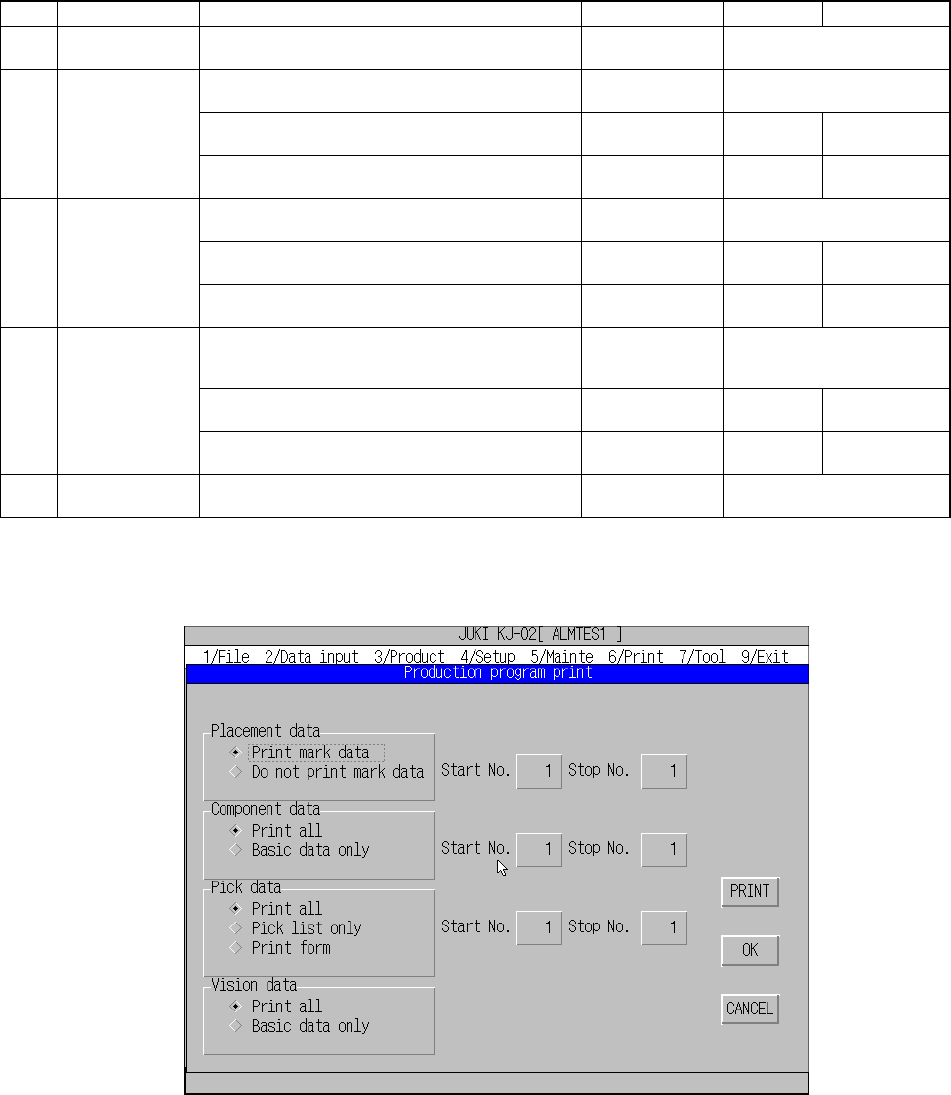

The screen for setting mode items is shown in Figure 11.2.1.3.1 below.
Figure 11.2.1.3.2 “Production program print” mode setting dialog box
⑨ Note that if you select “Print form” for the “Pick data”, the specified data range
becomes invalid.
11 − 7
11.2.1.4 Setup data
① When you select the [6/Print] command from the main menu, then the [3/Setup]
command on the displayed menu, the “Print” message box appears on the
screen to ask you whether to print data as shown in Figure 11.2.4.1.1.
Figure 11.2..4.1.1 Setup data printing dialog box
② When you click the <PRINT> button, the machine starts printing the setup data.
11 − 8
11.2.1.5 Production information
① When you select the [6/Print] command on the main menu, and then the
[Production info] command on the displayed menu, the “Production information
print” screen appears as shown in Figure 11.2.1.5.1.
Figure 11.2.1.5.1 “Production information print” dialog box
② Check the check box for the data to be printed, and click the <PRITN> button.
The machine starts printing data.
③ When the machine starts printing, the “PRITN” message box appears. When
the machine finishes printing data, this message box disappears, and the main
menu reappears.
④ Note that you have to press the Esc key or click the <CANCEL> button to
cancel the current printing operation after the machine starts printing.
Note: For the production information list, you cannot select it at Step 1 if the
machine has not produced any PWB.
