14 − 11 14.3.2 Transport sensors Remove dirt and dust on the sensor s. W ARNING T o prevent the body from injury which can be caused by accident al activation of the machine, cut of f the power to the machine before star…
14 − 10
(1) X axis
Check
Check that there is no dirt or dust on the rails of the X axis direct drive unit YR
and YL.
(2) Y axis
Check
Check to see if there is no dirt or dust on the rails of the Y axis direct drive unit.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.

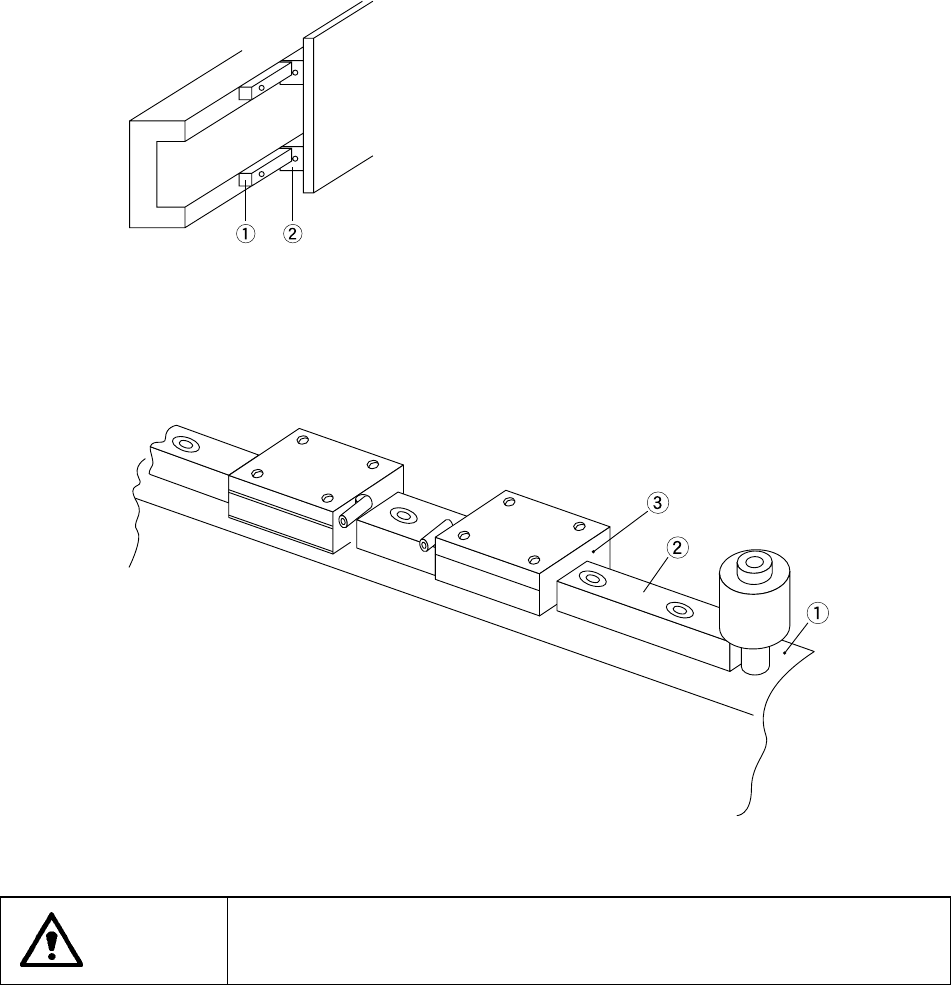

① X-shaft direct-drive unit rail (x 2)
② X-shaft direct-drive unit (x 4)
① Y-shaft frame (x 2)
② Y-shaft direct-drive unit rail (x 2)
③ Y-shaft direct-drive unit (x 4)
14 − 11
14.3.2 Transport sensors
Remove dirt and dust on the sensors.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.
PWB detecting sensor B
PWB detecting sensor C
PWB detecting sensor A
14 − 12
14.3.3 Laser align sensor (MNLA/FMLA head)
Check to see if there is any dirt on the sensor window.
If the sensor window is dirty or unclear, clean it with clean cloth or gauze lightly
moistened with alcohol.
Note: If you use not alcohol but any solution such as acetone and thinner, the resin
part around the sensor window may fuse. Never use any solvent other than
alcohol.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.
sensor window
