8 − 19 Operation <1> Invo cation Select [ 3/ Conversion data] in t he menu bar of the PW B production screen. The “ Component num set up” screen is displayed in the f orm of list , and it consists of three sections…
8 − 18
② Items to be set
1 Initial Set the number of components supplied as packed and before using them.
The number of remained components also changes when the initial setting is
changed or a new value is entered.
This value is automatically set by referring to the row and line numbers of the
tray in the tray window.
− When setting is made with 0
The subtraction of the remained number is not performed, and production
continues until an retry over occurs.
− When setting is made with any number other than 0
This value is entered for the remaining number when the [1/Replenish
component] command in the menu bar is used. The remaining number is
counted down, and when it becomes below the specified value, the signal light
flashes to warn the operator.
2 Remain
− Displays the number of remaining components when the number of
components is referred to.
The number is counted down every time a component is picked during
production.
− No subtraction is made when the initial value is 0.
− When the initial value is changed, the number of remaining components
changes accordingly
Only the number of remaining components can be changed depending on the
supplied components.
− When the number of components becomes below the specified value, the
signal light flashes to warn the operator.
− The status is set as an error when the number of the remaining quantity
becomes zero.
− When multiple trays are installed, the number of remaining components is
checked for the last tray, and the signal light flashes in yellow.
3 Level When the number of remaining components becomes below the specified
value in the “Level” field, the yellow signal light flashes to warn the operator.
This is not effective when the initial value is set to 0. When a initial value is set,
the level is set to 0.
4 Warning Displays an error for the component feeding.
*: This indicates that the number of components is below the specified value.
E:This indicates that a pick up retry over occurred, and pick up action from that
feeder or tray is stopped.
To exit from this status, When you enter the number of components or
execute the reset command.
(2) When the signal lights indicate that the stocked components run out
In the following cases, the main unit uses the signal lights to indicate that the
stocked components run out and warn the operator.
Table 8.2.1.2.1 Conditions for the signal light flashing in yellow
No. Feeder type Conditions of the yellow signal light to flash
1 Tape feeder
Stick feeder
Bulk feeder
For each feeder:
- When a pick up retry over occurred.
2 Tray holder For each component:
- When the number of remaining components becomes below the specified
value.
- When a pick up retry over occurred.
- When all the parts set for the number of components have been used.
8 − 19
Operation
<1> Invocation
Select [3/ Conversion data] in the menu bar of the PWB production screen.
The “Component num setup” screen is displayed in the form of list, and it
consists of three sections of data: Front side, Rear side and tray holder
respectively. To switch those sections with each other, click the [1/Supply
select] command on the menu bar of the “Component num setup” screen.

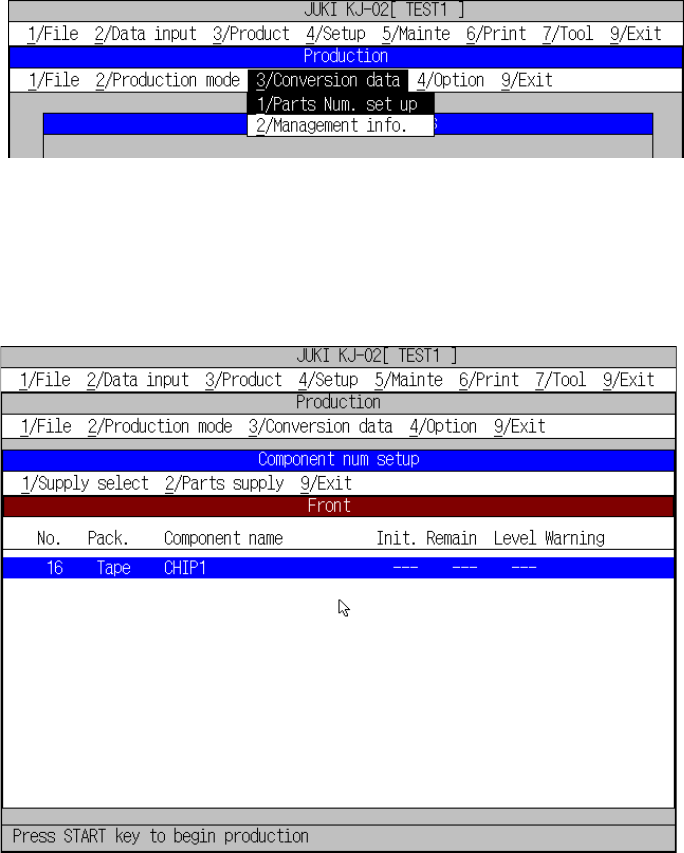

Figure 8.2.1.2.1 shows how to invoke the “The components number setup”
dialog box.
Figure 8.2.1.2.1 The components number setup
− “Component num setup” screen for the front/rear sides
Figure 8.2.1.2.2 Number of component for the front side setting screen
8 − 20
− “Component num setup” screen for a tray holder
When you select a tray holder with the [1/Supply select] command, the screen
shown in Figure 8.2.1.2.3 appears.
Figure 8.2.1.2.3 Number of component for the try holder setting screen
(1) Initial
Enter an initial value at the cursor position.
(2) Remain
Enter the number of remaining components at the cursor position.
(3) Level
Enter the level of the number of remaining components at which a warning
is output.
(4) Warning
The cursor does not move to this item. The indication disappears when the
number of remaining components is entered or any item of the [2/ Parts
supply] command menu is executed.
Move the cursor to a desired entry field by the ”(UP), ”(DOWN),
SCROLL, PAGE-UP, and PAGE-DOWN keys.
