14 − 24

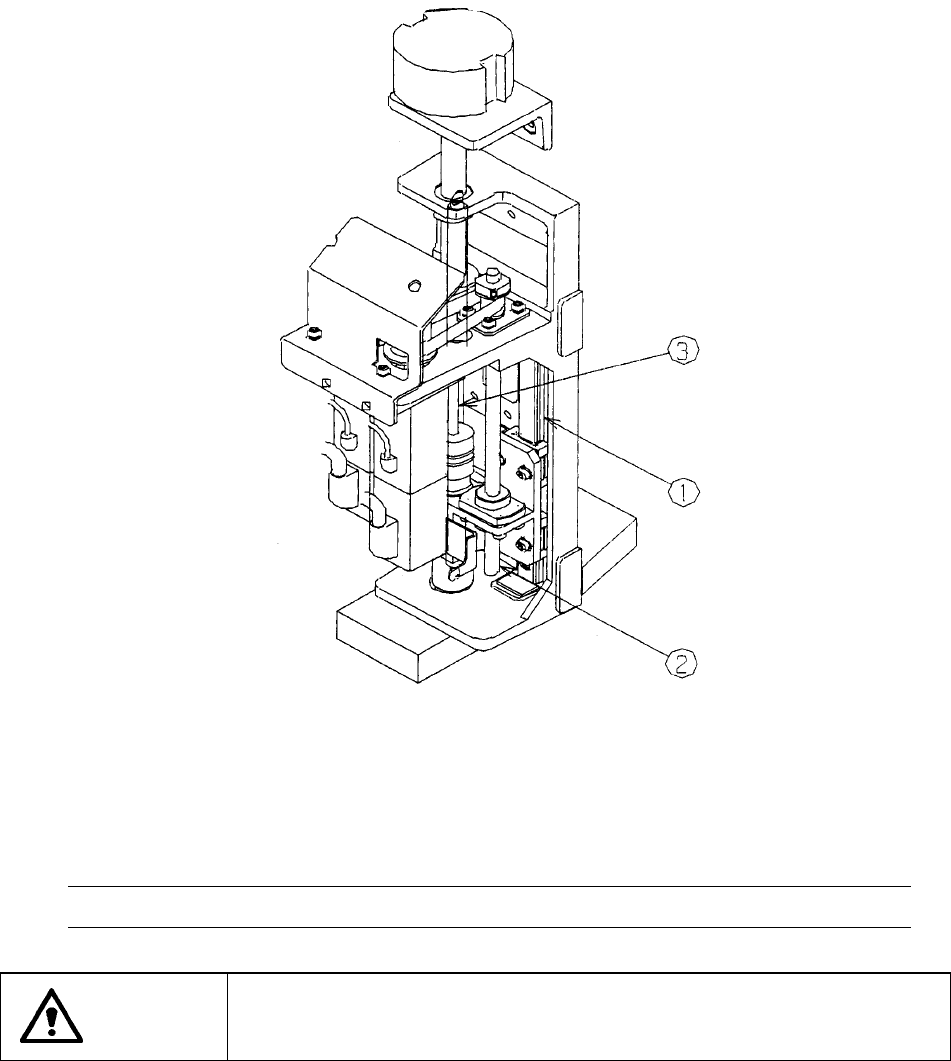

14.4.4 Ball screws and Linear way (Head part) (KJ-02)
Apply a light coating of grease (C grease) to the ball screws and the linear way rails.
Apply a light coating of grease (C grease) to the spline shaft axis.
After applied the grease, move the Z axis by hand for the grease to be fit.
After fitting grease to the spline shaft axis sufficiently, remove extra grease with
cloth or similar matter so that it cannot be splattered.
① Linear way
② Ball screws
③ Spline shaft
Notes: Never apply any grease other than C grease to the parts above.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.
14 − 25
14.4.5 Backup table
Apply grease to the support shafts (four) thoroughly.
Lift up the support table with your hands, and grease it from the both sides.
WARNING
To prevent the body from injury which can be caused by accidental
activation of the machine, cut off the power to the machine before starting
to work.
Support table
Support shaft
KJ-01/02
ERROR MESSAGE
TABLE
