9 − 3
If a production program file you specified already exists under the copy destination
directory, the following message appears on the screen.
When you click the <Yes> button, the machine overwrites the existing production
program file with the file you specified. When you click the <No> button, the machine
cancels the copy operation.

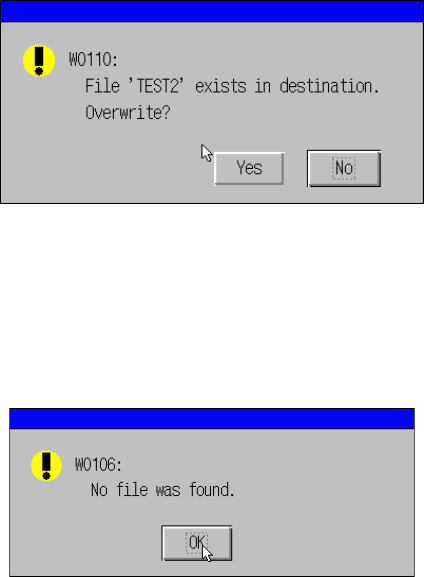

Figure 9.1.5 Message dialog box displayed if a file of the same name exists
If the production program file you specified does not exist under the copy source
directory, the following message appears on the screen.
Figure 9.1.6 Message dialog box displayed
if the specified production program file does not exits
Note: Only files whose extension is “J12” appear on the file list.
9 − 4
9.2 Deleting a File
The command “File delete” is used to delete a production program file. While this
command is selected, the following dialog box appears.
Figure 9.2.1 File deleting dialog box
When the file name is specified and “OK” button pressed, the following message
appears.
Figure 9.2.2 Dialog box confirming deletion of file
When the “YES” button is then pressed, the machine executes the delete command.
The “Cancel” button cancels the delete command, returning the machine to the state
before [1/ File] was selected.
The extension “.J12” is appended to all file names shown in the file list box.
9 − 5
9.3 Renaming a File
This command renames the name of a production program file. First, specify the file
whose name you want to change.
Figure 9.3.1 File renaming dialog box (Screen example when you use a KJ-02)
If a production file whose name is the same as a new name you specified already
exists, the machine displays the following message and will not rename the file name.
Figure 9.3.2 Message dialog when illegal file name is specified
Note: Only files whose extension is “J12” appear on the file list..
