6 − 5 ⑩ J lead sock et (T op view ) ⑪ Gull wing sock et (T op view ) ⑫ Sock et with bumper (T op view )

6 − 4

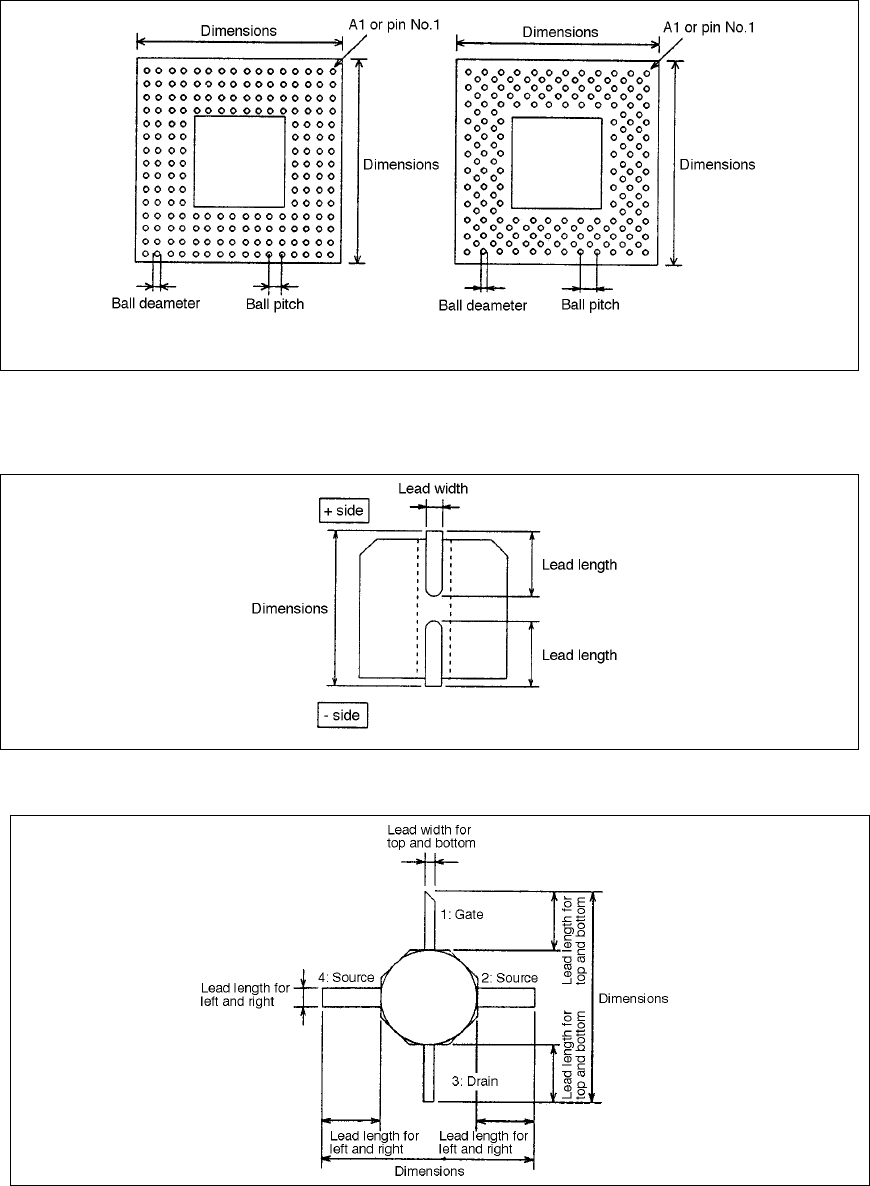

⑦ BGA, FBGA (Bottom view)

Normal assignment Stagger assignment

⑧ Aluminum electrolytic capacitor (Bottom view)

⑨ GaAsFET (Top view)

6 − 5

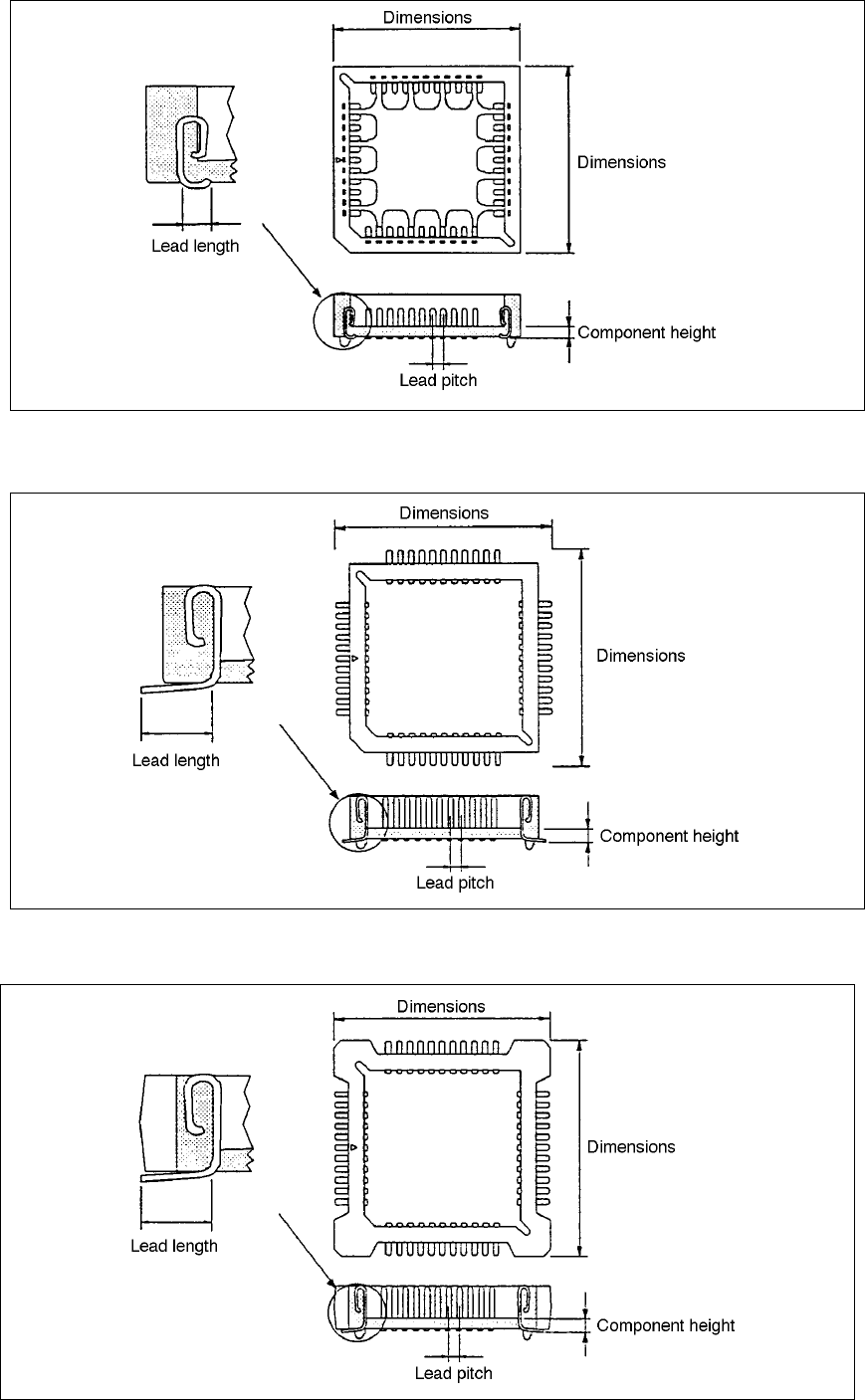

⑩ J lead socket (Top view)

⑪ Gull wing socket (Top view)

⑫ Socket with bumper (Top view)

6 − 6

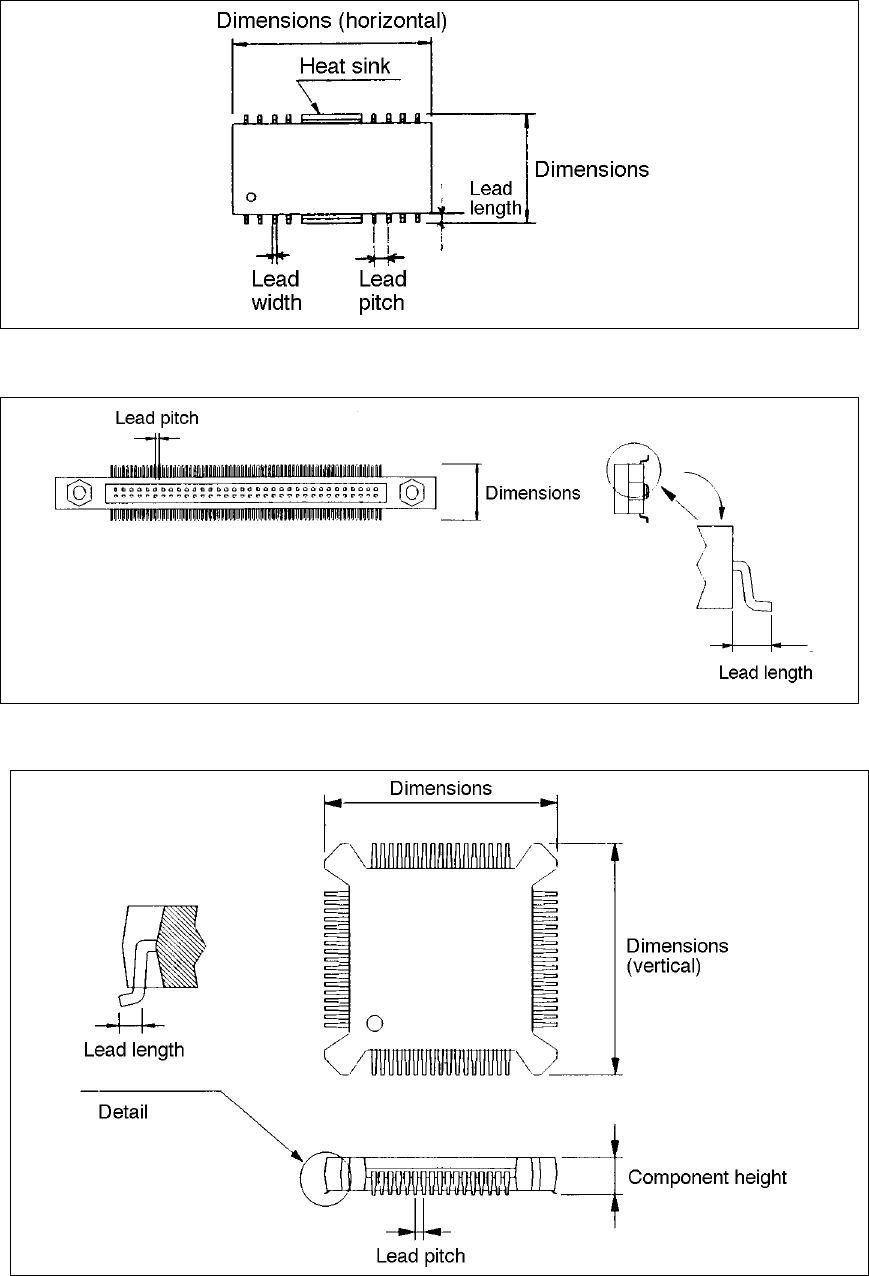

⑬ SOP (with a heat sink) (Top view)

⑭ Two-way lead connector (Top view)

⑮ BQFP (PGFP) (Top view)
