1 − 32 Table 1-4-1 List of connectors on the left side panel Signal name (left to right) Signal name (right to left) Connector used 1 READY OUT ＋ READY IN ＋ 2 READY OUT － READY IN － （ GND ） 3 BOAD AVAILABLE IN ＋ BOAD AVA…
1 − 31
(4) ⑤ is a DSUB 25-pin connector for a printer conforming to the Centeronics
Interface standards.
(5) ⑥ is a connector for an optional trackball.
(6) ⑦ is a connector for a keyboard.
(7) ⑧ is an air coupling for a CAL block.
(8) ⑨ is a female union for a 32-mm adhesive tape feeder.
(9) ⑩ is a 6-pin ALARM signal connector for an optional IC trash belt.
(10) ⑪ is a 12-pin power connector for an optional IC trash belt or 32-mm adhesive
paper tape feeder. Eight connectors of the same type are located on the front of
the machine.
Figure 1.4.2
⑧
⑨
⑩
⑪
⑤
⑥
⑦
1 − 32
Table 1-4-1 List of connectors on the left side panel
Signal name (left to right) Signal name (right to left) Connector used
1 READY OUT ＋ READY IN ＋
2 READY OUT － READY IN － （GND）
3 BOAD AVAILABLE IN ＋ BOAD AVAILABLE OUT ＋
4 BOAD AVAILABLE IN － （GND） BOAD AVAILABLE OUT －
5 N.C. N.C.
6 N.C. N.C.
7 N.C. N.C.
8 N.C. N.C.
9 N.C. N.C.
10 N.C. N.C.
11 N.C. N.C.
12 N.C. N.C.
13 N.C. N.C.
14 N.C. N.C.
Table 1-4-2 List of connectors on the right side panel
Signal name (left to right) Signal name (right to left) Connector used
1
READY IN ＋ READY OUT ＋
2
READY IN － （GND） READY OUT －
3
BOAD AVAILABLE OUT ＋ BOAD AVAILABLE IN ＋
4
BOAD AVAILABLE OUT － BOAD AVAILABLE IN －
（GND）
5
N.C. N.C.
6
N.C. N.C.
7
N.C. N.C.
8
N.C. N.C.
9
N.C. N.C.
10
N.C. N.C.
11
N.C. N.C.
12
N.C. N.C.
13
N.C. N.C.
14
N.C. N.C.
(Connection of the
cable end 206044-1)
AMP
206043-1
(Connection of the
cable end 206044-1)
AMP
206043-1
1 − 33

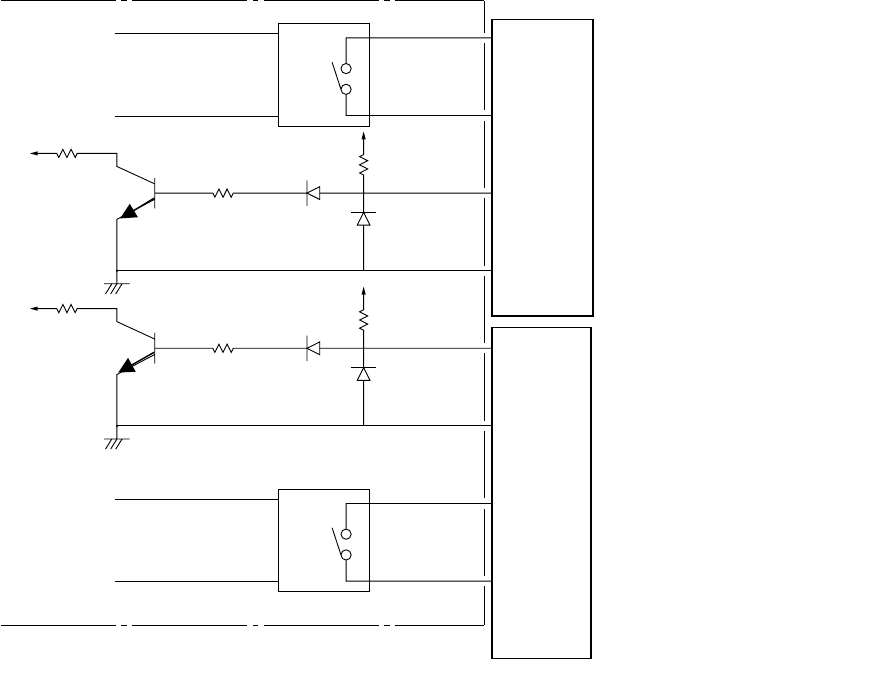

Figure 1.4.3 shows the interface circuits for READY OUTs (IN) and BOARD
AVAILABLE signals.
They conform to the SMEMA standard.
GND
READY OUT 1
READY OUT 2
BOARD AVAILABLE 2
BOARD AVAILABLE 1
READY IN
BOARD AVAILABLE 3
BOARD AVAILABLE 4
+24V
15kΩ
+24V
15kΩ
Figure 1.4.3
1
2
3
4
5～14
1
2
3
4
5～14
READY OUT+
READY OUT-
BOARD AVAILABLE IN+
BOARD AVAILABLE I N-
N.C.
4.7ｋΩ
4.7ｋΩ
READY IN+
READY IN-
BOARD AVAILABLE OUT+
BOARD AVAILABLE OUT-
N.C.
