4-18 Fast Flexible Placer SM481(L) PLUS Administ r ator’s Guide Indicates the presently rotated angle from the hom e position of R a xis for head 9.  Head 10/Axis Z When the check box for <From home sensor> i s no…

4-17

Tools Shortcut Menu

Indicates the presently rotated angle from the home position of R axis for head 2.

 Head 3/Axis Z

When the check box for <From home sensor> is not ticked, the height of the

nozzle tip of head 3 on the PCB is indicated.

 Head 3/Axis R

Indicates the presently rotated angle from the home position of R axis for head 3.

 Head 4/Axis Z

When the check box for <From home sensor> is not ticked, the height of the

nozzle tip of head 4 on the PCB is indicated.

 Head 4/Axis R

Indicates the presently rotated angle from the home position of R axis for head 4.

 Head 5/Axis Z

When the check box for <From home sensor> is not ticked, the height of the

nozzle tip of head 5 on the PCB is indicated.

 Head 5/Axis R

Indicates the presently rotated angle from the home position of R axis for head 5.

 Head 6/Axis Z

When the check box for <From home sensor> is not ticked, the height of the

nozzle tip of head 6 on the PCB is indicated.

 Head 6/Axis R

Indicates the presently rotated angle from the home position of R axis for head 6.

 Head 7/Axis Z

When the check box for <From home sensor> is not ticked, the height of the

nozzle tip of head 7 on the PCB is indicated.

 Head 7/Axis R

Indicates the presently rotated angle from the home position of R axis for head 7.

 Head 8/Axis Z

When the check box for <From home sensor> is not ticked, the height of the

nozzle tip of head 8 on the PCB is indicated.

 Head 8/Axis R

Indicates the presently rotated angle from the home position of R axis for head 8.

 Head 9/Axis Z

When the check box for <From home sensor> is not ticked, the height of the

nozzle tip of head 9 on the PCB is indicated.

 Head 9/Axis R

4-18

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

Indicates the presently rotated angle from the home position of R axis for head 9.

 Head 10/Axis Z

When the check box for <From home sensor> is not ticked, the height of the

nozzle tip of head 10 on the PCB is indicated.

 Head 10/Axis R

Indicates the presently rotated angle from the home position of R axis for head 10.

 Mirror

Indicates the presently rotated angle from the home position of mirror rotation axis for

fly camera.

 <Close> button

Close the <Position> dialog box, End the <Current Position> command.

4-19

Tools Shortcut Menu

4.7. Manual Tool

Execute this menu for manual operation as follows. This menu should only be executed by

a user with the proper service user authorization.

 Executed to operate each axis motor of the machine manually and obtain the

coordinates of the corresponding axis

 Executed to check the camera status or capture the vision image

 Executed to check the light for the camera or to check the head movement

Performs manual operation of the equipment. When this command is selected, the

following dialog box is displayed.

4.7.1. Axis Tab dialog box

Used for moving the selected object by operating the motor for each axis, or for obtaining

the present coordinates of the object.

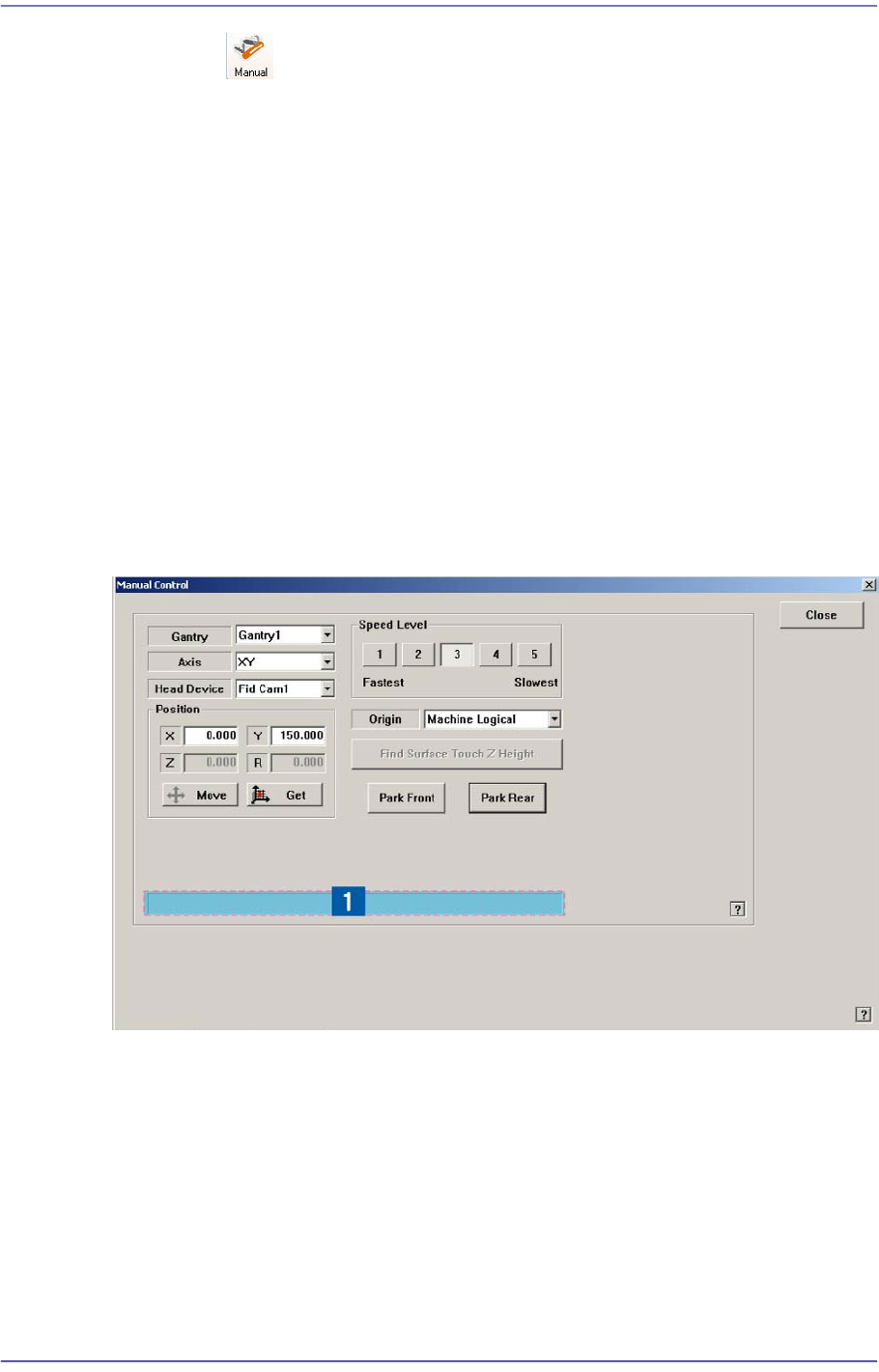

Figure4.7 “Manual Control – Axis” dialog box

1: Status Indication Area

 <Gantry> combo box

Select the gantry to be operated manually.

 <Axis> combo box

Select the driving motor to be operated. Selectable driving motors are as follows;

 XY: Select the driving motor for X-axis and Y-axis.

 Z: Select Z-axis driving motor of the head.
