 <OK> button

Transmits the set data to the equipment and closes the dialog box.

 <Cancel> button

Ignores the set data and closes the dialog box.

13.7. PCB D/L [F7]

Transmits the PCB data set in the <PCB Edit> menu to the equipment. Transmission is

possible only when the equipment status is “Finish”.

13.8. Pd. Info [F8]

Displays placement operation data for head, nozzle and feeder. Please refer to “18.1

Production Information Management [Pd. Info]” for more information.

13.9. Flux. [F9]

Perform setup for the warning message related to the operation of the flux module.

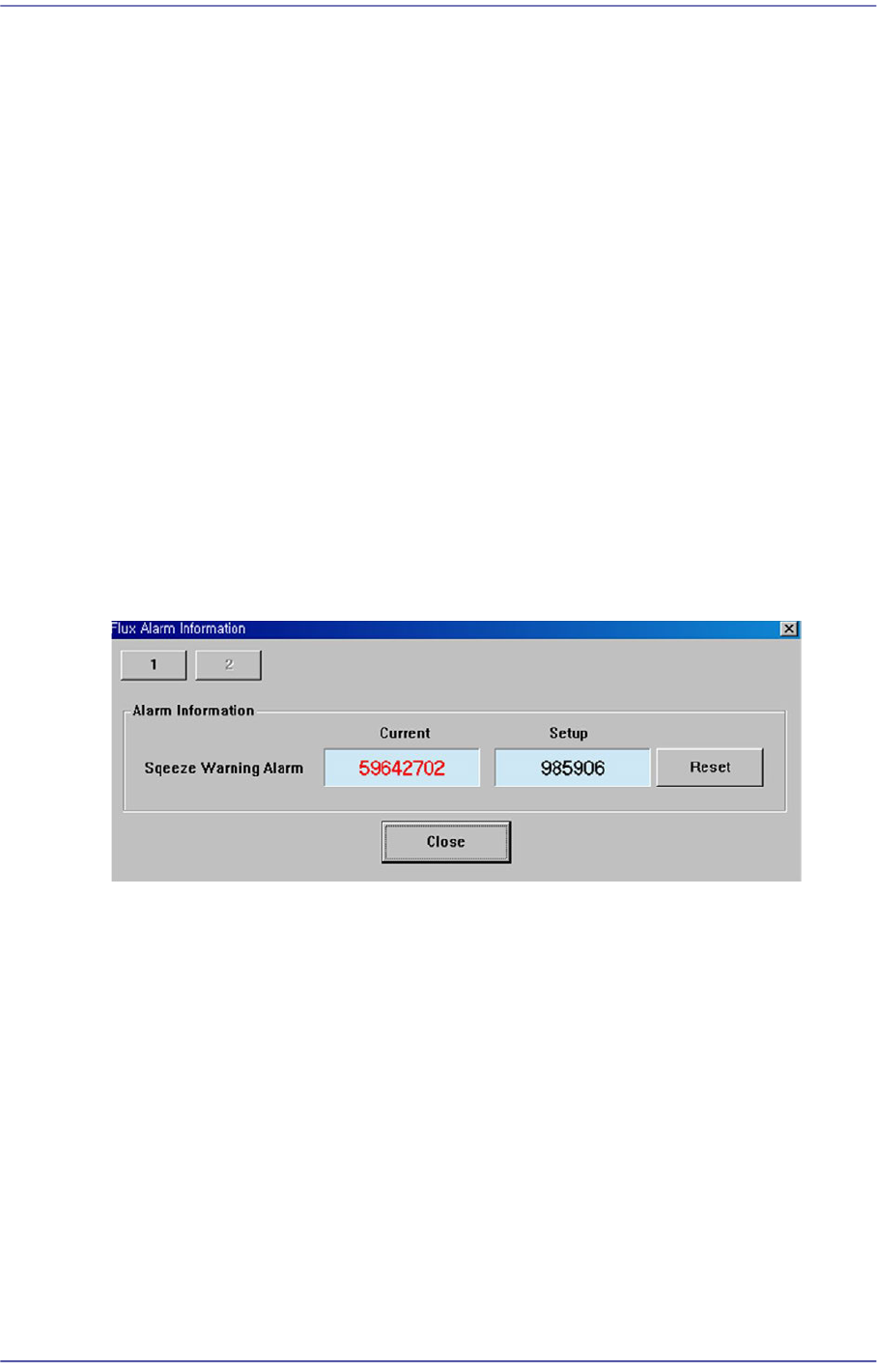

 <Squeeze Warning Alarm>

Clicking the <Reset> button will initialize the set flux module cleaning cycle. The

setup of the corresponding item can be performed in the ‘Flux’ tab dialog box in the

‘Periph.’ submenu of the ‘Sys.Setup’ menu.
