1-1

Operation Mode and Password Change

Chapter1. Operation Mode and

Password Change

1.1. Operation Mode

Refers to the mode for operating the machine. There are 4 operation modes. Each mode is

classified according to the user of the machine and the access to the MMI for each mode is

limited.

1.1.1. Operation Mode and Setup

 Operation Mode

 Operator/ Leader

Refers to a basic operation mode of the machine. The MMI is set as an operation

mode for the plain user. This mode allows only plain production work. It needs no

password.

 Programmer

Refers to a user whose level is higher than the plain user. He/she can create and

modify the PCB program.

The password for programmer mode can be changed. When changing the

operation mode from the plain user mode to programmer mode, the programmer

password must be entered.

 Manager

Refers to a user whose level is higher than the programmer. He/she can manage

overall items of the machine in addition to the service related items.

The password for the manager mode can be changed. When changing the

operation mode from the plain user mode and programmer mode to the manager

mode, the manager password must be entered.

 Service

Refers to the operation mode for the service engineer in charge dispatched from

our designated C/S company when after sales service (A/S) is required due to

machine failure, etc. The user of this mode is the highest level user, who can

access all menus of the machine.

The password for the service mode can be changed. When changing the operation

mode from the plain user mode and programmer mode to the manager mode, the

manager password must be entered.

1-2

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

 Operation Mode Change

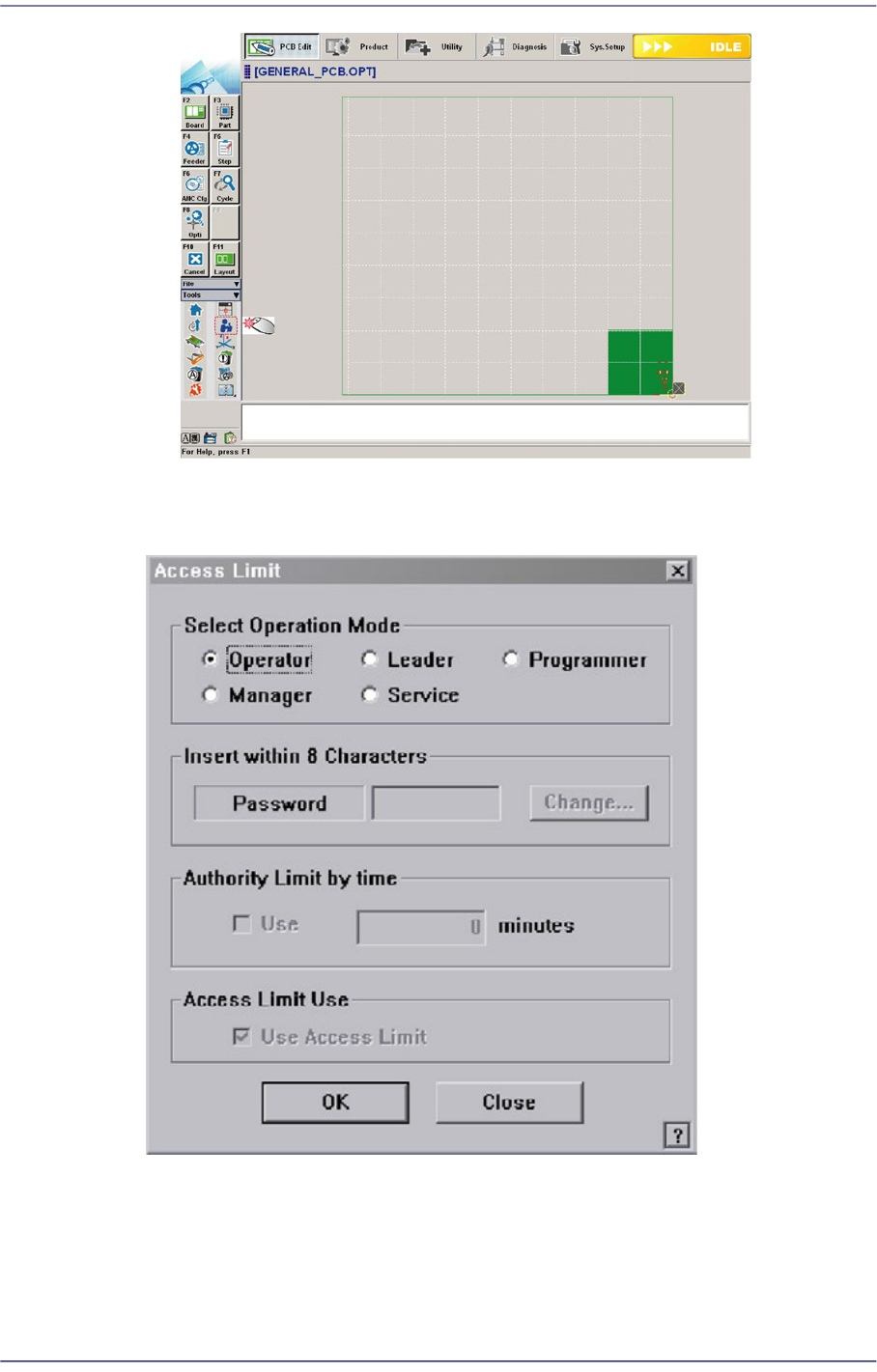

Figure1.1 Operation Mode Change

 <Select Operation Mode> group

Select the Operation Mode of the machine, and Click the <OK> button and set the

user mode.
