3-12
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
<Compare> button
Compares two DB files and indicates the part information not existing in the target DB
in the <New:> list box in the <Merge Information> group. However, information with
identical part names in the target DB file but with different saved values are indicated
in the <Diff:> list box.
Selecting the source DB file and target DB and clicking this Button will display the
comparison data between two databases as follows:
<Show: ALL> button
There are two functions: “Show: ALL” and “Show: DIFF”. Clicking this Button will
change these two functions in turn.
<Show: ALL>
Selecting the part name in the <New:> or <Different:> list box will display all part
information related to the corresponding part in the <Inform. For Part: Part Name>
group.
<Show: DIFF>
Selecting the part name in the <New:> or <Different:> list box will display only
part information with different values among the part information related to the
corresponding part in the <Inform. For Part: Part Name> group.
Figure3.8 Show :DIFF list box
3-13
File Shortcut Menu
<Item> column
Displays only part information related to the selected part in the <New:> or
<Different:> list box.
<From> column
Displays the values saved in the part information corresponding to the <Item>
column of the parts selected from the <New:> or <Different:> list box in the
source DB file.
<To> column
Displays the values saved in the part information corresponding to the <Item>
column of the parts selected from the <New:> or <Different:> list box in the target
DB file. In this case, when the part name is selected in the <New:> list box, it is
indicated as “New”.
Button
This Button is used to select the part information to be merged with the target DB file
from the <New:> or <Different:> list box and includes the corresponding information
in the <Add:> list box or <Change:> list box.
Button
This Button is used to exclude the item selected to merge into the target DB file from
the <Add:> or <Modified:> list box.
<Merge> button
Once all setups are completed, click this Button to update the target DB file. This
Button is disabled when there is no selected item in the <Add:> or <Modified:> list
box.
3-14
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

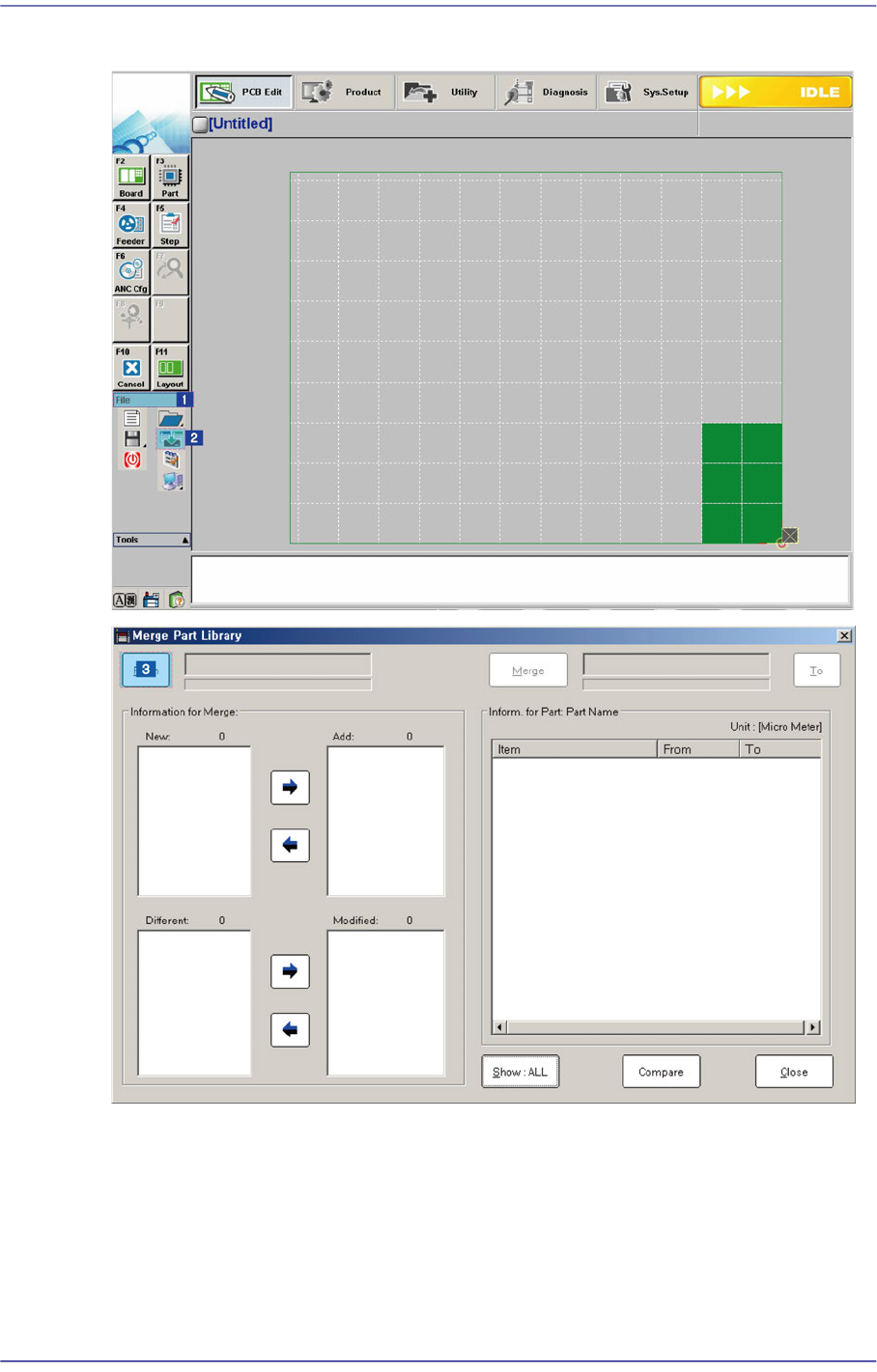

3.4.1. Part Library Merge Procedure
Click the <From> button to select the source DB file copied from the other machine
