7-26

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

 <Width> edit box

Input the width of an object to suit the image of an actual part. If the selected

object is round, input the diameter.

 <Height> edit box

Input the height of an object to suit the image of an actual part. Only when the

selected object is rectangular is this enabled.

 Lead/ Lead Group

Edits a lead shape to a defined object or deletes it.

The following shows the Gull Wing, J Lead and Land types of leads.

The following shows the coil type of lead.

The following shows the electrode type of lead.

The following shows that the object type is the lead group.

7-27

Part Registration

 <Type> combo box

Selects the type of the lead to be recognized.

 Gull Wing: Bent outward, such as SOP and QFP.

 J Lead: Bent inward, such as SOJ and PLCC.

 LAND: Exists inside the body, such as QFN.

 Coil: Applies a coil algorithm, such as Chip-Rect (Coil).

 Electrode: Recognizes a pad, such as a rectangular chip part.

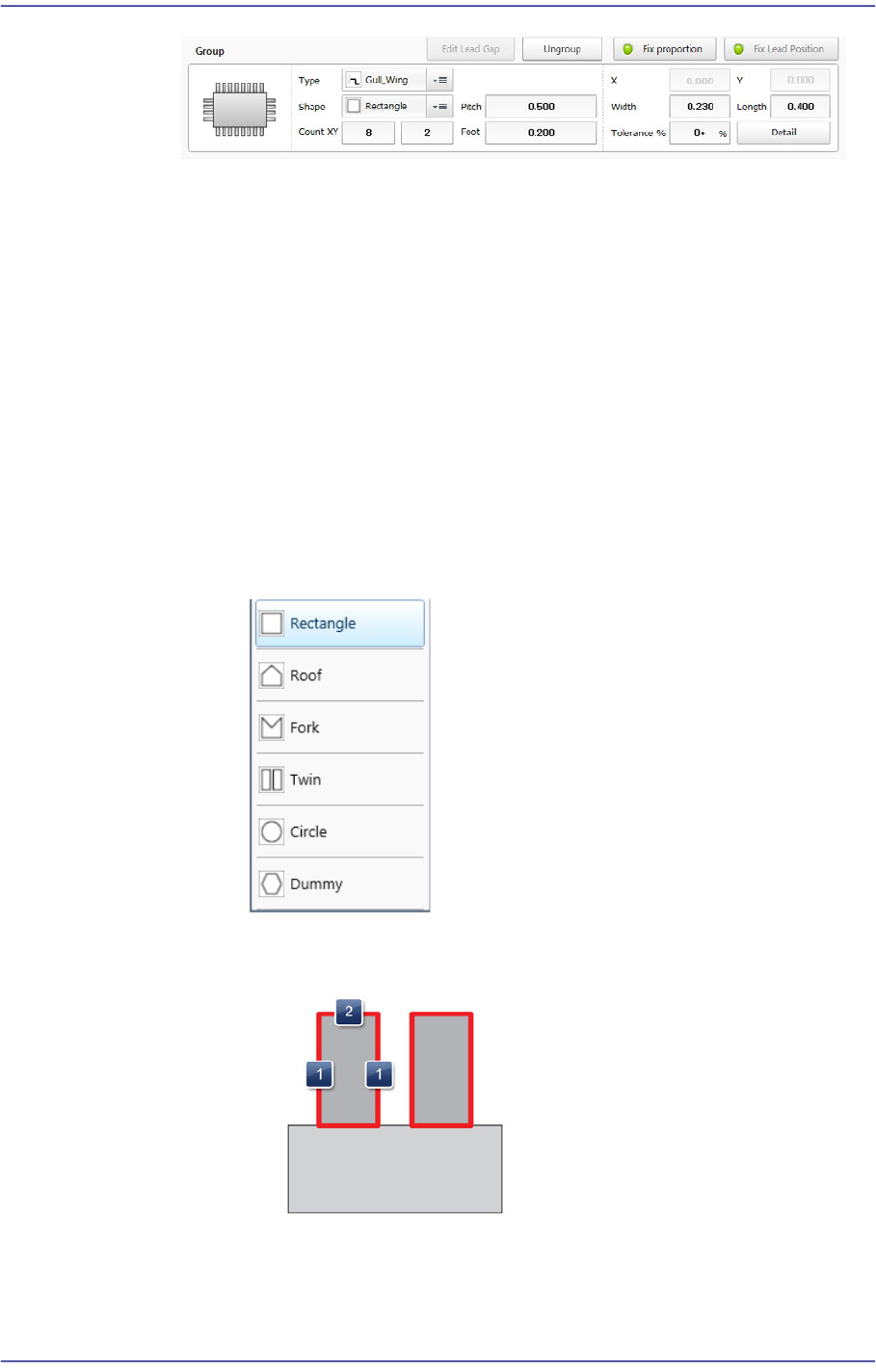

 <Shape> combo box

Selects the lead shape.

 When the lead is of Gull Wing, J Lead and Land types.

Select the shape most similar to the lead shape.

Shape definition - Lead (Rectangle)

1: Lead width change (Pitch not to be changed)

2: Lead Length change (Pitch not to be changed)

7-28

Fast Flexible Placer SM481(L) PLUS Administrator’s Guide

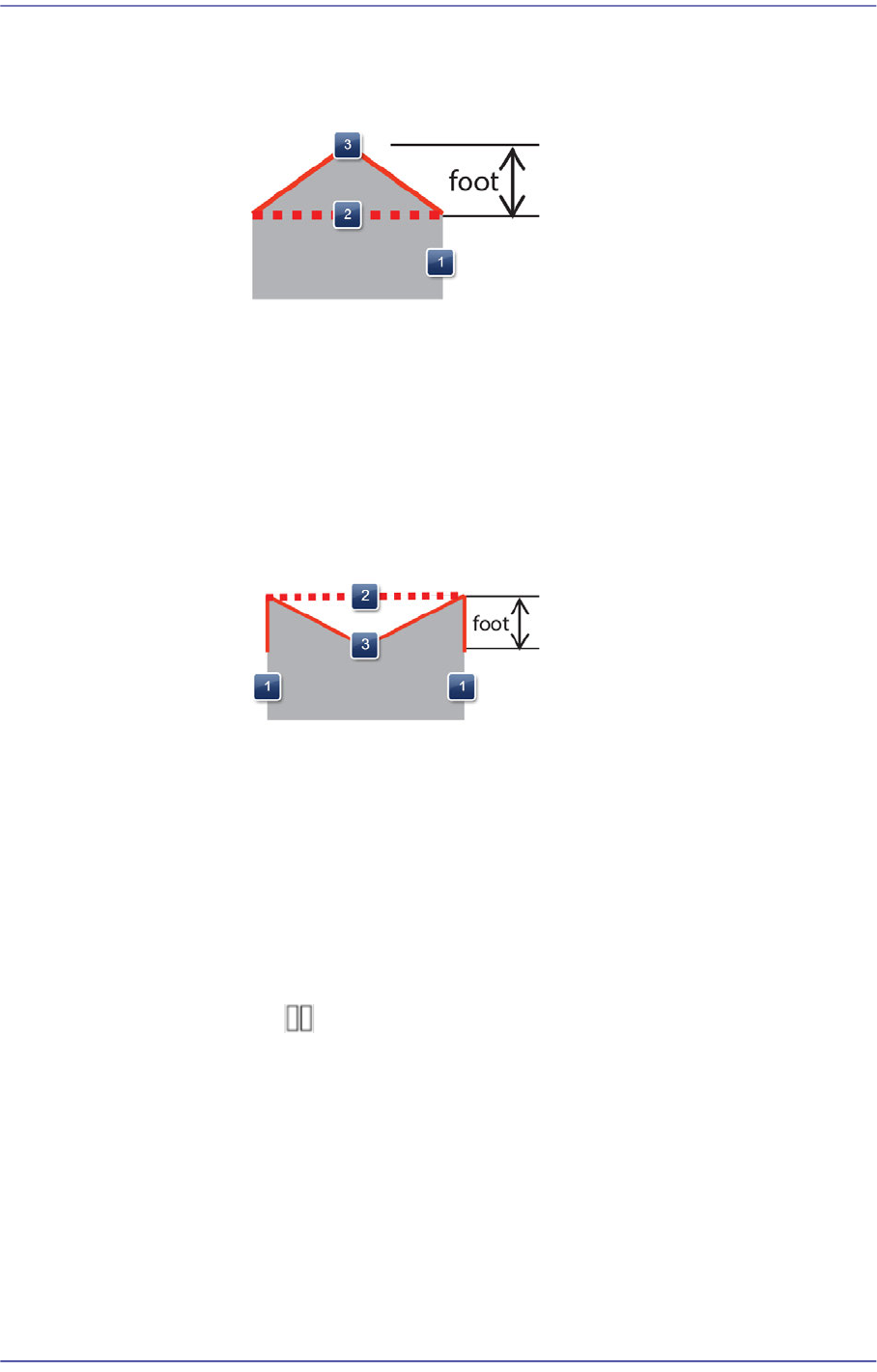

Shape definition - Lead (Roof)

1: Lead width change (Pitch not to be changed)

2: Lead Length change (Pitch not to be changed)

3: Foot length change

Shape definition - Lead (Fork)

1: Lead width change (Pitch not to be changed)

2: Lead Length change (Pitch not to be changed)

3: Foot length change

 When the lead is of coil type.

Select the shape which is adequate to recognize a coil part.

- :When the bright shapes on the right and left are recognized

clearly

Shape definition - Lead (Coil Type1)
