10-13
Optimization
10.6. Optimizer Dialog
Press the <Run Optimizer> button to execute the Optimizer. During the execution, the
following dialog box is displayed.
Figure10.6 “Optimizer” dialog box
In the first group, the equipment model name, number of component types and total
placement positions are displayed.
Then, in the second group, the optimizer execution progress is indicated with check mark.
Check marked item is the one that is being executed. In the third group, more detailed
progress status, execution time of the optimizer (Elapsed Time) and the remaining
execution time (Remaining Time) are displayed.
The progress bar below the third group indicates how much the calculation process has
progressed for each step.
The Cancel/Stop buttons are used to stop the optimizer execution while it is being
executed. At normal state it is marked as “Cancel”. If it is pressed at this state, the massage
box called “User Break” appears and then the optimizer execution is canceled.

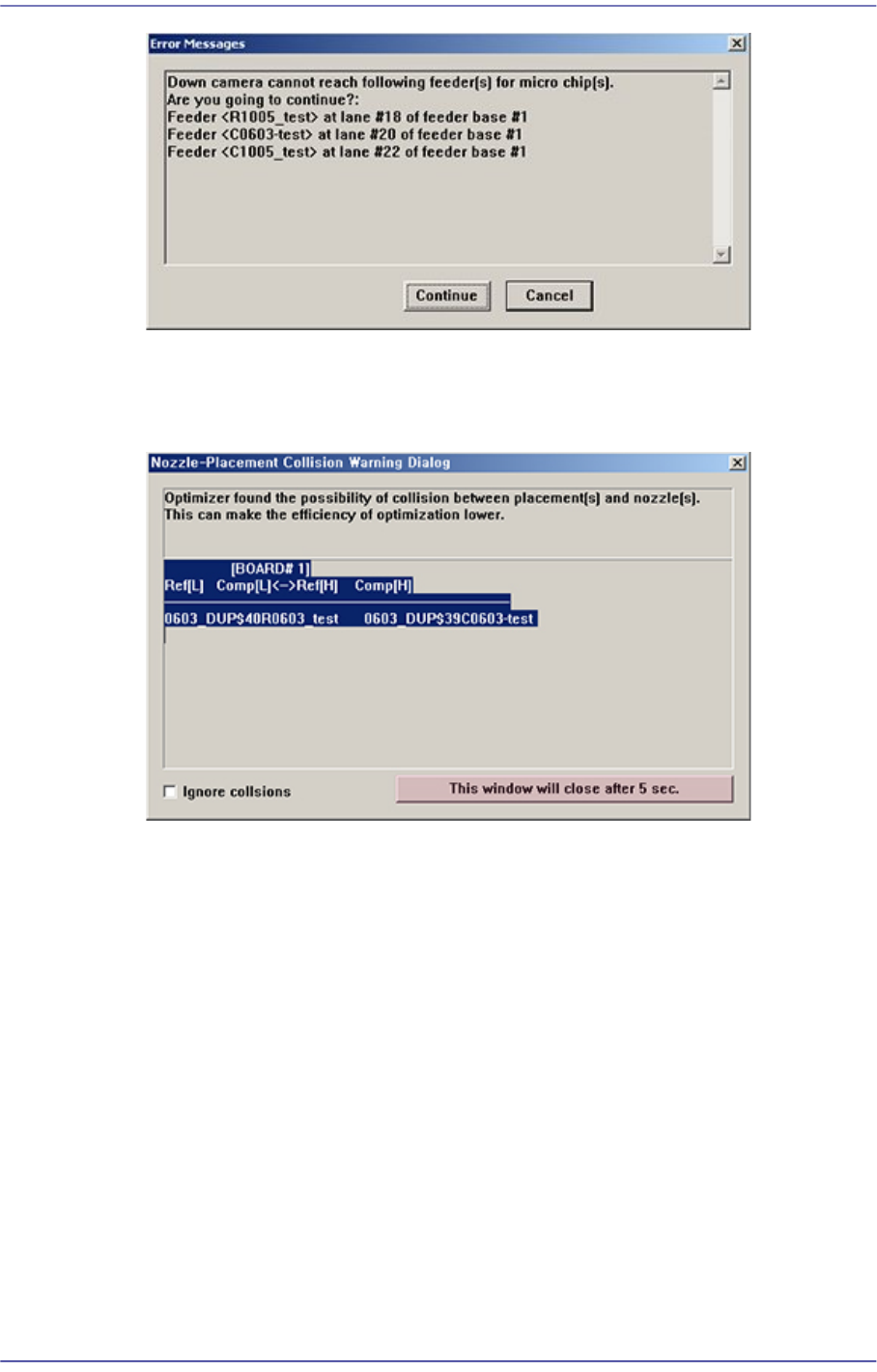

Message Type 1
Provides information to a user as shown below, and continues or stops the execution of
the optimizer according to the user’s selection.
10-14
Fast Flexible Placer SM481(L) PLUS Administrator’s Guide
Message Type 2
Provides information to a user. However, it continues to execute the optimizer after a
certain period of time lapses regardless of the user’s input.
<Ignore collsions> check box
If this check box is checked, the parts are placed in the determined work sequence
by ignoring the collision that may occur between other parts already placed and
the nozzle during part placement.
<This window …> button
Click the button to exit the message box before the indicated time. Then the
message box exits immediately and the optimizer is executed continuously.

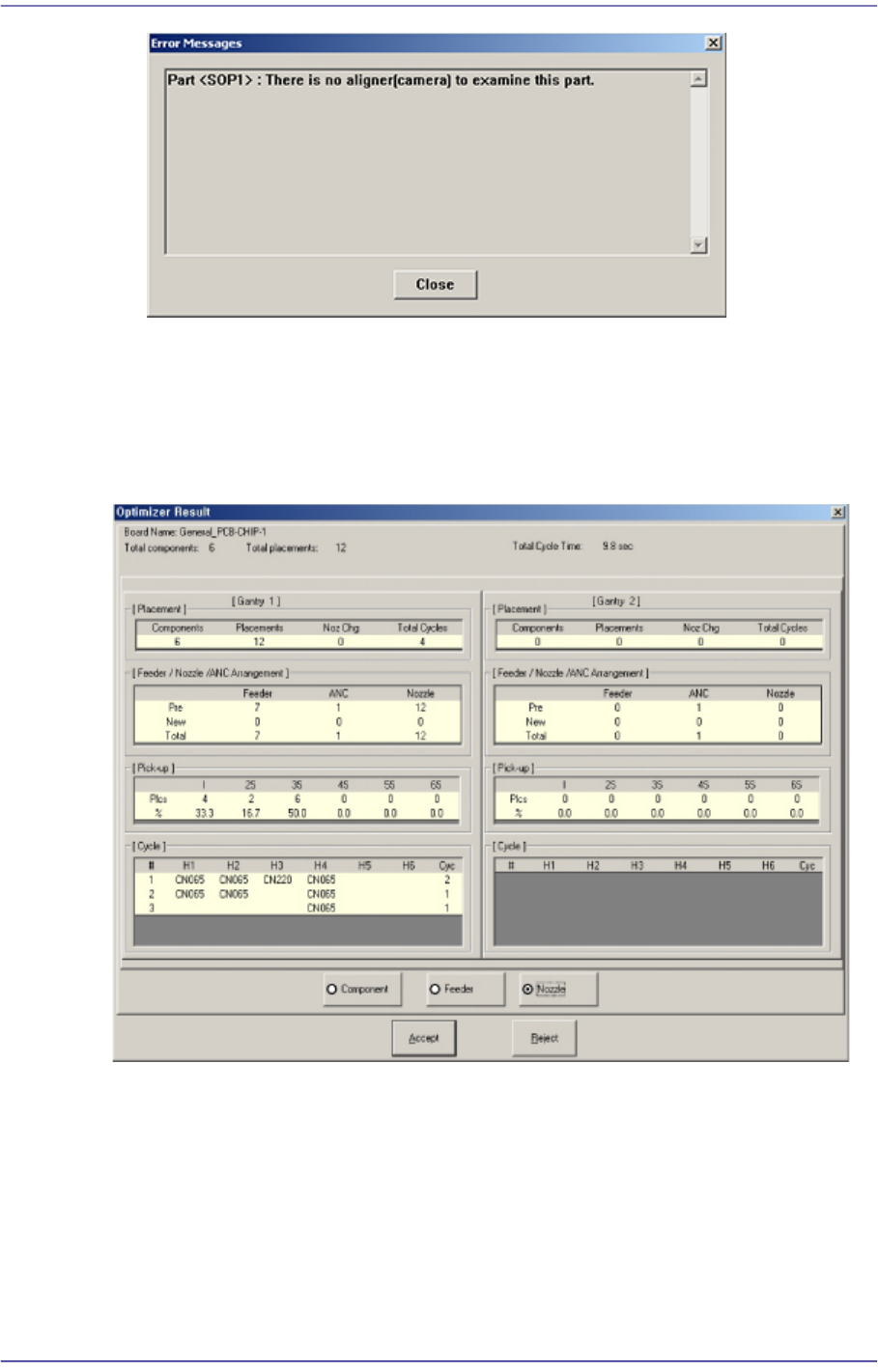

Message Type 3
Provides information to a user. However, the execution is stopped by the user’s input.
In most cases, it is indicated when an error occurred.
10-15
Optimization
10.7. Optimization Result
When the Optimizer execution is completed, the following dialog box is displayed.
Figure10.7 “Optimization Result” dialog box
This dialog box displays various results so that the optimized status can be viewed at a
glance.
When the <Accept> button is clicked on, this dialog box closes, the Optimizer is ended
and the result is applied to the MMI step program.
When the <Reject> button is clicked on, the result is not applied in the MMI step program.
If necessary, readjust the Optimizer options and execute again.
